ENGLISHen
12
- Use an extraction unit and/or air purifiers.
- Ensure good ventilation of the workplace and
keep clean using a vacuum cleaner. Sweeping or
blowing stirs up dust.
- Vacuum or wash the protective clothing. Do not
blow, beat or brush.
Illustrations are provided at the beginning of the
operating instructions.

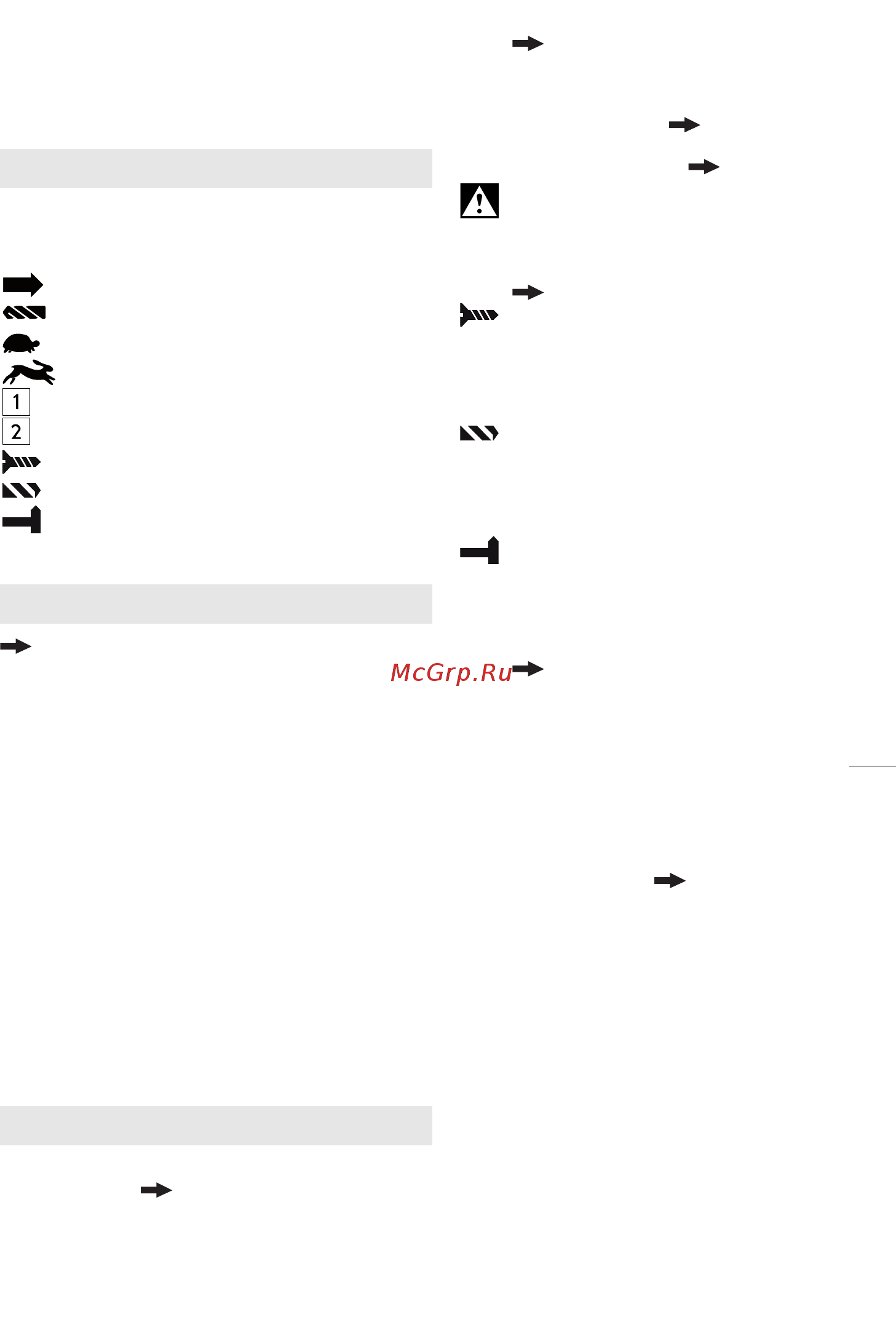

Symbol explanation:
Movement direction
Drill bit
Slow
Fast
First gear
Second gear
Screwdriving / torque limitation
Drilling / max. torque
Impact drilling
Torque
Fig. A
1Keyless chuck
2Adjusting sleeve
(Torque limitation)
3Adjusting sleeve
- Screwdriving / torque limitation
- Drilling / max. torque
- Impact drilling
4 Switch (1st / 2nd gear)
5 Rotation selector switch (rotation setting,
transport lock) - both sides of the machine
6Bit depot *
7Belt hook *
8 Battery pack release button
9 Capacity indicator button
10 Capacity and signal indicator
11 Battery pack
12 LED light
13 Trigger switch
*equipment-specific
7.1 Battery pack, capacity and signal
indicator Fig. B
Charge the battery pack before use.
Recharge the battery pack if performance dimin-
ishes.
The ideal storage temperature is between 10°C and
30°C.
7.2 Removing and inserting the battery pack
Fig. C
7.3 Setting the direction of rotation,
engaging the transporting safety device
(switch-on lock) Fig. D
7.4 Selecting the gear Fig. E
Do not set the switch (4) unless the motor has
stopped completely!
7.5 Setting the torque limitation,
screwdriving, drilling and impact drilling
Fig. F
= Set screwdriving by turning the sleeve
(3)
AND
set the torque (with torque limitation) by
turning the sleeve (2) - intermediate
settings are also possible.
= Set drilling by turning the sleeve (3) (max.
torque, without torque limitation)
To avoid overloading the motor, do not
jam the spindle.
Machines with the designation SB...:
= Set impact drilling by turning the sleeve
(3) (max. torque, without torque limitation)
To avoid overloading the motor, do not
jam the spindle.
7.6 Switching On/Off, setting the speed
Fig. A
Switching on, speed: press the trigger switch (13).
Press in the trigger switch to increase the
rotational speed.
Switching off: release the trigger switch (13). Note:
the noise that the machine makes when it
switches off is due to the design (quick stop)
and has no influence on the function or the
service life of the machine.
7.7 Keyless chuck Fig. G
With a soft tool shank, retightening may be required
after a short drilling period.
Information for machines with the designation
BS 18 LT BL, SB 18 LT BL:
1. The grating sound which may be heard after
opening the chuck is functional and is stopped
by turning the sleeve in the opposite direction.
2. Clamping the tool:
Turn sleeve in direction "GRIP, ZU" until the
noticeable mechanical resistance has been
overcome.
Caution! The tool is not yet clamped! Keep
turning the sleeve (it must "click" when
turning), until it cannot be turned any further -
only now is the tool securely clamped.
Cleaning: from time to time, hold the machine
vertically with the chuck facing downwards and
turn the sleeve fully in the direction "GRIP, ZU"
and then turn fully in the direction
5. Figures
6. Overview
7. Use
Nm
