DKVM-IP16LCD

ENGLISH

Package Contents

If any of these items are missing from your packaging, please contact your reseller.

16-PORT KVM OVER IP SWITCH WITH BUILT-IN CONSOLE

DKVM-IP16LCD

KVM CABLE WITH VGA AND USB (x4)

CONNECT THE DKVM-IP16LCD TO YOUR COMPUTERS

QUICK INSTALLATION GUIDE

POWER ADAPTER

MOUNTING KIT

Installing the DKVM-IP16LCD

A. Attach your USB keyboard connector to the console USB port of the DKVM-IP16LCD.

B. Attach your USB mouse connector to the console USB port of the DKVM-IP16LCD.

C. Attach your monitor's HDB 15 VGA connector to the console port of the DKVM-IP16LCD.

D. Attach the KVM cable (VGA connector) to the VGA port located on the DKVM-IP16LCD.

The following steps below apply to each computer that you are using with your DKVM-IP16LCD.

E. Attach the KVM cable (USB connector) to the USB port located on the back of

your computer case.

F. Attach the KVM cable (VGA connector) to the VGA port located on the back of your computer

case.

Installation of the DKVM-IP16LCD is now complete.

The DKVM-IP16LCD supports hot-plugging. You don't need to turn your computers off before installing

the device.

You can use built-in console (LCD, keyboard, touchpad) or external console to control the

DKVM-IP16LCD.

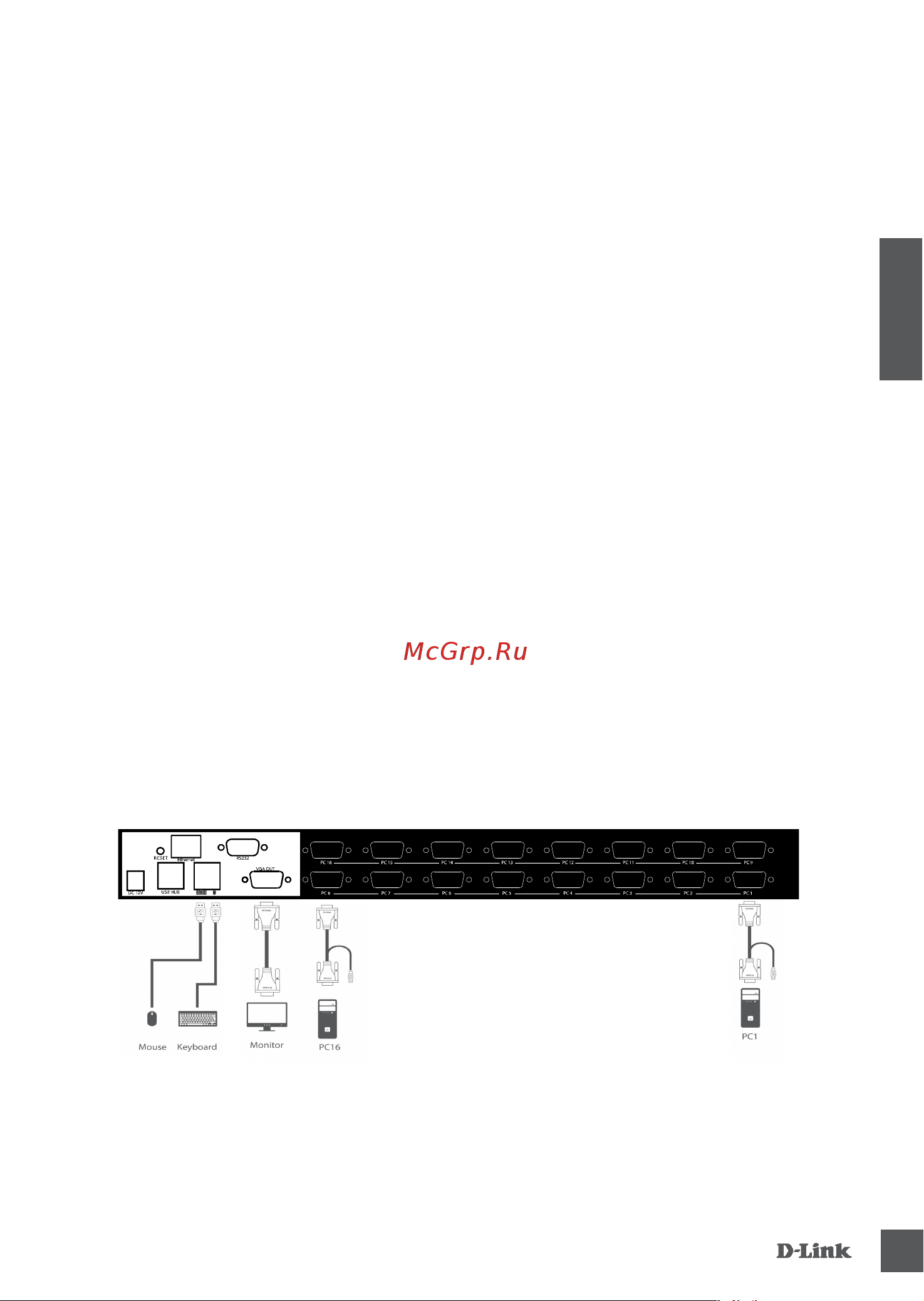

Connecting external console to the DKVM-IP16LCD

In order to use built-in console, please pull the console completely out of the cabinet, open the LCD

screen and press the OSD power switch on the LCD screen.

Mounting the DKVM-IP16LCD in a Rack

The DKVM-IP16LCD can be mounted into a standard 19" rack.

A. Attach the included mounting brackets to the sides of the DKVM-IP16LCD and secure them using

the provided screws.

B. Install the DKVM-IP16LCD into the rack.

C. Use the screws that were provided with the rack to secure the DKVM-IP16LCD to the rack.
