5. Installation
①

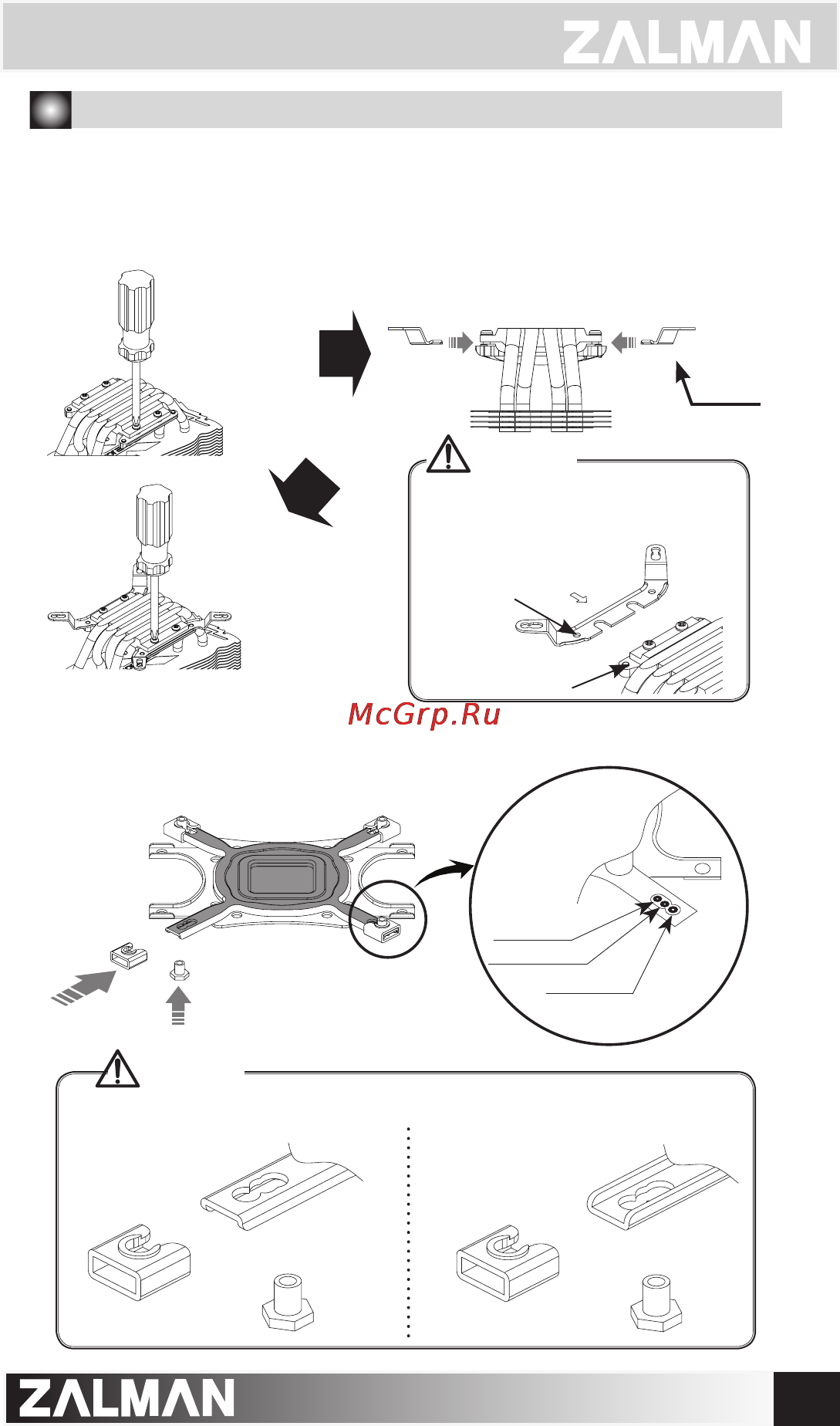

Partially unscrew the four bolts located on the base of the CPU cooler.
Then, insert the Intel Clips between the base and the heatpipe cover, with
the clips bent away from the heatsink.
1)
Intel Socket 1366 / 1155 / 1156 / 775 User
The holes in the Clip (as shown
below) are matched to the “keys” on
the heatpipe cover for secure Clip
installation.
Caution
Intel Clip
Insert
Key
1
2
②
Install the Bolts to the Backplate according to the socket type and
secure them with Side Caps.
Socket 775
Socket 1156/1155
Socket 1366
Take note of the orientation of the Nuts and the Side Caps.
X
O
Caution
