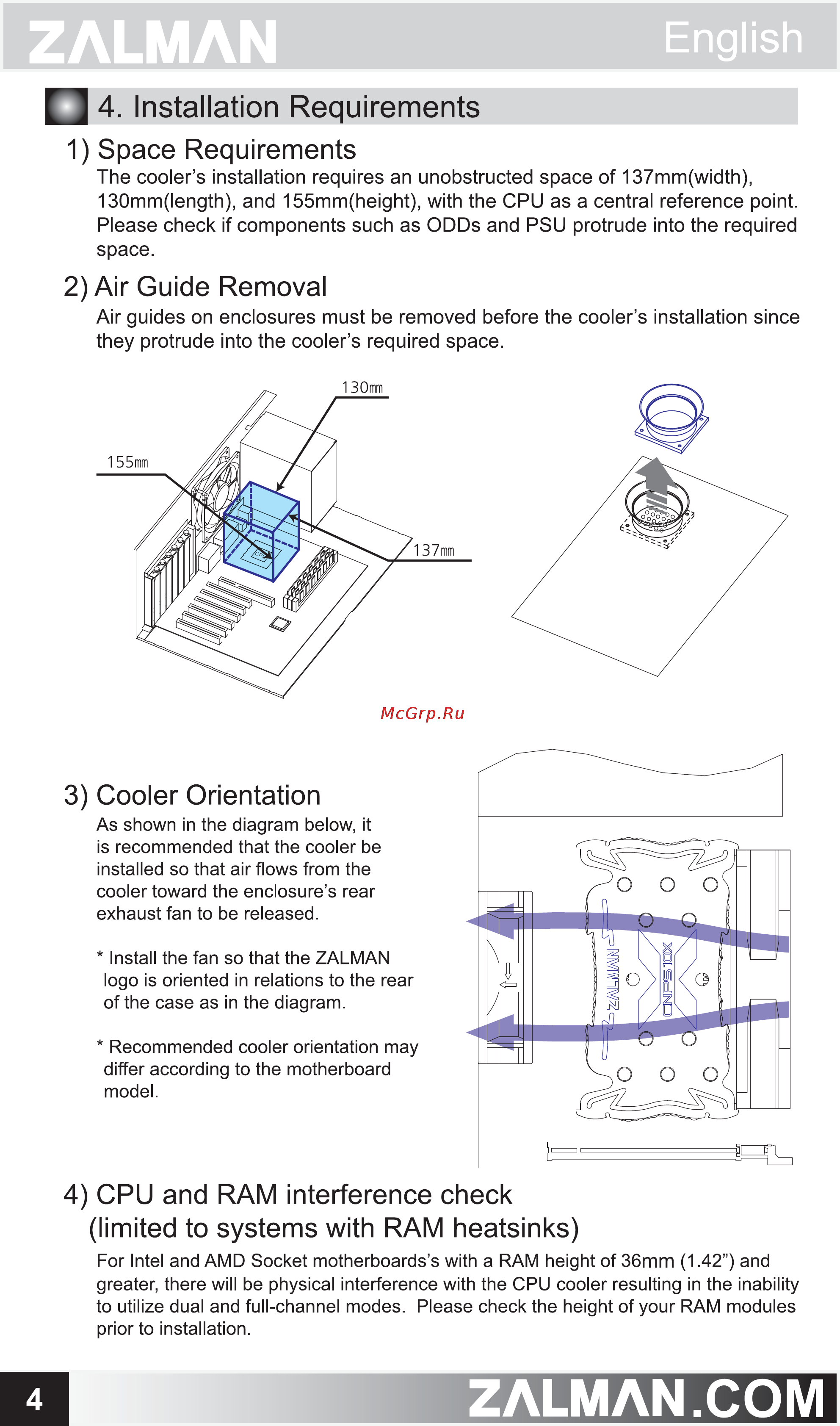

ZALMAN English 4 Installation Requirements 1 Space Requirements The cooler s installation requires an unobstructed space of 137mm width 130mm length and 155mm height with the CPU as a central reference point Please check if components such as ODDs and PSU protrude into the required space 2 Air Guide Removal Air guides on enclosures must be removed before the cooler s installation since they protrude into the cooler s required space 3 Cooler Orientation As shown in the diagram below it is recommended that the cooler be installed so that air flows from the cooler toward the enclosure s rear exhaust fan to be released Install the fan so that the ZALMAN logo is oriented in relations to the rear of the case as in the diagram Recommended cooler orientation may differ according to the motherboard model 4 CPU and RAM interference check limited to systems with RAM heatsinks For Intel and AMD Socket motherboards s with a RAM height of 36mm 1 42 and greater there will be physical interference with the CPU cooler resulting in the inability to utilize dual and full channel modes Please check the height of your RAM modules prior to installation
