3

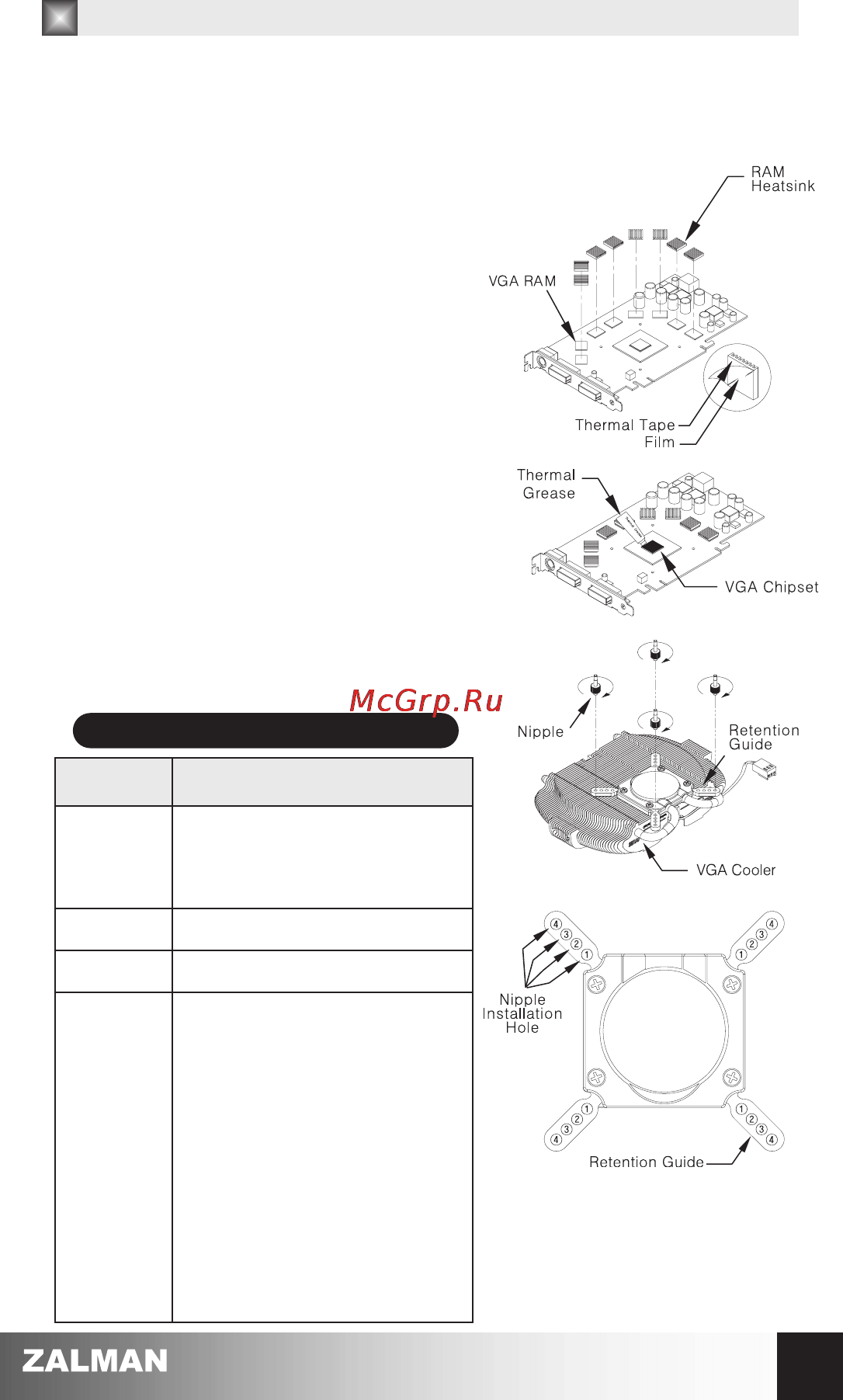

Installation Procedure
1. VGA RAM Heatsink Attachment
Remove the film from the thermal tapes on the bottom of the RAM
Heatsinks and attach the heatsinks on the VGA RAM.
Note 1)
If Thermal Grease or other residue remains on the RAM, the Thermal
Tapes will not stick. Clean the surface of the RAM with acetone or
alcohol before attaching.
Note 2)
The bonding strength of the Thermal Tapes reaches 90% after 24
hours of curing. Do not exert excessive force on the RAM Heatsinks
during this period.
Note 3)
Thermal Tapes are not reusable because they lose adhesiveness after
their initial attachment. Purchase new Thermal Tapes to reattach the
RAM Heatsinks.
2. Thermal Grease Application
Clean the contact surface of the VGA Chipset completely. Apply
Thermal Grease on the VGA Chipset that makes contact with the base
of the VGA Cooler.
3. Nipple Installation on the Retention Guide
Install the short end of the Nipples on the VGA Cooler’s Retention
Guide after determining the appropriate Nipple Installation Holes.
(Note)
The Nipples MUST be tightened by hand. Using tools to tighten the
Nipples may damage the tips of the Nipples.
※ Please check the table below to identify the correct Nipple
Installation Holes for specific models of VGA cards.
NVIDIA GeForce4 TI 4 series
NVIDIA GeForce FX 5700(Ultra) series
NVIDIA GeForce FX 5800 series
NVIDIA GeForce 6600 series
(6600 AGP series exception)
NVIDIA GeForce 6600 series
(6600 AGP series exception)
NVIDIA GeForce FX 5900 series
NVIDIA GeForce FX 5950 series
ATI Radeon HD 4850 series
ATI Radeon HD 4830 series
ATI Radeon HD 3850 series
ATI Radeon HD 2600XT (DDR4) series
ATI Radeon X1800XL series
NVIDIA GeForce 9800GT series
NVIDIA GeForce 9600GT series
NVIDIA GeForce 9600GSO series
NVIDIA GeForce 8800GT series
NVIDIA GeForce 8800GS series
NVIDIA GeForce 8600GTS series
NVIDIA GeForce 8600GT series
NVIDIA GeForce 7950 series(7950GX2 exception)
NVIDIA GeForce 7900 series
NVIDIA GeForce 7800 series(7800GS exception)
NVIDIA GeForce 7600 series
NVIDIA GeForce 6800 series
①
②
③
④
Nipple Installation
Holes
※※
The following installation sequence MUST be followed.
(1. VGA RAM Heatsink Attachment → 2. Thermal Grease Application → 3. Nipple Installation on the Retention Guide
→ 4. VGA Cooler Installation→ 5. Spring Insertion on the Fixing Nut → 6. Fixing Nut Assembly on VGA Cooler’s Nipple
→ 7. VGA Card Installation → 8. Fan Power Cable Connection)
Nipple Installation Holes for Various VGA Cards
VGA Card
