Zalman VF950 LED [5/6] Vga card installation

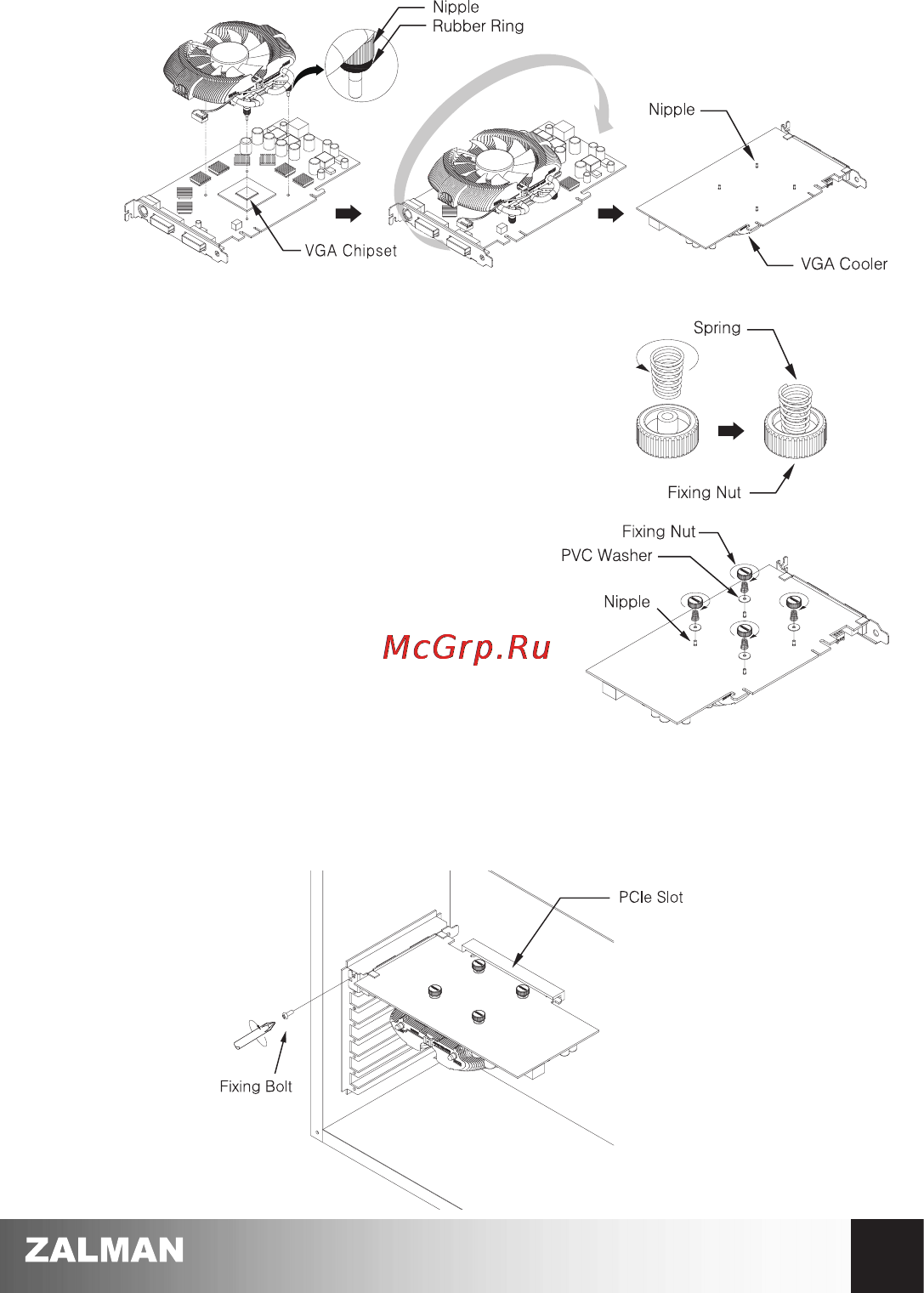

5. Spring Insertion on the Fixing Nut

Slowly turn the Spring in countclockwise motion so that the Spring is

correctly attached to the Fixing Nut.

Note 1)

The ends of the Springs are of different diameters. Install the Spring end

with the shorter diameter on the Fixing Nut.

Note 2)

Make sure that the Spring is installed perpendicularly and not leaning to

one side.

6. Fixing Nut Installation on the Nipples

1) Place a PVC Washer over each Nipple.

2) Slightly screw each of the four Spring-attached-Fixing Nuts onto each

Nipple, then tighten each Fixing Nut one rotation at a time until all are

completely tightened.

Note 1)

Fully tightening one Fixing Nut at a time may result in damaging the

VGA chipset. Please tighten each Fixing Nut one rotation at a time until

all are completely tightened.

Note 2)

Make sure that the VGA Cooler’s base and the VGA Chipset are

completely in contact with each other.

Note 3)

Make sure that the VGA Cooler does not interfere with the VGA card’s capacitors and other components.

7. VGA Card Installation

Insert the assembled VGA card into the motherboard’s PCIe (or AGP) slot. Use the Fixing Bolt to secure the VGA card onto

the computer case. If the VGA card has a power connector on it, remember to plug in the power cable.

4. VGA Cooler Installation

1) Insert the Rubber Rings into the VGA cooler’s Nipple.

2) Install the Nipple-attached VGA cooler on the VGA card’s Mounting Holes.

※ The VGA Chipset MUST be positioned on the center of the VGA Cooler’s base.

3) Simultaneously hold the VGA Cooler and the VGA card with one hand, then flip the VGA card so that its rear-side

is facing upwards.

(Note)

Make sure that the VGA Chipset and the VGA Cooler’s base do not get disconnected while simultaneously

flipping the VGA Cooler and the VGA card.
