Installation Procedure

※※

The following installation sequence MUST be followed.

(1. VGA Card Check → 2. Assembly of FET Heatsink → 3. Removal of the VGA Chipset Guide → 4. Thermal

Grease Application and Removal of the Thermal Tape Film → 5. ZM-RHS88 Installation → 6. Nipple Installation

onto the Retention Guide → 7. VF1000 LED Installation for Geforce 8800 Series VGA Cards → 8. Spring

Insertion onto the Fixing Nuts → 9. Assembly of Fixing Nuts onto the Nipples → 10. ZM-RHS88 Assembly →

11. VGA Card Installation)

1. VGA Card Check

Check your VGA Card and select the FET Heatsink according to the table below.

Note 1) The images in the User’s Manual are based on NVIDIA Geforce 8800 Ultra/GTX.

Note 2) The image is included in the manual to clarify installation of ZM-RHS88. VF1000 LED is to be

purchased seperately.

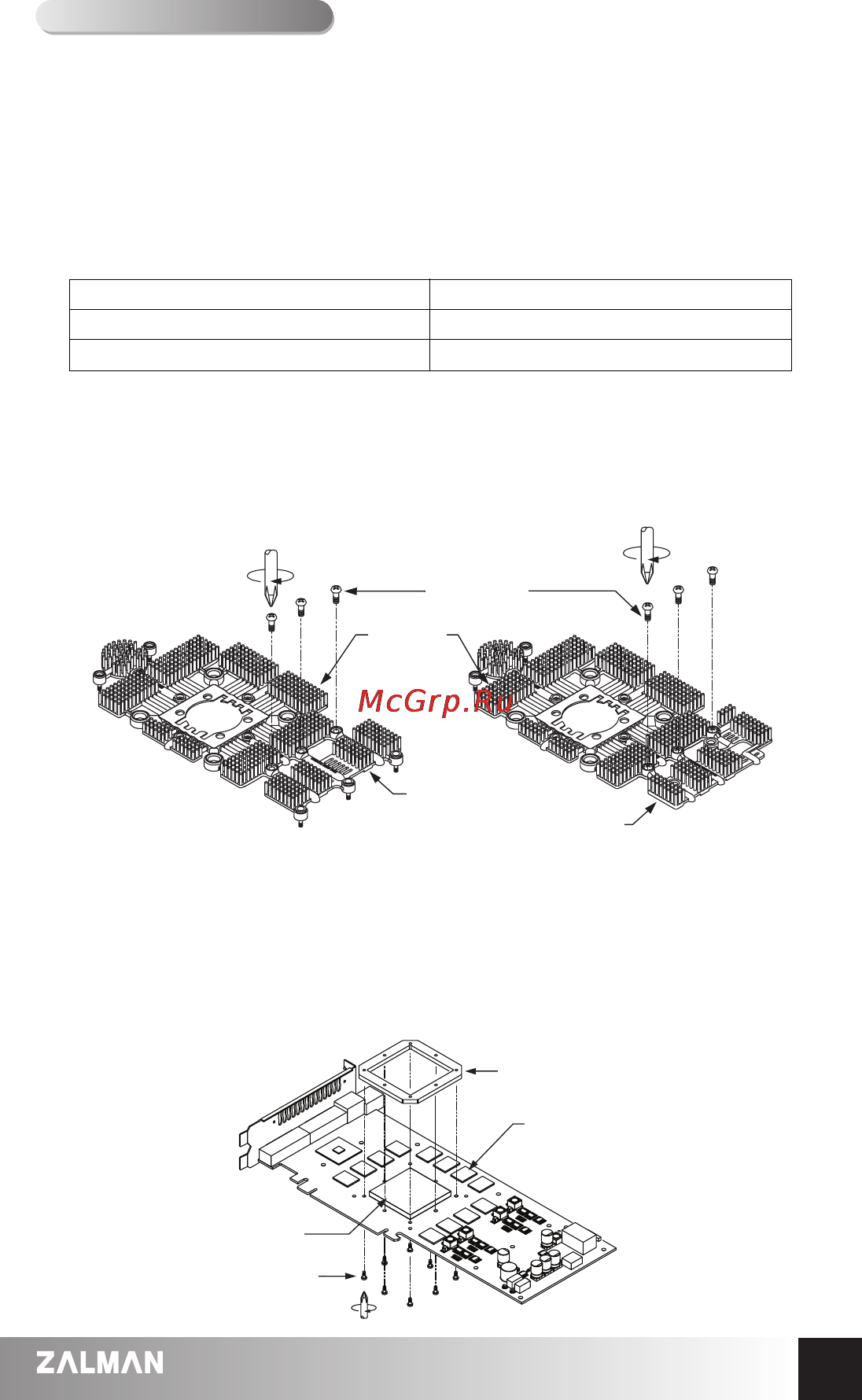

2. Assembly of FET Heatsink

Assemble the FET Heatsink onto the RAM Heatsink with the Fixing Bolts as shown in the diagram.

Note) The VGA card model must be checked before assembling the FET Heatsink.

3. Removal of the VGA Chipset Guide

Unscrew the Fixing Bolts of the VGA Chipset Guide on the rear side of the VGA card to remove the VGA

Chipset Guide.

Note) Removing the VGA Chipset Guide by force could result in damaging the core.

※

The specifications of the product may change without prior notice to improve performance.

VGA Card FET Heatsink

NVIDIA Geforce 8800 Ultra/GTX FET Heatsink A

NVIDIA Geforce 8800 GTS FET Heatsink B

Fixing Bolt

RAM

Heatsink

FET Heatsink A

FET Heatsink B

VGA Chipset Guide

VGA RAM

VGA Chipset

Fixing Bolt
