Zalman ZM-RHS88 [5/8] Thermal grease application and removal of the thermal tape film

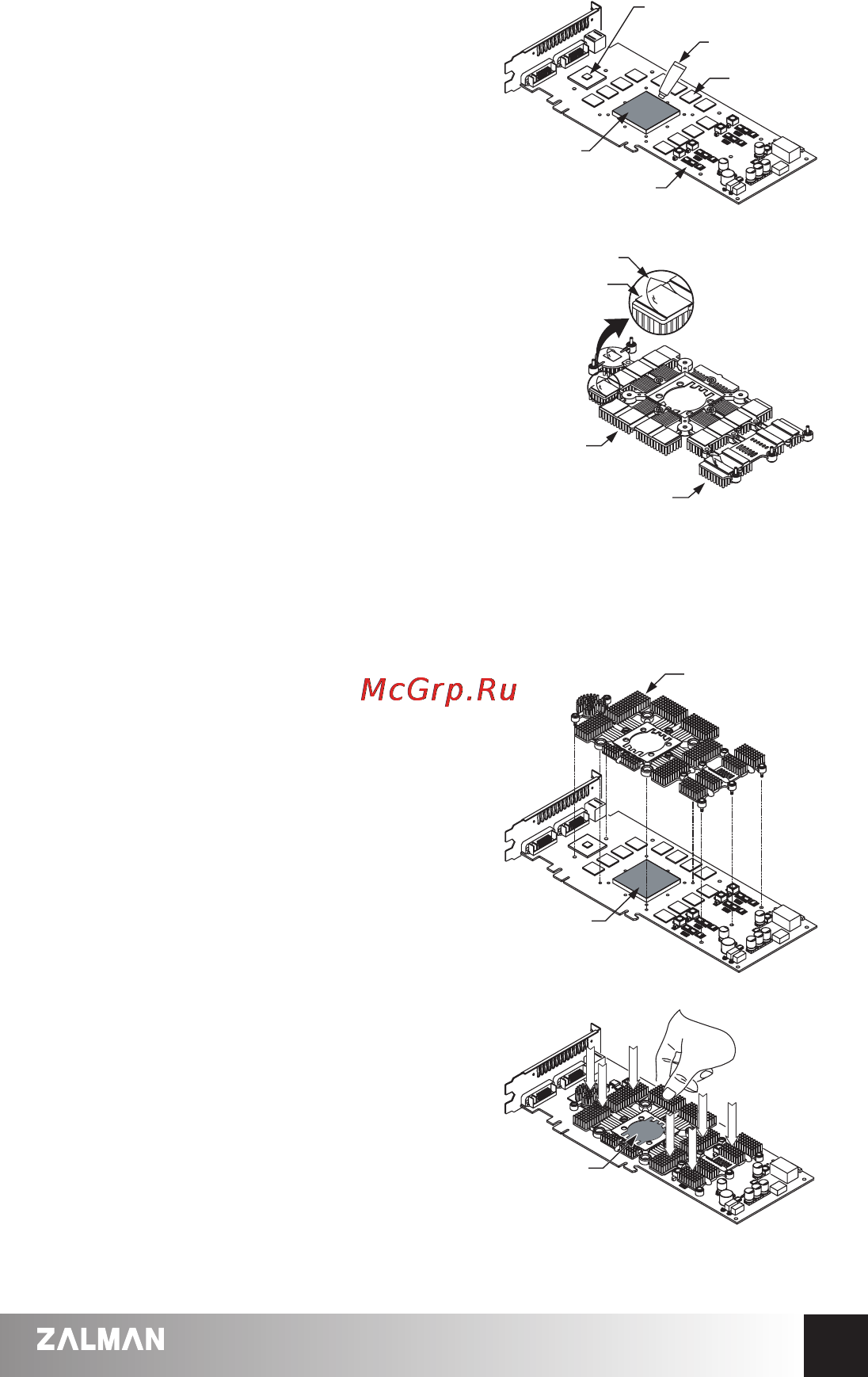

4. Thermal Grease Application and Removal

of the Thermal Tape Film

① Clean the contact surfaces of the VGA Chipset, I/O

Chipset, RAM and FET.

② Apply Thermal Grease on the VGA Chipset.

③ Remove the Film from the Thermal Tapes as shown in

the diagram.

Note 1) If Thermal Grease or other residue remains on the

contact surfaces, the Thermal Tapes will not stick.

Clean the contact surfaces of the VGA Chipset, I/O

Chipset, RAM and FET with acetone or alcohol

before attaching.

Note 2) Thermal Tapes are not reusable because they lose

adhesiveness after their initial attachment. Purchase

new Thermal Tapes when Heatsinks have to be

reattached.

5. ZM-RHS88 Installation

① Assemble the ZM-RHS88 on the VGA card as shown in

the diagram.

② Apply even pressure on the heatsink contact points(I/O

Chipset, RAM, FET) with your hands to ensure proper

contact of the heatsink and the chipset.

Note 1) User must check whether there is any contact

between ZM-RHS88 and the capacitors or other

components of the VGA card.

※

The specifications of the product may change without prior notice to improve performance.

Therm

al Grease

Heatsink

(ZM-RHS88)

VGA Chipset

I/O Chipset

VGA RAM

FET

Film

RAM

Heatsink

FET Heatsink

Thermal

Tape

VGA

Chipset

Thermal Grease
