4-3. Do-it-yourself maintenance

Maintenance and care

AYGO_WE_99E96E

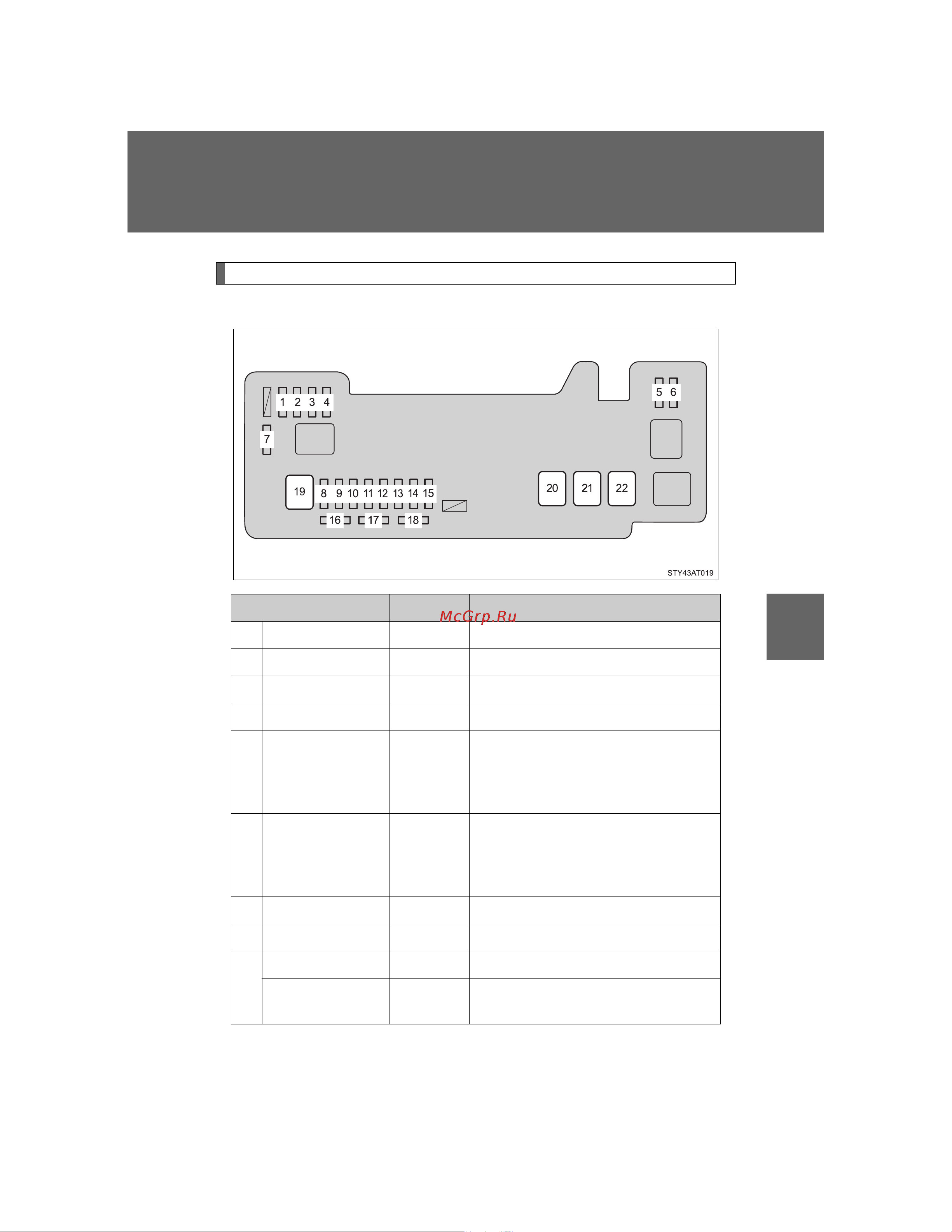

Fuse layout and amperage ratings

Engine compartment (top side)

Fuse Ampere Circuit

1 DRL 5 A Daytime running lights

2 FOG FR 20 A Front fog lights

3 H-LP LH 10 A Left-hand headlights

4 H-LP RH 10 A Right-hand headlights

5STA 7.5 A

Multi-mode manual transmission,

multiport fuel injection system/

sequential multiport fuel injection

system

6 EFI NO.2 7.5 A

Multiport fuel injection system/

sequential multiport fuel injection

system, multi-mode manual trans-

mission

7 MET 5 A Gauges and meters

8 SUB-LP 30 A DRL, FOG FR fuses

ABS NO.2

25 A Anti-lock brake system

VSC NO.2

30 A

Anti-lock brake system and vehicle

stability control system
