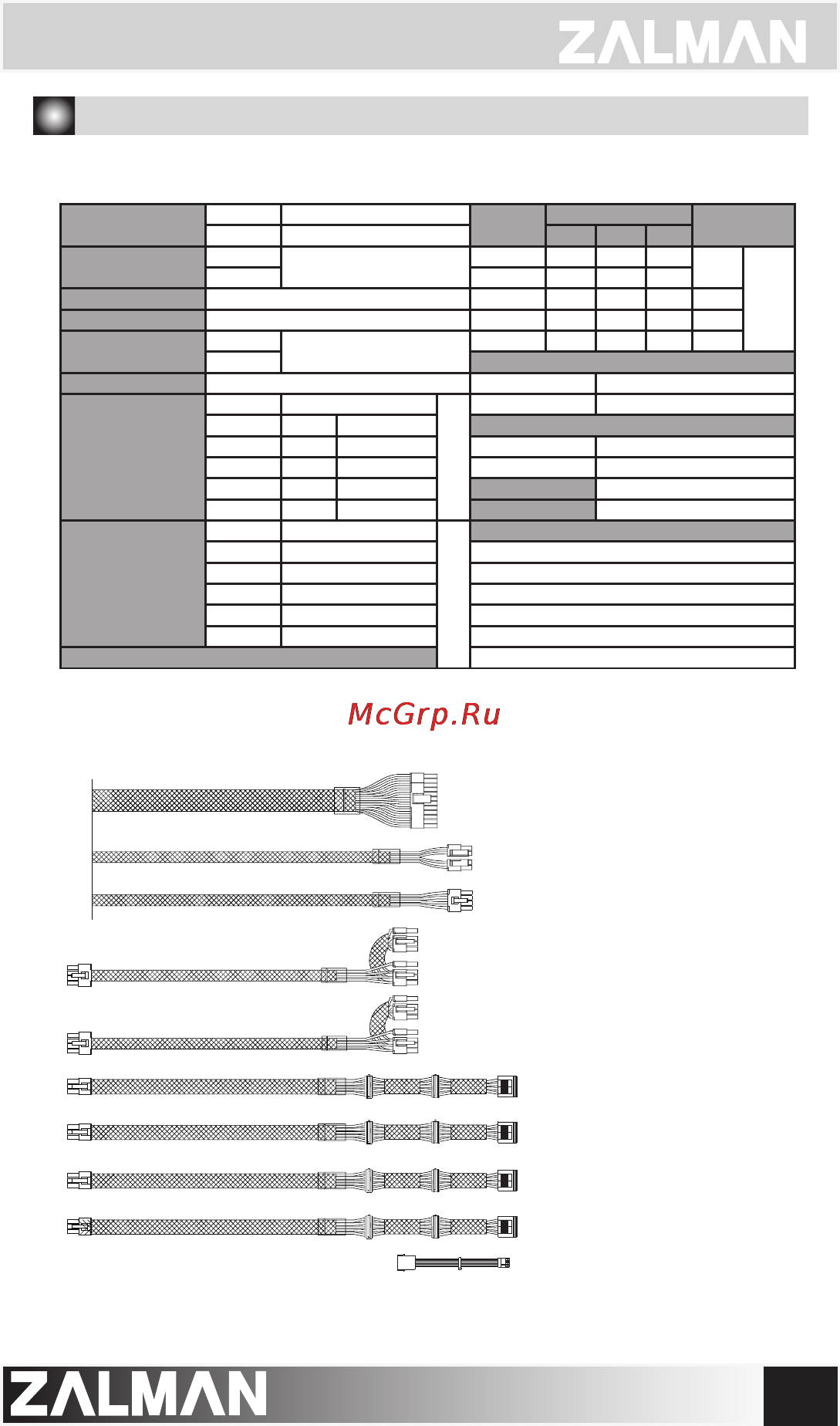

3. Specications
1) ZM850-GVM Electrical & Physical Specications
2) ZM850-GVM Cable Specications
AC Input Range
Voltage 100~240VAC
±10%
Vout
Output Load Rating
Combined
Power
Frequency 50Hz ~ 60㎐
±3 I
min
I
max
I
peak
AC Input Current
100VAC
15A
+3.3V 0.1A 22A
140W
850W
240VAC +5V 0.2A 22A
PFC Type Active PFC +12V 0.1A 70.5A 846W
Power Factor Correction Max 99% -12V 0.0A 0.5A 6W
Inrush Current Limit
(@ Cold Start at 25℃)
100VAC
Max 150A
+5VSB 0.0A 3A 15W
240VAC Ambient Temperature
Eciency Max 88% @ 230VAC, Typical load Operation 0 ~ +45℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 160(L) * 150(W) * 86(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 2.8Kg
DC Output Ripple
& Noise
Vout Standard Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV Over-Current Protection (OCP)
+5VDC 50mV Over-Voltage Protection (OVP)
+12VDC 120mV Under-Voltage Protection (UVP)
-12VDC 120mV Short-Cicuit Protection (SCP)
+5VSB 50mV Over-Power Protection (OPP)
Over-Temperature Protection (OTP)
Mainboard Power Connector
CPU Power 1 Connector
CPU Power 2 Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
S-ATA / ODD Power Connector
FDD Power Connector
PCI Express2 Power Connector
PCI Express1 Power Connector
PCI Express4 Power Connector
PCI Express3 Power Connector
Содержание
- User s manual 1
- Components 2
- Disclaimer zalman tech co ltd is not responsible for any damages due to external causes including but not limited to improper use problems with electrical power accident neglect alteration repair improper installation or improper testing 2
- Warnings and safety precautions 2
- Cpu power 1 connector 3
- Cpu power 2 connector 3
- Fdd power connector 3
- Mainboard power connector 3
- Pci express1 power connector 3
- Pci express2 power connector 3
- Pci express3 power connector 3
- Pci express4 power connector 3
- S ata odd power connector 3
- Specifications 3
- Zm850 gvm cable specifications 3
- Zm850 gvm electrical physical specifications 3
- Cpu power 1 connector 4
- Cpu power 2 connector 4
- Fdd power connector 4
- Mainboard power connector 4
- Pci express 1 power connector 4
- Pci express 2 power connector 4
- Pci express3 power connector 4
- Pci express4 power connector 4
- Pci express5 power connector 4
- Pci express6 power connector 4
- S ata odd power connector 4
- Specifications 4
- Zm1000 gvm cable specifications 4
- Zm1000 gvm electrical physical specifications 4
