Zalman ZM-GWB8800GT/GTS [10/13] English

English

※

The specifications of any product may change without prior notice to improve performance.

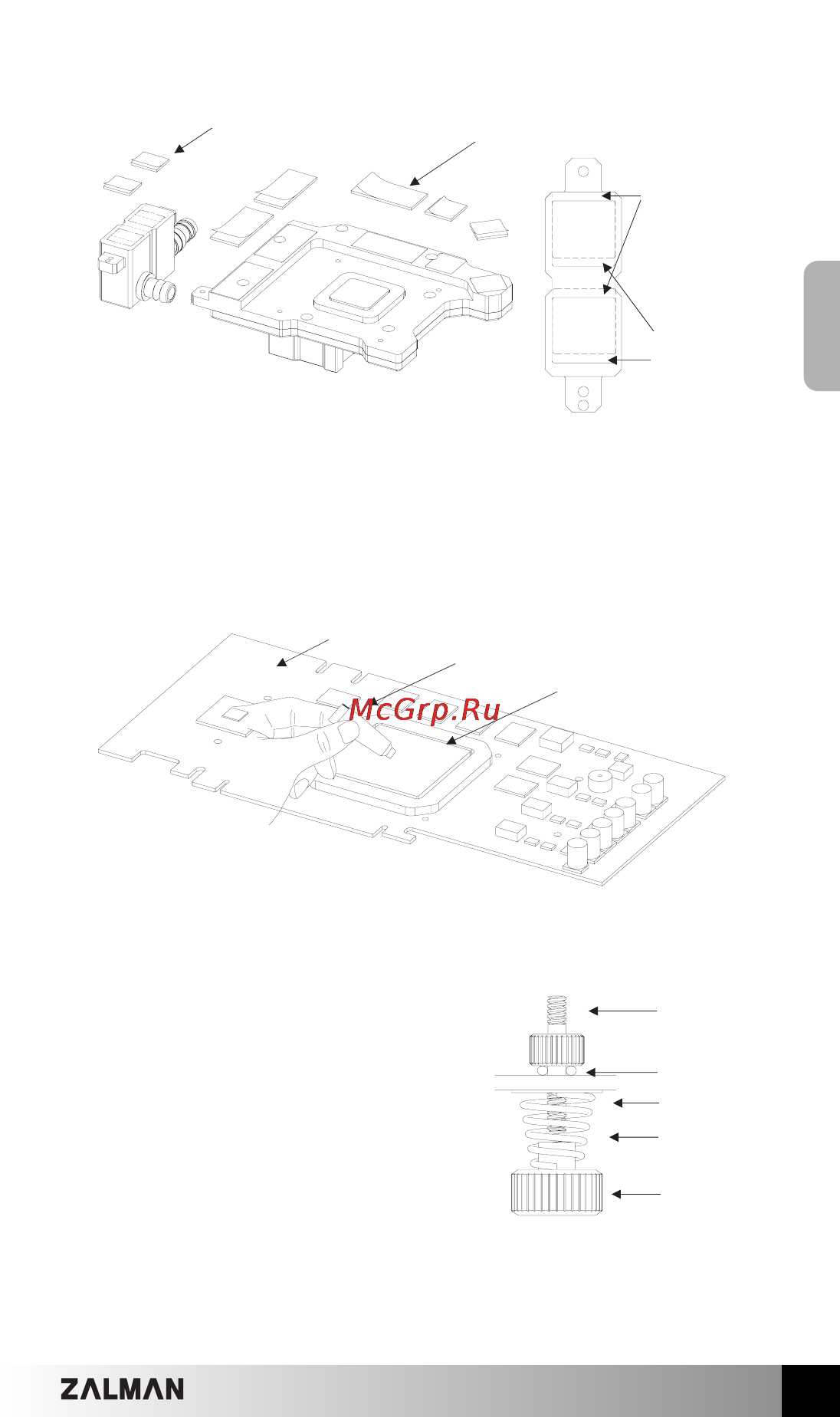

3) Thermal Grease Application

Evenly apply the Thermal Grease on the GPU surface that comes in contact

with the VGA Water Block.

Thermal Pad (for FET)

Radeon HD

3870 Thermal

PAD Outline

Radeon HD

3850 Thermal

PAD Outline

Thermal Pad (for RAM)

VGA Card

Thermal Grease

GPU

4) VGA Water Block Installation

①

Insert the O-ring into the Nipple.

②

Insert the Nipples installed on the

VGA Water Block into the Mounting

Holes after aligning them.

③

Install the PVC Washers, Springs,

and Nuts on the back side of the

VGA card in the mentioned order.

Nipple

O-Ring

PVC Washer

Spring

Nut
