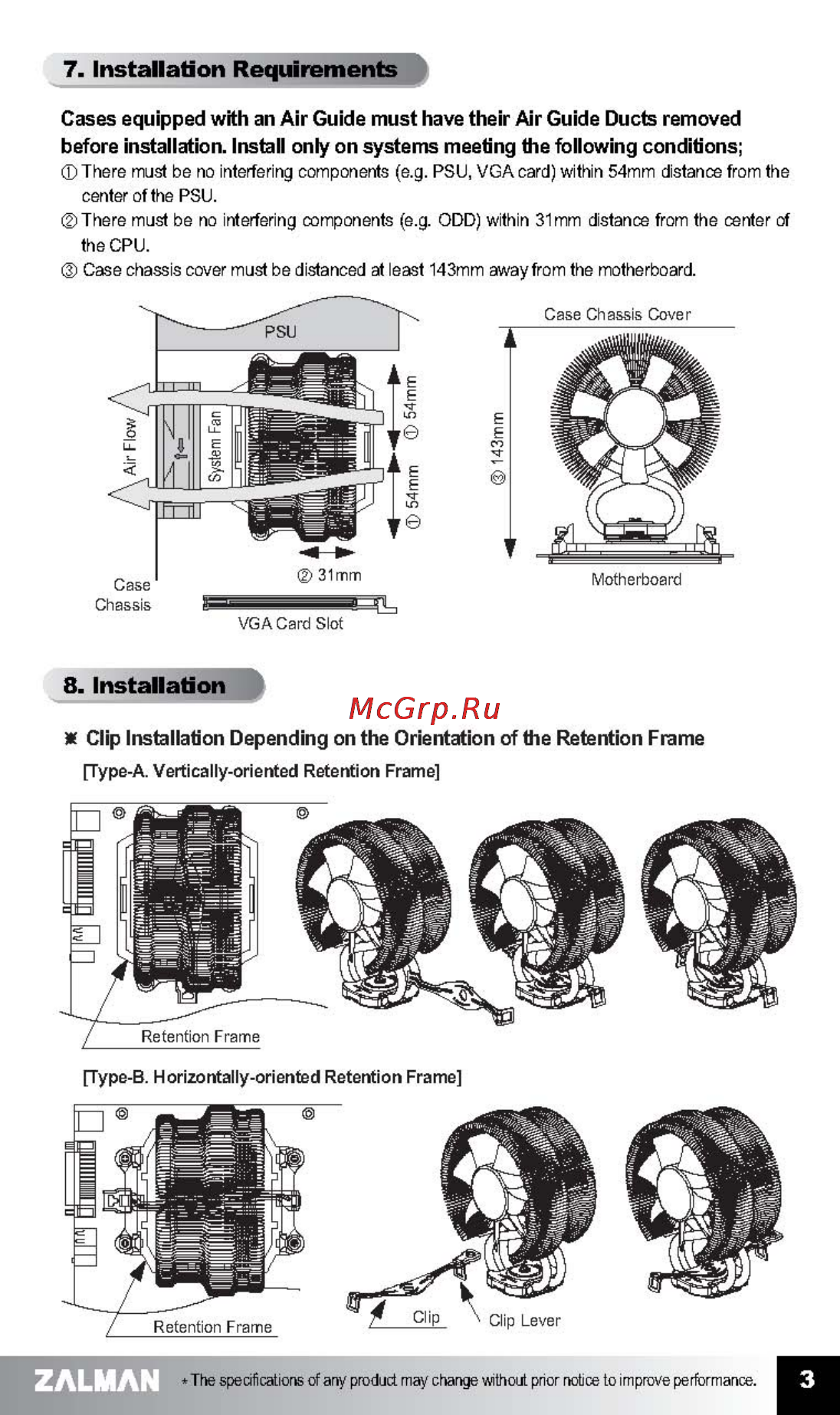

7 Installation Requirements Cases equipped with an Air Guide must have their Air Guide Ducts removed before installation Install only on systems meeting the following conditions There must be no interfering components e g PSU VGA card within 54mm distance from the center of the PSU There must be no interfering components e g ODD within 31mm distance from the center of the CPU Case chassis cover must be distanced at least 143mm away from the motherboard Case Chassis Cover Motherboard VGA Card Slot 8 Installation Clip Installation Depending on the Orientation of the Retention Frame Type A Vertically oriented Retention Frame Type B Horizontally oriented Retention Frame
