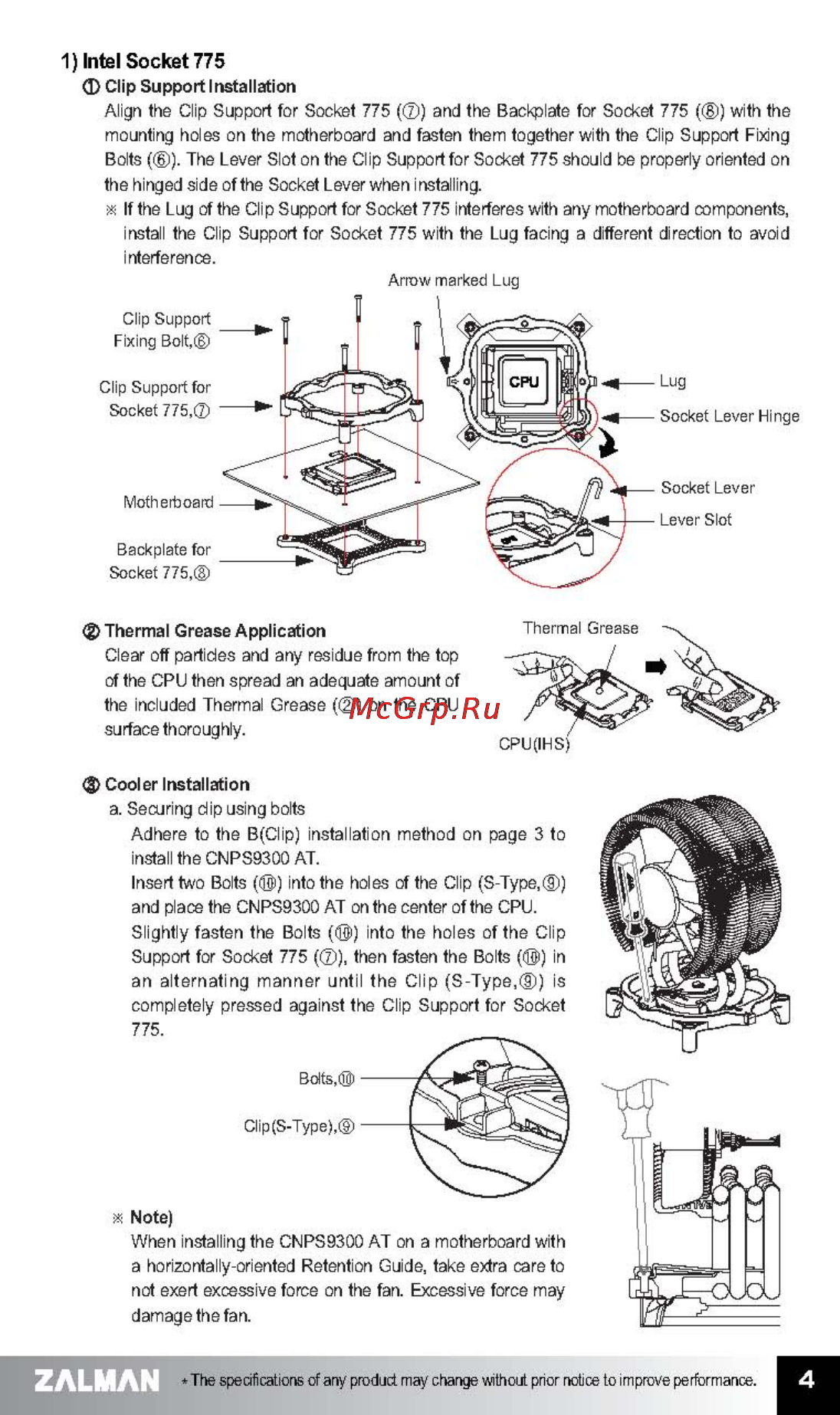

1 Intel Socket 775 Clip Support Installation Align the Clip Support for Socket 775 and the Backplate for Socket 775 with the mounting holes on the motherboard and fasten them together with the Clip Support Fixing Bolts The Lever Slot on the Clip Support for Socket 775 should be properly oriented on the hinged side of the Socket Lever when installing JS If the Lug of the Clip Support for Socket 775 interferes with any motherboard components install the Clip Support for Socket 775 with the Lug facing a different direction to avoid interference Thermal Grease Application Clear off particles and any residue from the top of the CPU then spread an adequate amount of the included Thermal Grease on the CPU surface thoroughly CPU IHS Cooler Installation a Securing dip using bolts Adhere to the B Clip installation method on page 3 to install the CNPS9300 AT Insert two Bolts into the holes of the Clip S Type and place the CNPS9300 AT on the center of the CPU Slightly fasten the Bolts into the holes of the Clip Support for Socket 775 then fasten the Bolts in an alternating manner until the Clip S Type is completely pressed against the Clip Support for Socket 775 is Note When installing the CNPS9300 AT on a motherboard with a horizontally oriented Retention Guide take extra care to not exert excessive force on the fan Excessive force may damage the fan ZALMAN The specifications of any product may change without prior notice to improve performance 4
