Zalman CNPS9900 LED [7/9] Warning
![Zalman CNPS9900 LED [7/9] Warning](/views2/1111551/page7/bg7.png)
6
.COM
④

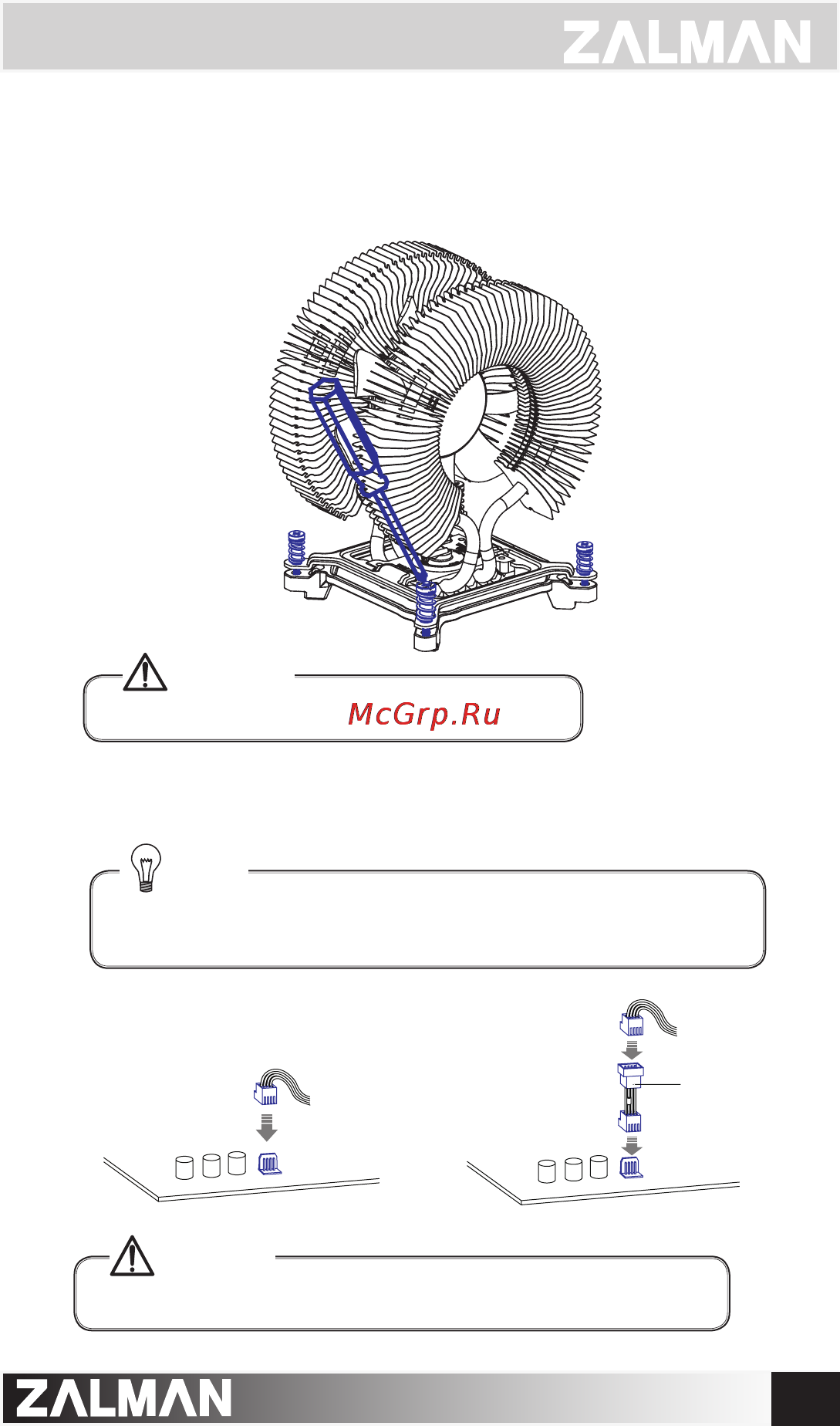

Making sure that the cooler and the clip are centered, securely fasten
the clip by tightening the Intel Socket 1156/755 or Socket 1366 Clip
Fixing Bolts. Please tighten each Fixing Bolt one rotation at a time until
all are completely tightened.
⑤
Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan
header.
M/B
M/B
RC33P
TheResistorCable(RC33P)isprovidedforusersseekingultraquiet
operation. Connecting the Resistor Cable as shown in the diagram will set
the cooler in Quiet Mode.
Tip
After installation, PWM Control Mode must be activated in the
motherboard’s BIOS.
Warning
MakesuretheClipiscenteredforushinstallation.
Warning
