Zalman CNPS7700-AlCu LED [6/8] Amd sockets 754 939 940 installation
![Zalman CNPS7700-Cu [6/8] Amd sockets 754 939 940 installation](/views2/1111599/page6/bg6.png)
5
.COM
2) AMD Sockets 754 / 939 / 940 Installation

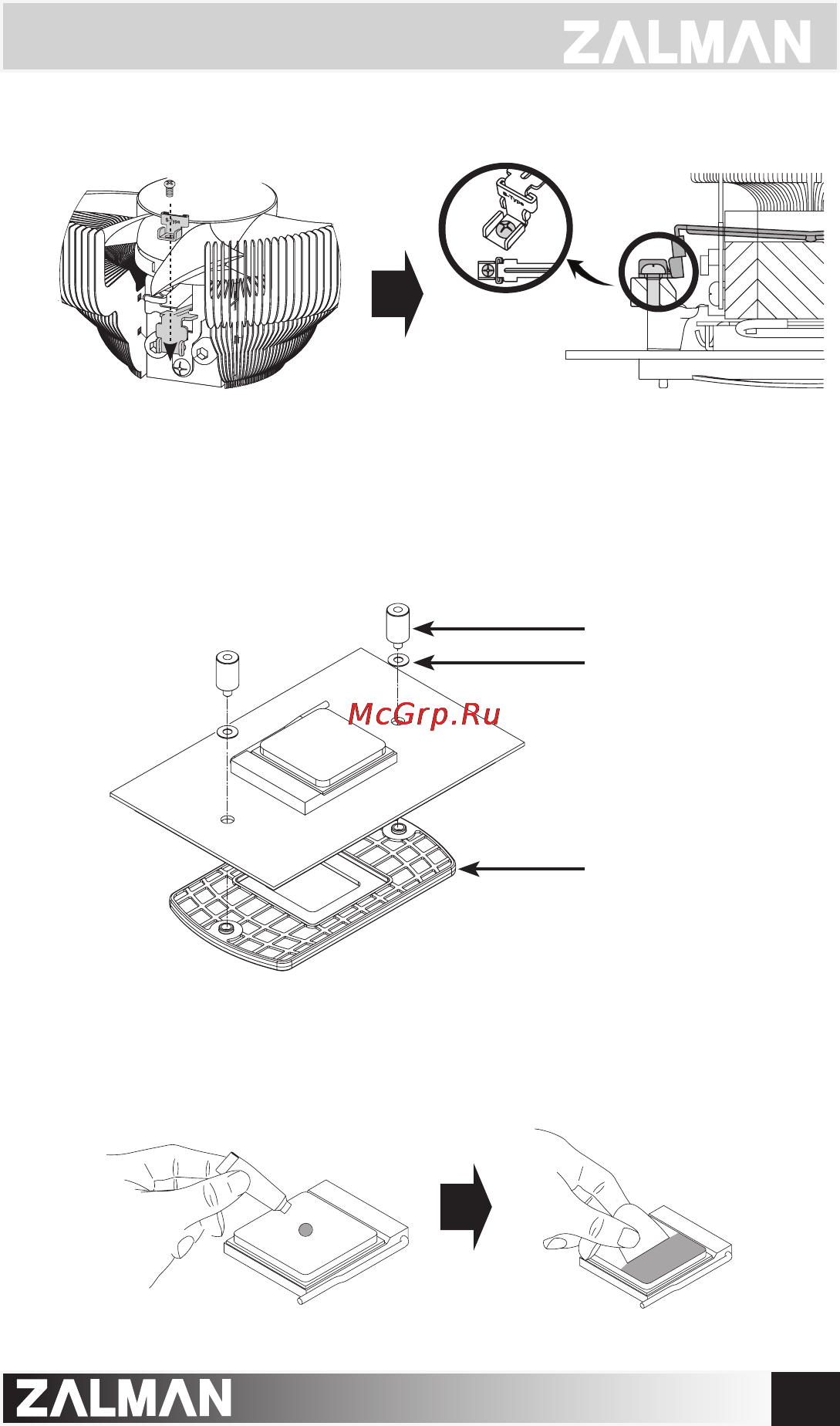

③ Install the S-Type Grips to both sides of the Clip and fasten Bolts through
the holes of the Grips onto the Clip Support.
① Install the AMD Backplate to the motherboard using Washers and
Backplate Fixing Bolts.
Backplate Fixing Bolt
Washer
AMD Backplate
M/B
② Clear off any particles or residue from the CPU’s surface then spread
a thorough layer of Thermal Grease on the CPU and the base of the
cooler.
