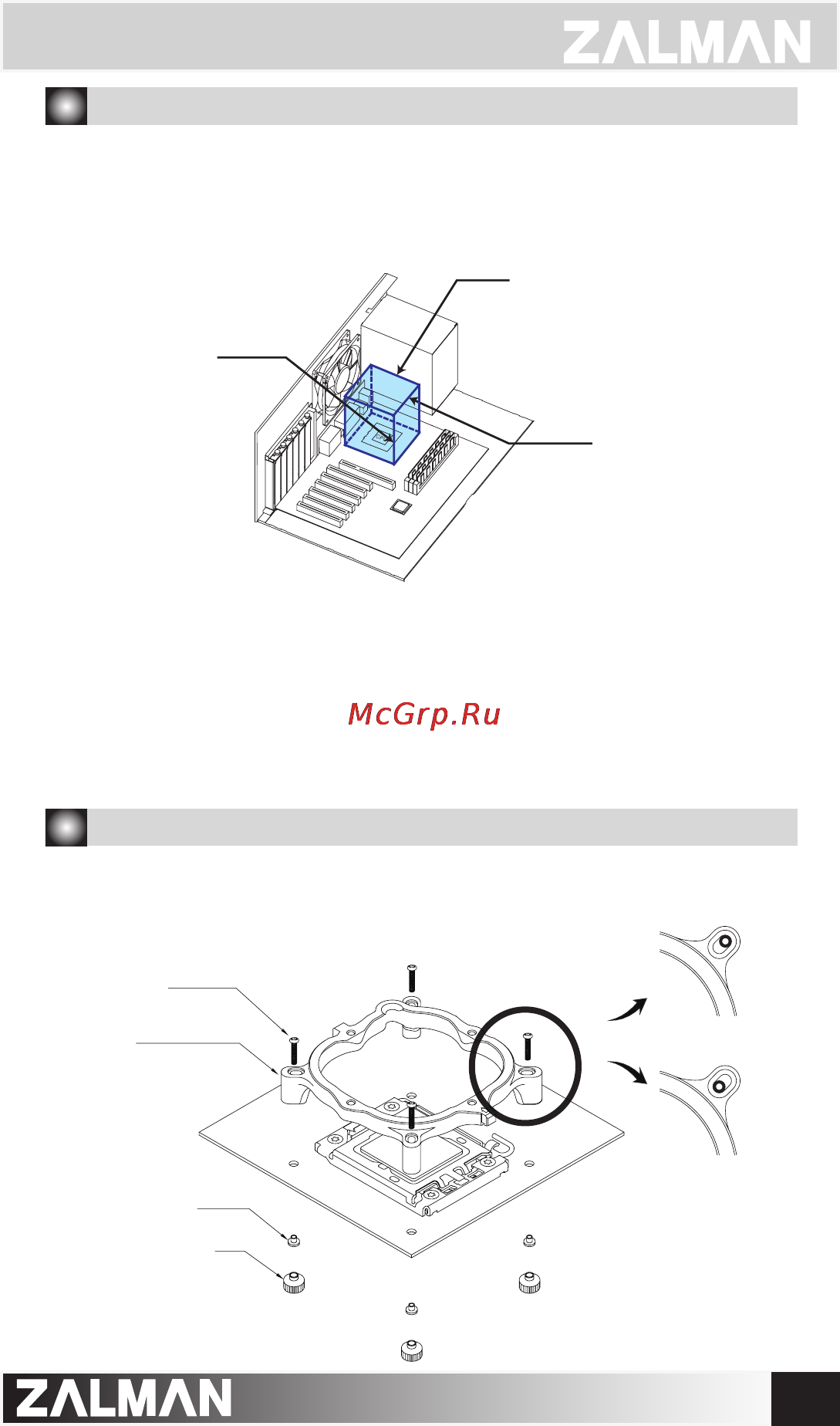

4. Installation Requirements
1) Space Requirements
The cooler’s installation requires unobstructed space with dimensions of
123㎜(width), 126㎜(height), 70㎜(depth), and the CPU as a central
reference point. Please check if components such as ODDs and PSU protrude
into the required space.
2) Compatible CPUs
① Intel Socket 1155 / 1156 / 775 CPUs
② AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 CPUs
123㎜
70㎜
126㎜
1) Intel Socket Installation
① Install the Clip Support to the motherboard according to the socket-type.
5. Installation
Nut
Washer
Bolt(silver)
Clip Support
M/B
Socket 1155 / 1156
Socket 775
3) (For heatsink-installed RAM users) Check for physical
interference between the RAM and CPU
For users of Intel and AMD motherboards, please check the RAM’s height before
installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU
cooler and RAM may prevent the use of Dual/Full-Channel Mode.
