Zalman CNPS8700 LED [6/9] Amd socket am3 am2 am2 754 939 940 installation
![Zalman CNPS8700 LED [6/9] Amd socket am3 am2 am2 754 939 940 installation](/views2/1111623/page6/bg6.png)
5
.COM

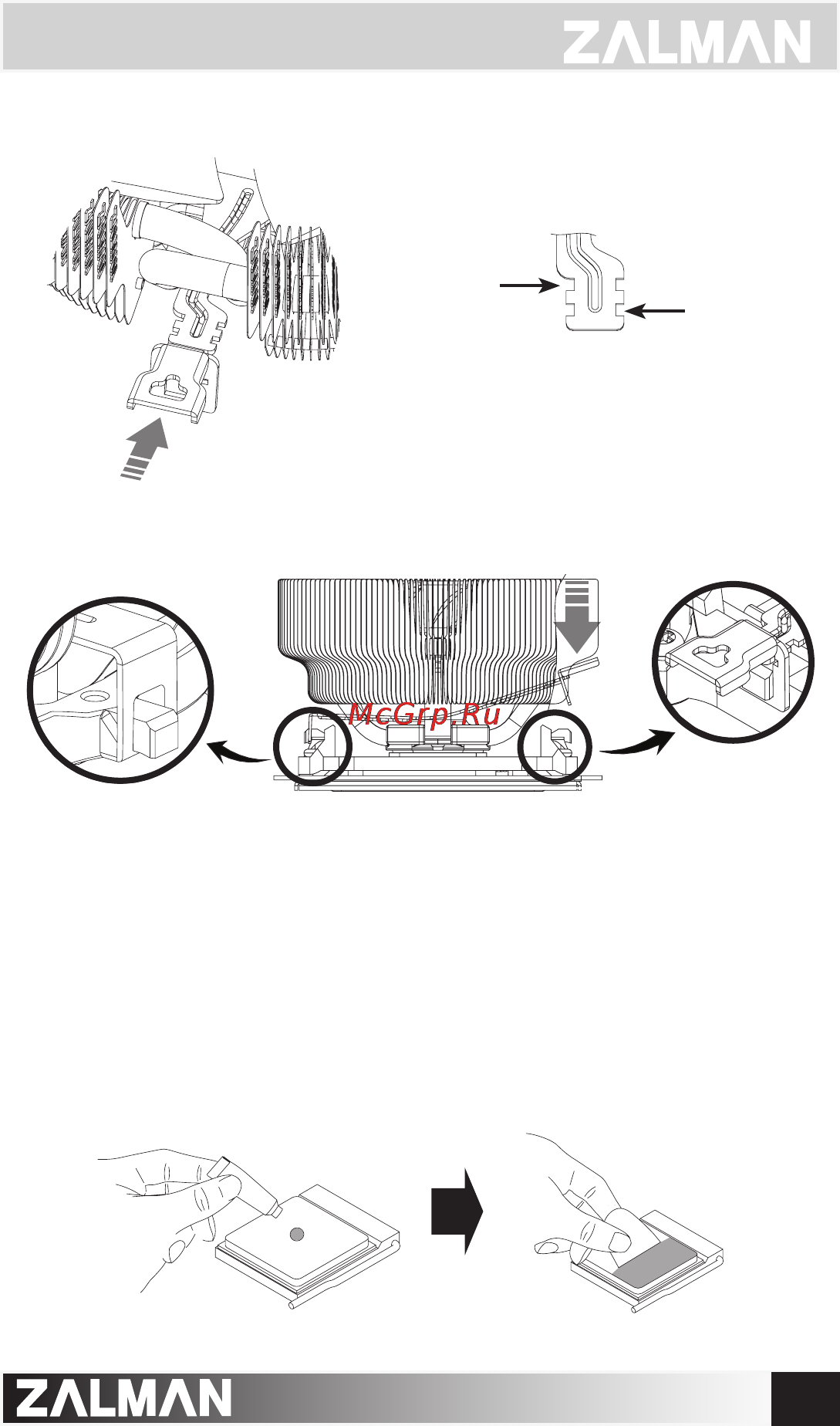

④ Align and insert the Clip Lever onto the Clip’s Intel slot.
⑥ Refer to section ‘6. Fan Mate 2 Installation and Usage’ for instructions
on power connection.
① Clear off any particles or residue from the CPU’s surface then spread
a thorough layer of Thermal Grease on the CPU and the base of the
cooler.
2) AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 Installation
Intel slot
AMD slot
⑤ Hook the opposite end of the Clip to the Lug first, then press down on
the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
