HD160 Plus

(5) Connecting the Cables

1) Power and Data Transmission Cables

Connect the Power and Data Transmission Cables (IDE or SATA) required for the HDD,

ODD, FDD, VGA etc.

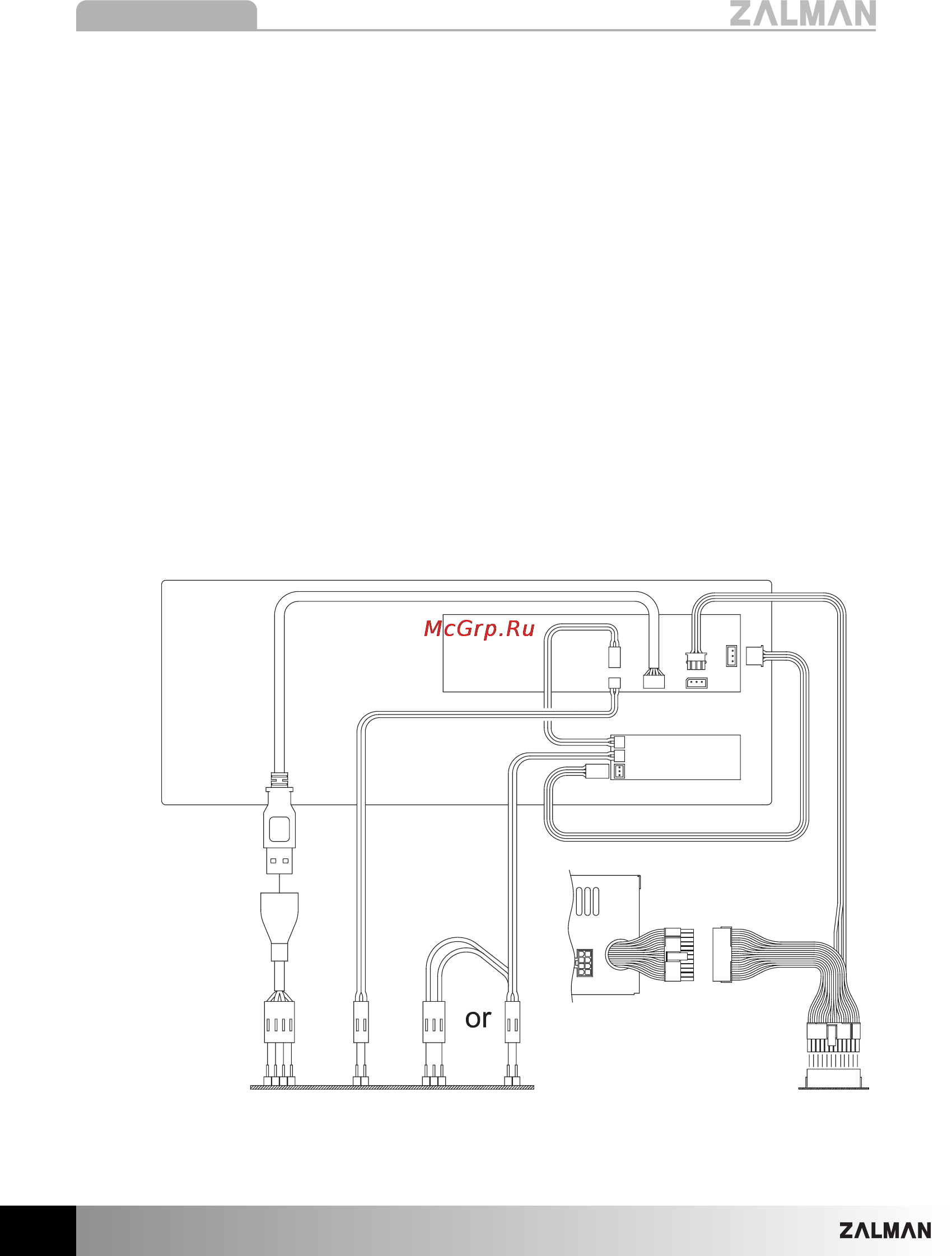

2) LCD PCB Cable

① Connect the Power LED Cable (2-Pin or 3-Pin) to the motherboard’s Front Panel Port

(refer to the motherboard’s manual).

② Connect the USB Cable that is connected to the USB Cable of the LCD PCB to the

motherboard’s USB Port.

③ Connect the System Power Switch Cable (2-Pin) with the motherboard’s Front Panel

Port (Refer to the motherboard’s manual).

④ Connect the Standby Power Cable (20-Pin or 24-Pin) to the motherboard and power

supply.

②③ ① ④
