7
English
The design and specifications of this product may change without prior notice to enhance its quality.
HD160 Plus
5
Installation Guide

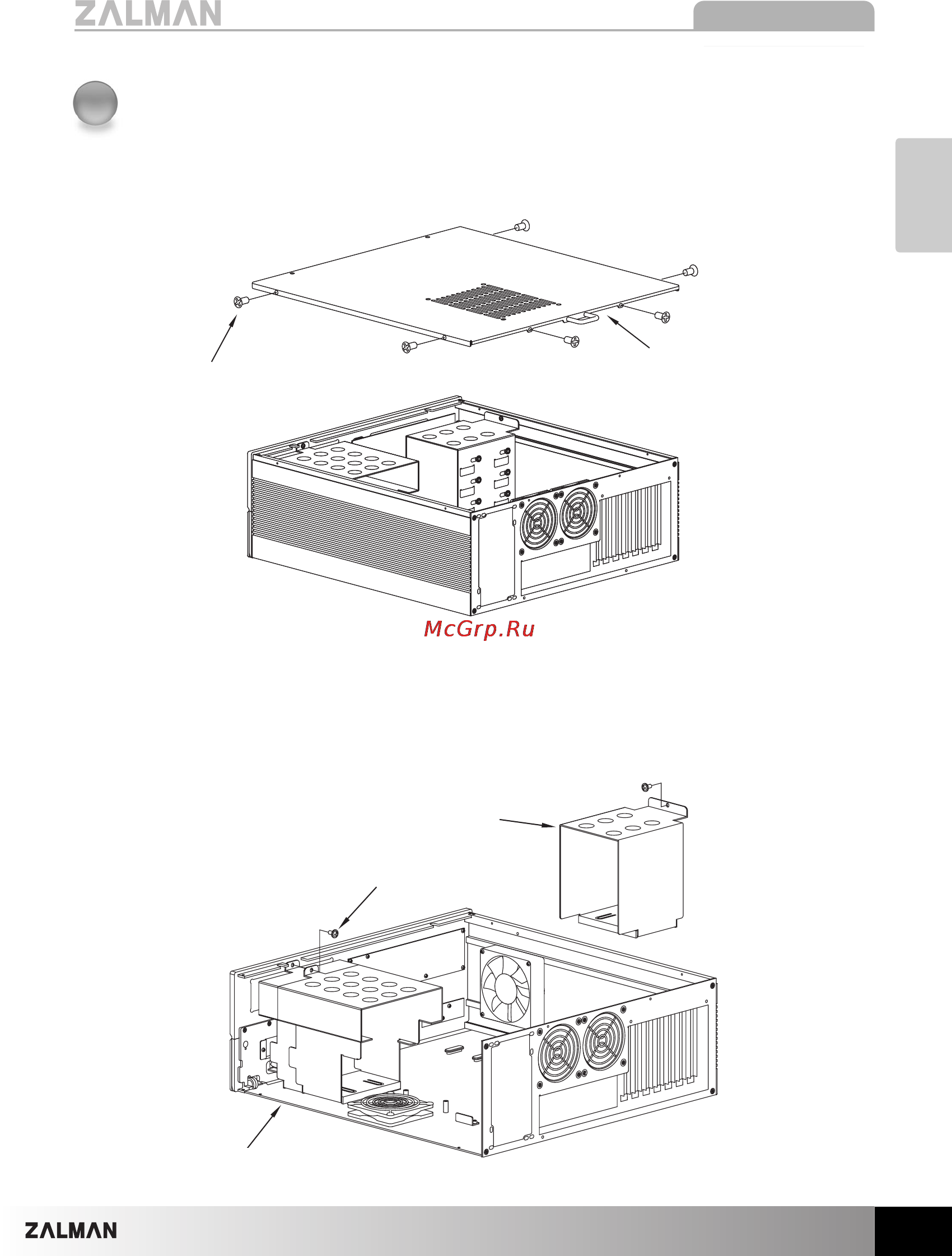

(1) Opening the Enclosure
To remove the Top Panel of the enclosure, unscrew the six Bolts (FH M3x6).
(2) Removing the ODD and HDD Chassis
Remove the Bolts (PWH M4x5), and horizontally pull the ODD and HDD Chassis
approximately 15mm (0.6inch) away from the Front and Side Panels, then lift them
out of the enclosure.
Bolt (FH M3x6)
Top Panel
HDD Chassis
Bolt (PH M4x5)
ODD Chassis
