Buffalo WZR-HP-AG300H [105/176] Disk management

WZR-HP-AG300H User Manual 70

Chapter 4 Conguration

NAS

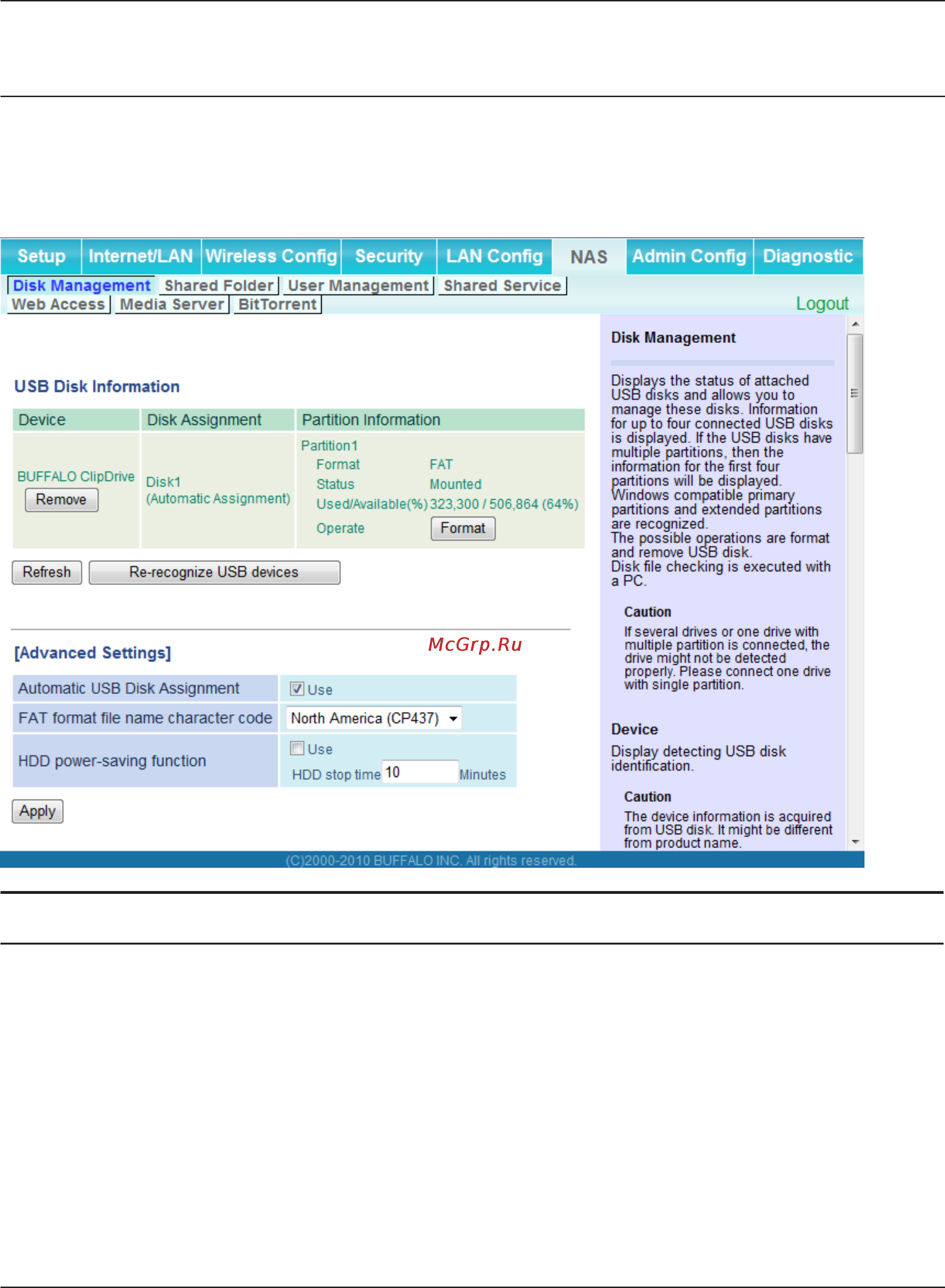

Disk management

View the status of and congure attached USB hard disks.

Parameter Meaning

Device Displays information for attached USB disks. Disks are removed

when [Remove] in the Device column is clicked.

Disk Assignment A disk number will be automatically assigned to the disk or you can

choose a number. Select a disk number, or select [Do not assign],

then click [Apply].

Partition Information Displays the partition information for the selected USB disk. Click

[Format] to format the disk. Note: formatting a disk will erase all

information on it.

Re-recognize USB devices Click this to re-scan for connected USB disks.
