Buffalo WZR-HP-AG300H [114/176] Bittorrent

Chapter 4 Conguration

WZR-HP-AG300H User Manual 79

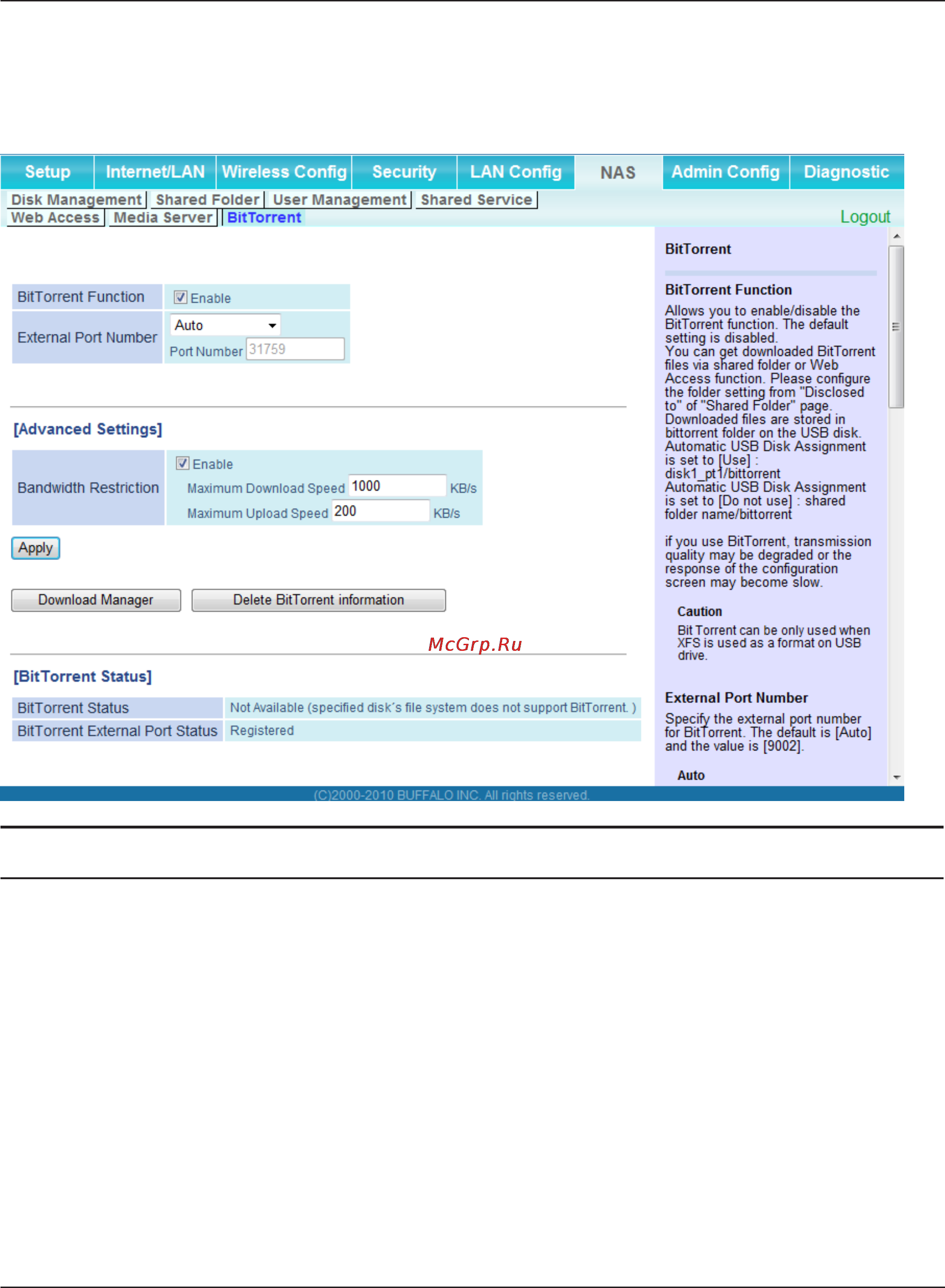

BitTorrent

Congure the BitTorrent client.

Parameter Meaning

BitTorrent Function Enable to use the BitTorrent client. If the BitTorrent client is

enabled, overall communication performance may decrease and

settings screens may respond slower. If that happens, reformat the

USB disk with XFS. That may help performance.

External Port Number Select an external port number.
