Chapter 3 Connect to a Wireless Network

WLI-UC-GNM User Manual 23

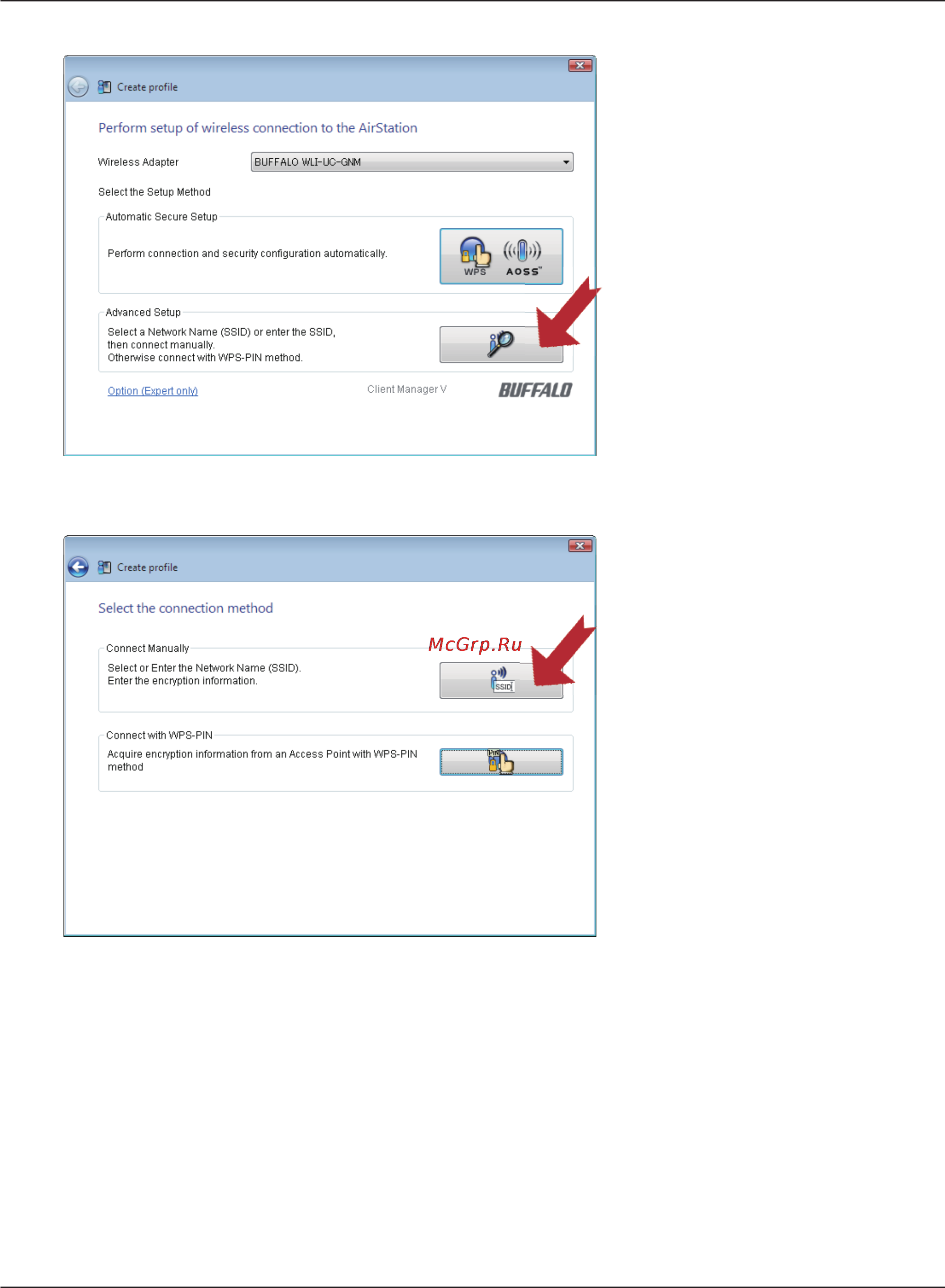

Click the [Advanced Setup]

button.

Click the [Connect Manually]

button.
