Buffalo WLI-UC-GNM [42/81] Profile list

Chapter 4 Client Manager

WLI-UC-GNM User Manual 41

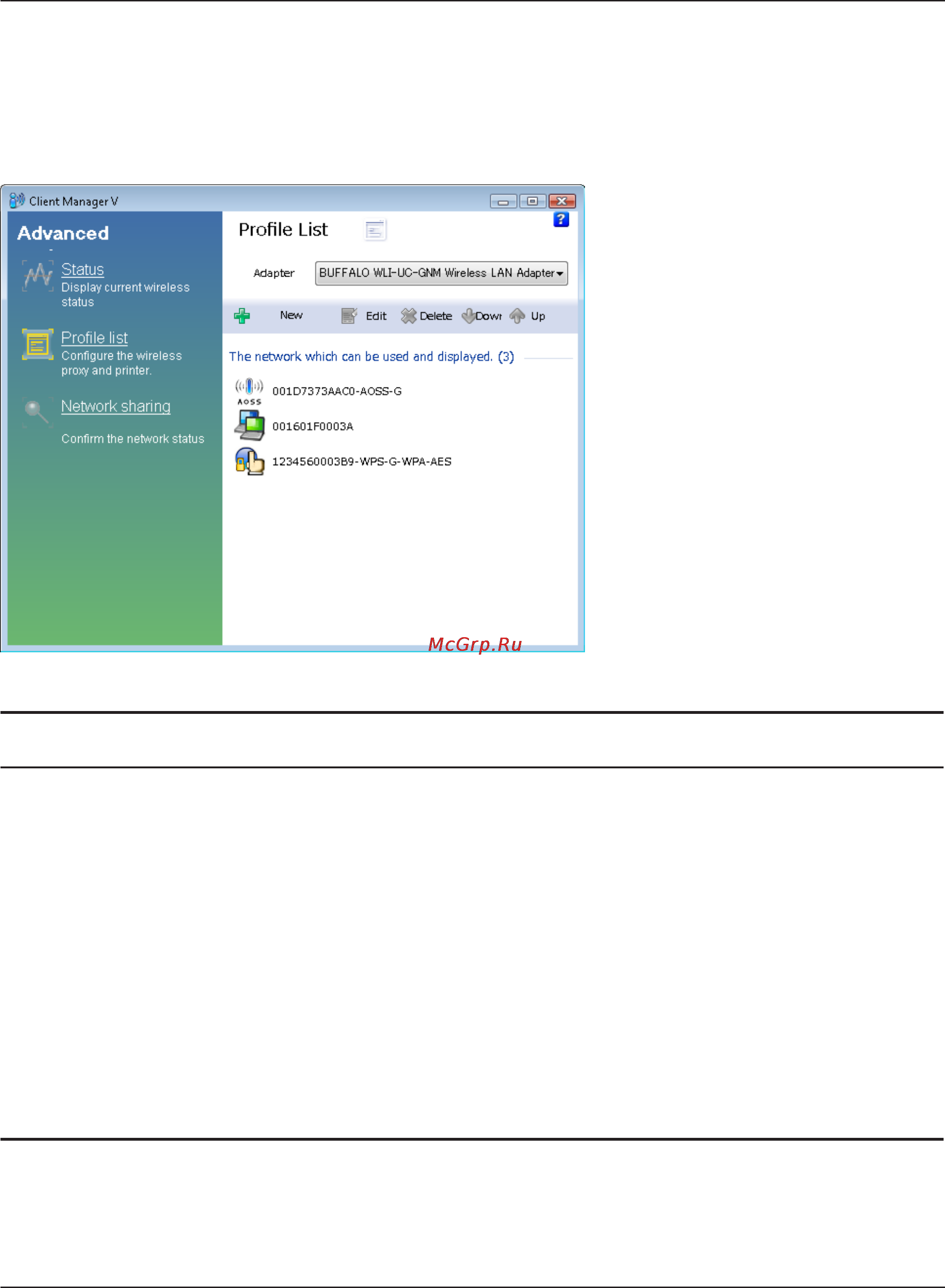

Prole List

Create a new prole or edit an existing prole.

Parameter Meaning

Adapter Displays the name of the current wireless client.

New Create a new prole. This displays the Automatic Secure Setup and

Advanced Setup screen.

Edit Edit the selected prole. This displays the Extended properties

(Wireless) screen.

Delete Delete the selected prole.

Down Lower the priority of the selected prole.

Up Raise the priority of the selected prole.
