Buffalo WLI-UC-GNM [41/81] Wireless lan diagnostic
![Buffalo WLI-UC-GNM [41/81] Wireless lan diagnostic](/views2/1112961/page41/bg29.png)
WLI-UC-GNM User Manual 40
Chapter 4 Client Manager

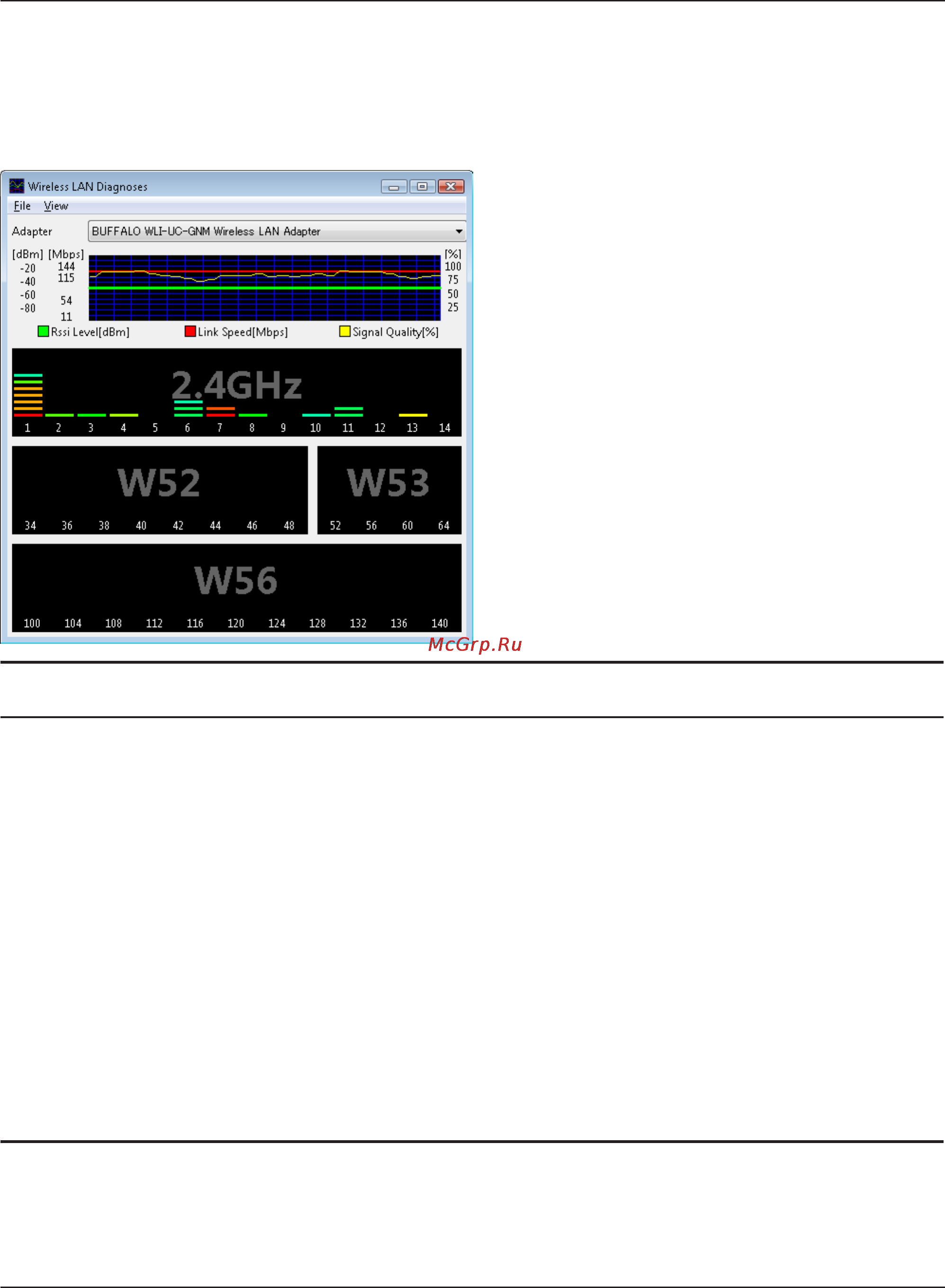

Wireless LAN Diagnostic
On the Wireless LAN Diagnostic screen, you can check signal strength and quality.
Parameter Meaning
Adapter Displays the name of the wireless client currently in use.
Connection status Displays signal strength (dBm), link rate (Mbps), and signal quality
(%) at 1 minute intervals.
Possible restrictions:
• Some wireless devices may not be displayed.
• Signal strength and quality displays may vary.
These graphs should not be used to compare dierent wireless
devices. Only use them to compare information for the same
wireless device.
Usage of each channel The 11b/11g displays usage of each channel on 2.4 GHz.
This unit does not display 11a usage, as it does not support 5 GHz.
The color expresses the signal strength of an access point. Redder
means a stronger signal, bluer means a weaker signal.
