System Hardware Installation - 22 -

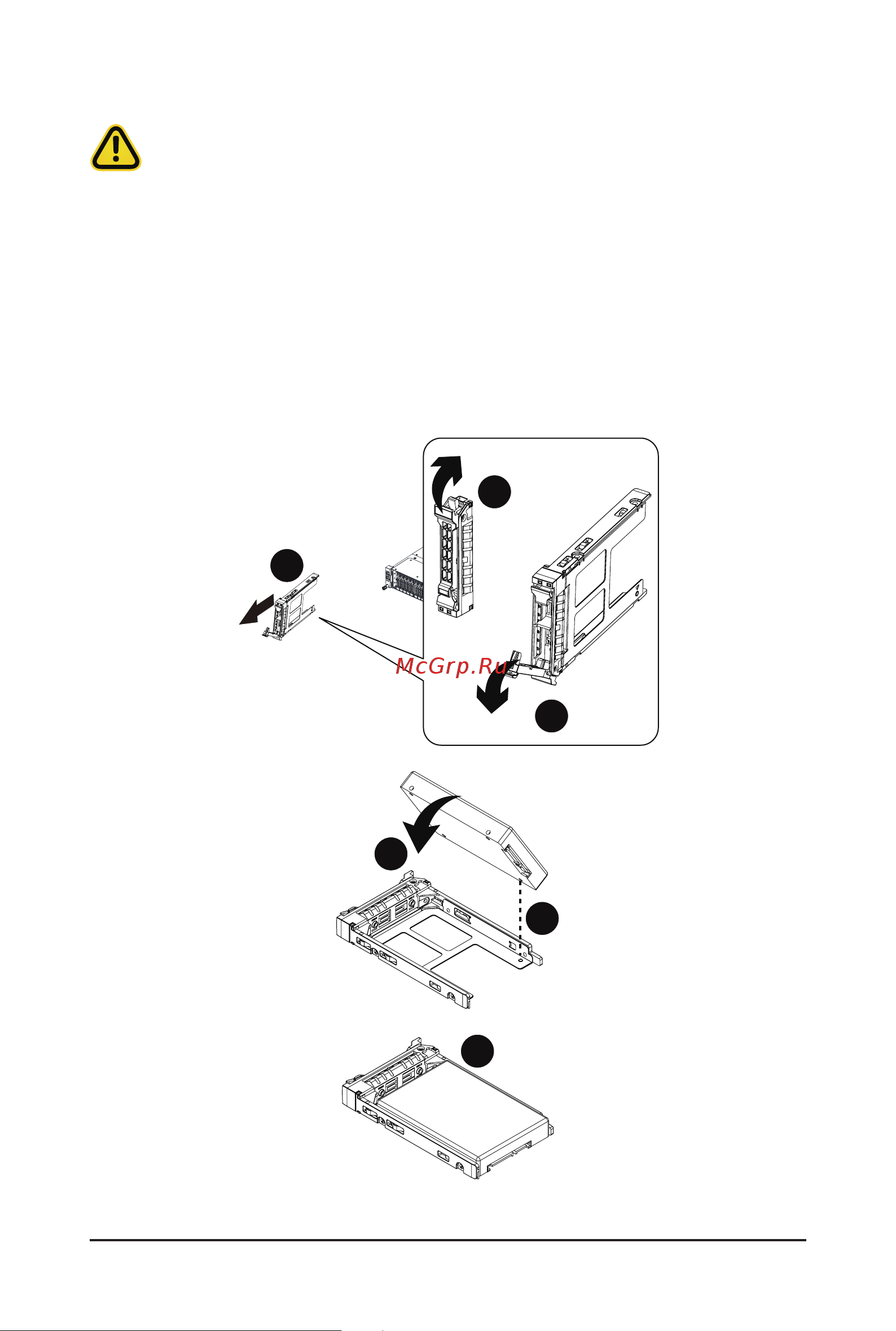

3-1 Installing the Hard Disk Drive

Read the following guidelines before you begin to install the Hard disk drive:

• Take note of the drive tray orientation before sliding it out.

• The tray will not t back into the bay if inserted incorrectly.

• Make sure that the HDD is connected to the HDD connector on the backplane.

Follow these instructions to install the Hard disk drive:

1. Press down the colored release button.

2. Pull out the black locking lever.

3. Use the black locking lever to slide out the HDD tray.

4. Place one side of the HDD at a 45 degree angle into the tray, and align the guiding stand-offs in the

tray with the installation holes of the HDD.

5. Once aligned, push down the other side of the HDD and press it until it clicks.

Press

Pull
