System Hardware Installation - 24 -
3-3 Installing the PCI Expansion Card
• The PCI riser assembly does not include a riser card or any cabling as standard. To install
a PCI card, a riser card must be installed.

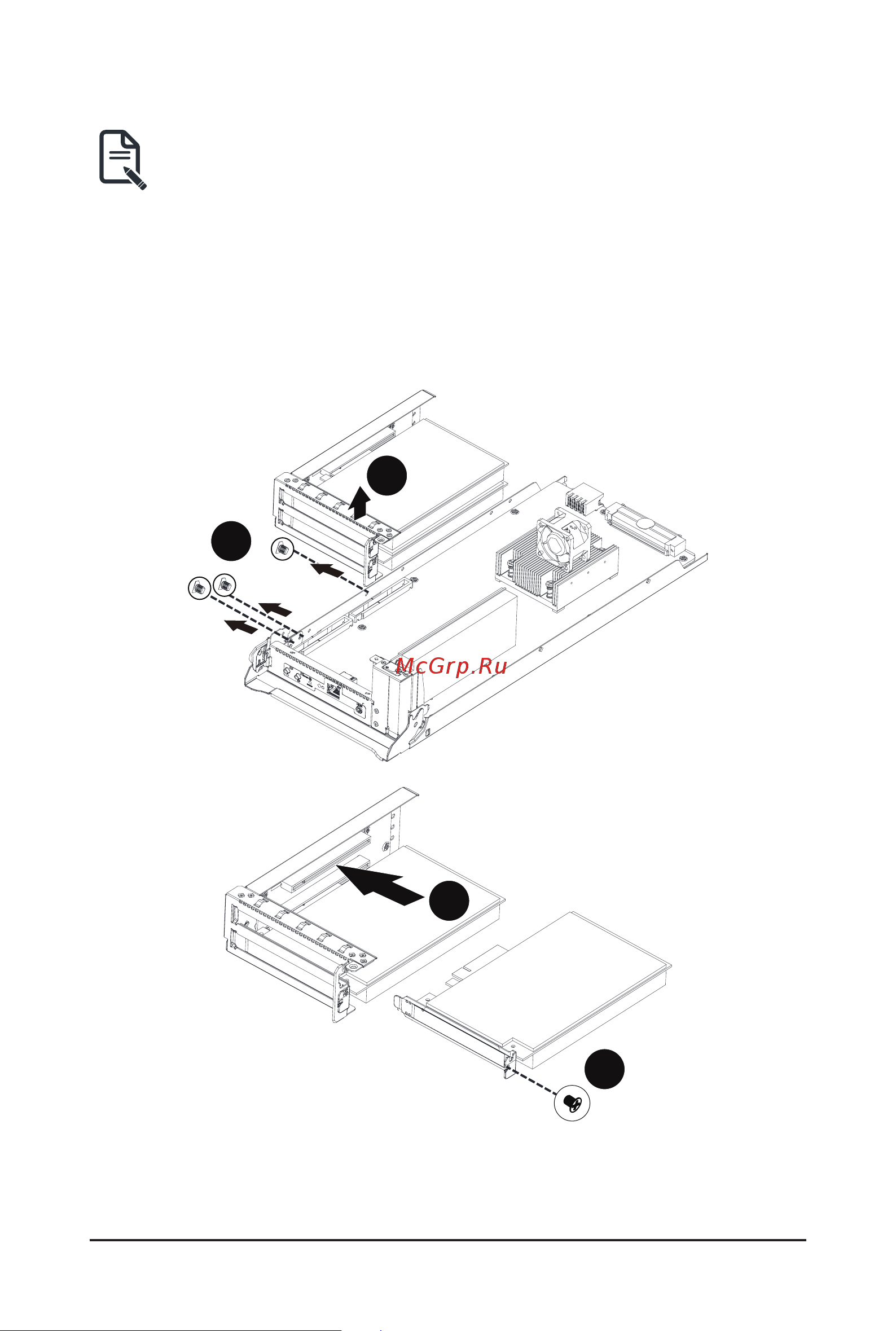

Follow these instructions to install the PCI Expansion card:
1. Remove the three screws securing the riser bracket to the system.
2. Lift up the riser bracket out of system.
3. Align the PCIe card to the riser guide slot and push in the direction of the arrow until the PCIe card
sits in the PCI card connector.
4. Secure the PCIe card with a screw.
5. Reverse steps 1 - 3 to install the riser bracket back into the system.
1
2
3
4
