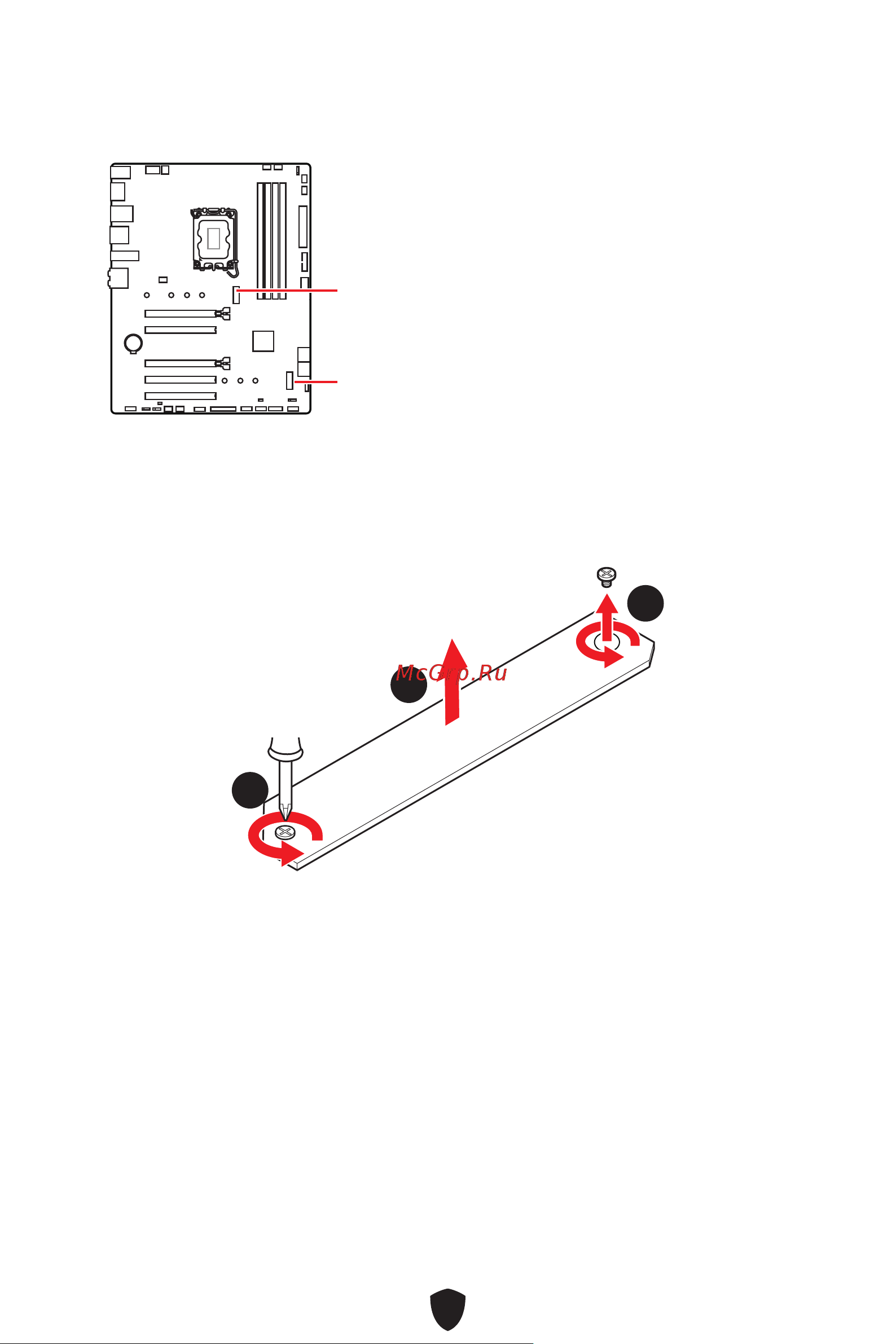

M2_1~2: M.2 Slots (Key M)

M2_1

M2_2

⚠

Important

∙

Intel® RST only supports PCIe M.2 SSD with

UEFI ROM.

∙

If your M.2 SSD equips its own heatsink,

please remove the M.2 rubber cube in the

M.2 slot before installing M.2 SSD. Do not

re-install the heatsink supplied with your

motherboard.

Installing M.2 module into M2_1 slot

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Lift up the M.2 Shield Frozr heatsink and remove it
