6. Remove the protective film from the thermal pad under the M.2 Shield Frozr

heatsink.

7. Put the M.2 Shield Frozr heatsink back in place and secure it.

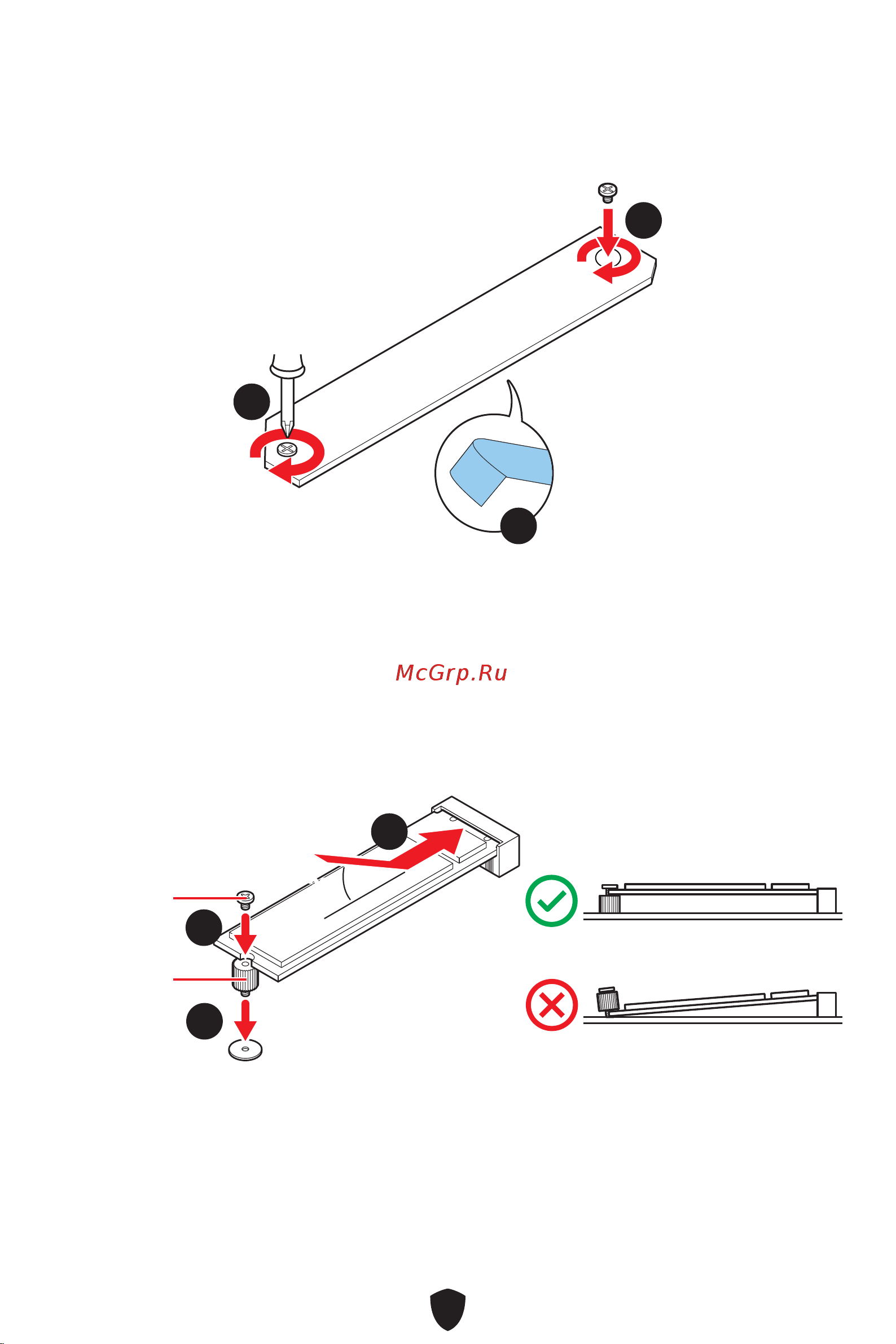

Installing M.2 module into M2_2 slot

1. Please install the supplied M.2 standoff in the M.2 slot according to your SSD

length.

2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.

3. Secure the M.2 SSD in place with the supplied M.2 screw.

30º30º

M.2 screw

M.2 standoff
