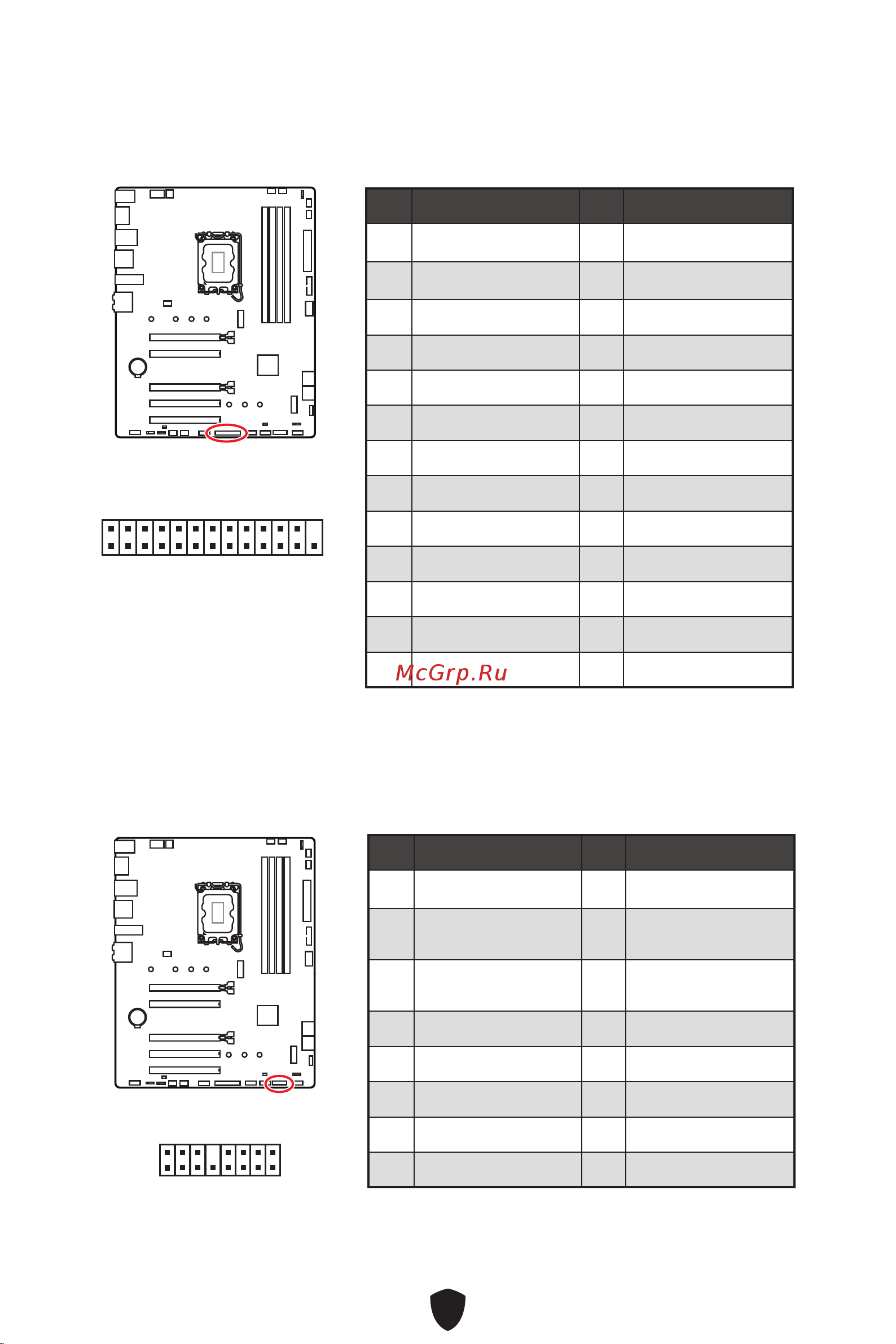

JLPT1: Parallel Port Connector

This connector allows you to connect the optional parallel port with bracket.

2 26

Pin Signal Name Pin Signal Name

1 RSTB# 2 AFD#

3 PRND0 4 ERR#

5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN#

9 PRND3 10 Ground

11 PRND4 12 Ground

13 PRND5 14 Ground

15 PRND6 16 Ground

17 PRND7 18 Ground

19 ACK# 20 Ground

21 BUSY 22 Ground

23 PE 24 Ground

25 SLCT 26 No Pin

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

Pin Signal Name Pin Signal Name

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

TBT_CIO_PLUG_

EVENT#

4 TBT_S0IX_ENTRY_ACK

5 SLP_S3#_TBT 6

TBT_PSON_

OVERRIDE_N

7 SLP_S5#_TBT 8 No Pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWAKE# 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_CARD_DET_R# 16 PD_IRQ#
