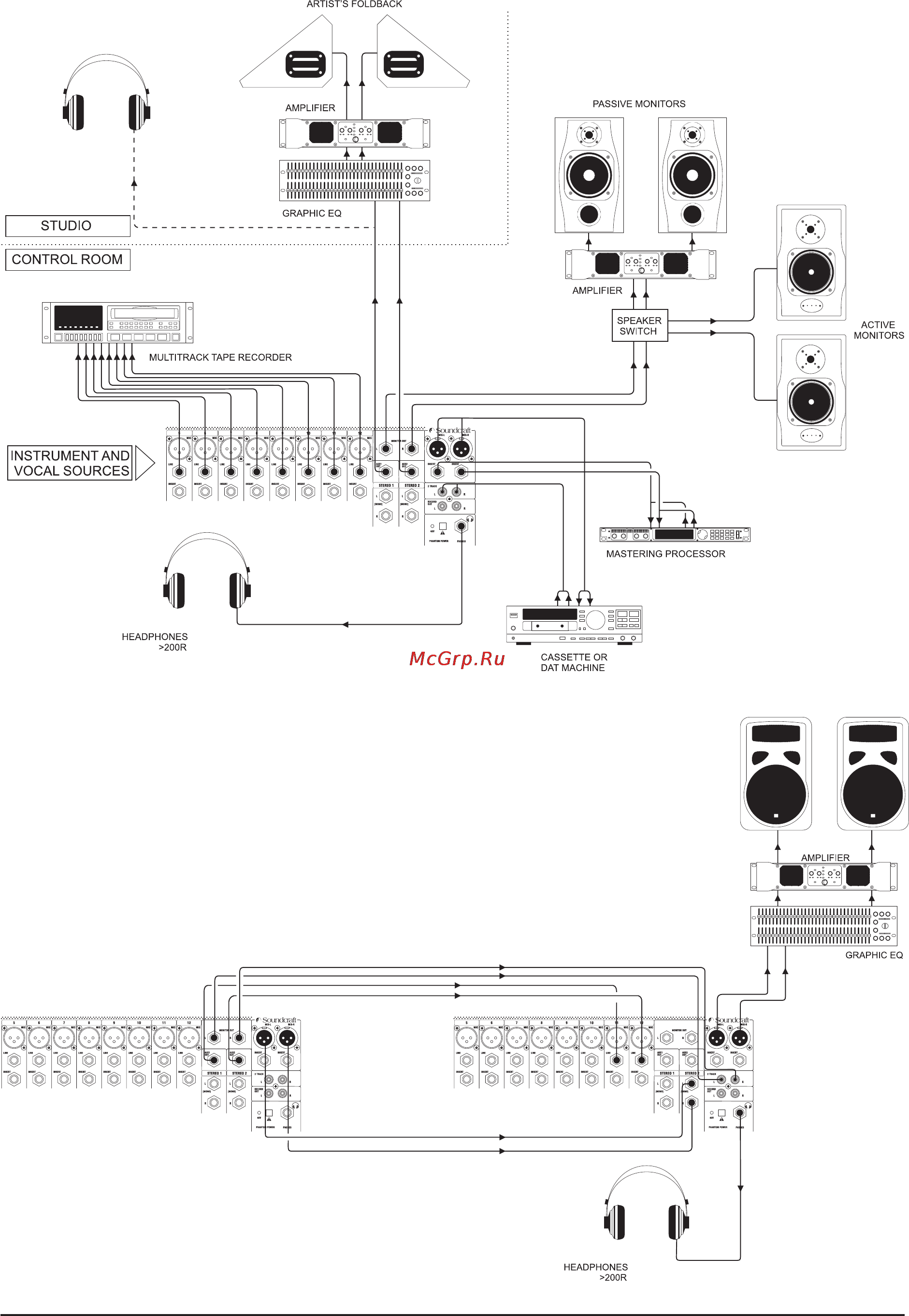

APPLICATION 4 - RECORDING
The insert points on channels 1-8 may be used to feed a multitrack recorder as shown (link the send and return signals). The Mix
outputs are used for a preliminary stereo mix on a DAT recorder.
APPLICATION 5 - LINKING TWO EPM CONSOLES
