APPLICATION 3 - PLACES OF WORSHIP

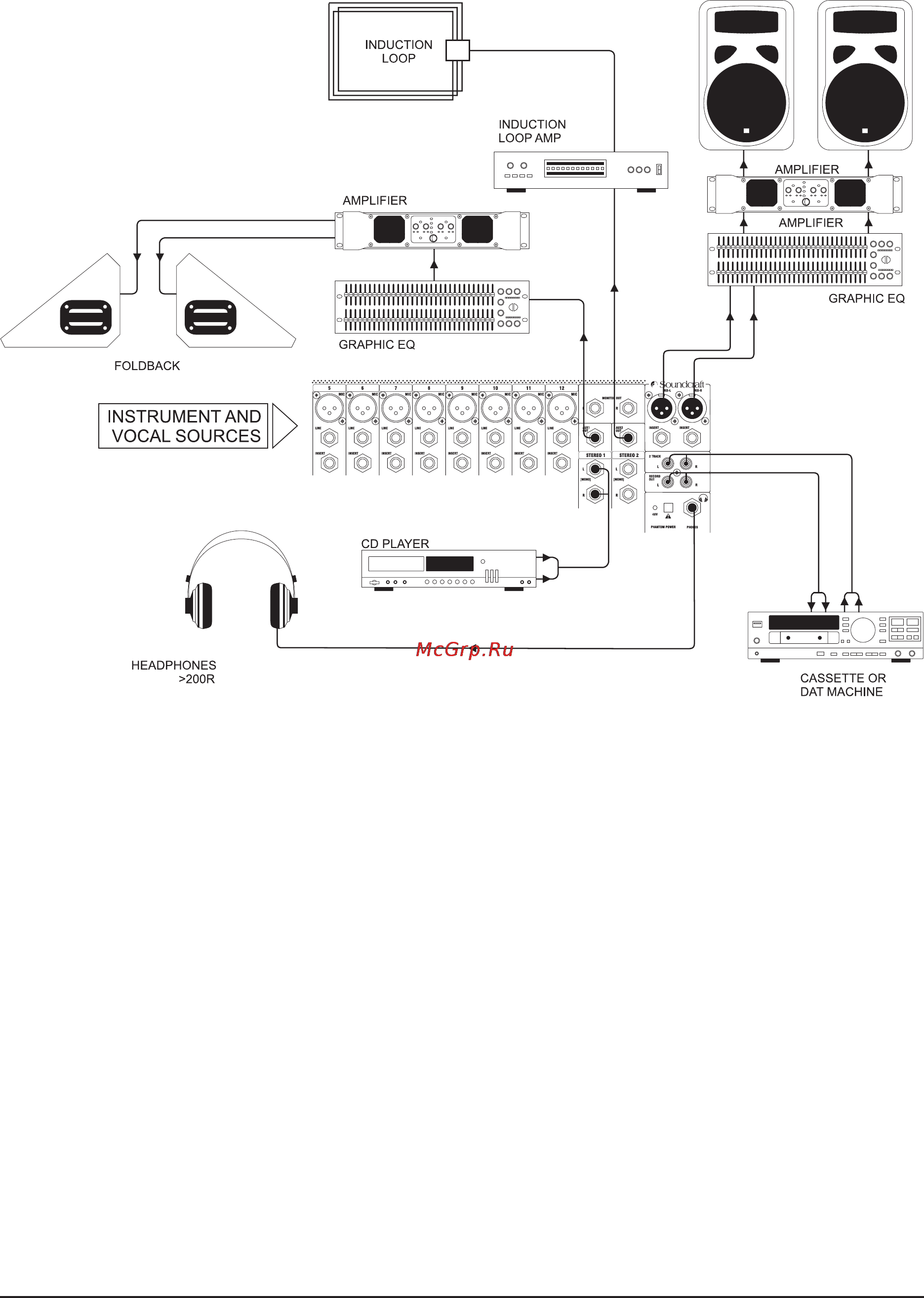

This configuration uses the Aux 2 output to drive an induction loop for the hard of hearing. Aux 1 output is used to generate foldback
monitoring for the speaker/singer. The main outputs are used to drive the main speaker system. The record and playback connections
are used to pass audio to and from a DAT machine or CDR.
