Soundcraft EPM6 [7/36] The 60 second guide

OVERVIEW

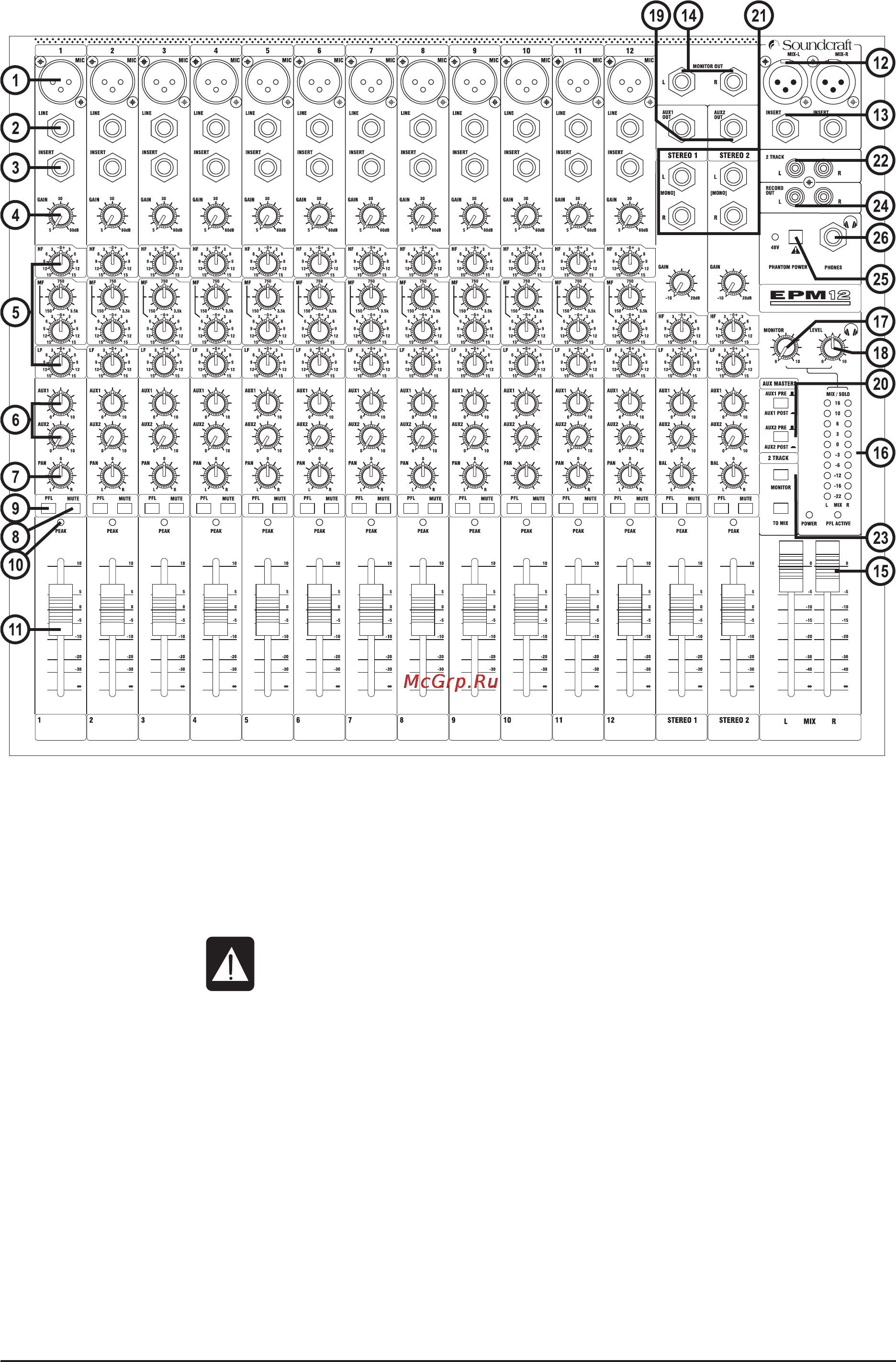

THE 60-SECOND GUIDE

1 MIC INPUT (XLR) Connect Microphones here. If you are using a condenser mic, ensure phantom power is

supplied by pressing the switch at the top of the master section.

WARNING: Do Not apply Phantom Power before connecting a microphone.

2 LINE INPUT (¼” Jack) Connect Line level sources here, e.g. Synth, Drum Machine, DI etc.

3 INSERT POINT (¼” Jack) Connect Signal processors here, e.g. Compressor, Gate etc.

4 GAIN CONTROL Adjust this to increase or decrease the level of the incoming signal.

5 EQ STAGE Adjust these controls to change the signal tone (the character of the signal).

6 AUX SENDS Adjust these controls to change the level of the signal to an FX unit or an artist’s monitors

(headphones/in-ear/stage monitors). Aux 1&2 are switchable pre/post fade.

7 PAN CONTROL Use this control to position the signal within the stereo field.

8 MUTE SWITCH When this is pressed you will hear no signal from the channel (post-mute signals).

9 PFL When pressed the signal will appear on the monitor and headphone outputs - use this to

monitor the post-EQ signal from the channel.

To get you working as fast as possible, this manual begins with a 60-second guide. Here you can find quick information on any

feature of the console.
