Chaffoteaux MIRA SYSTEM 30 FF [11/20] Operating continued

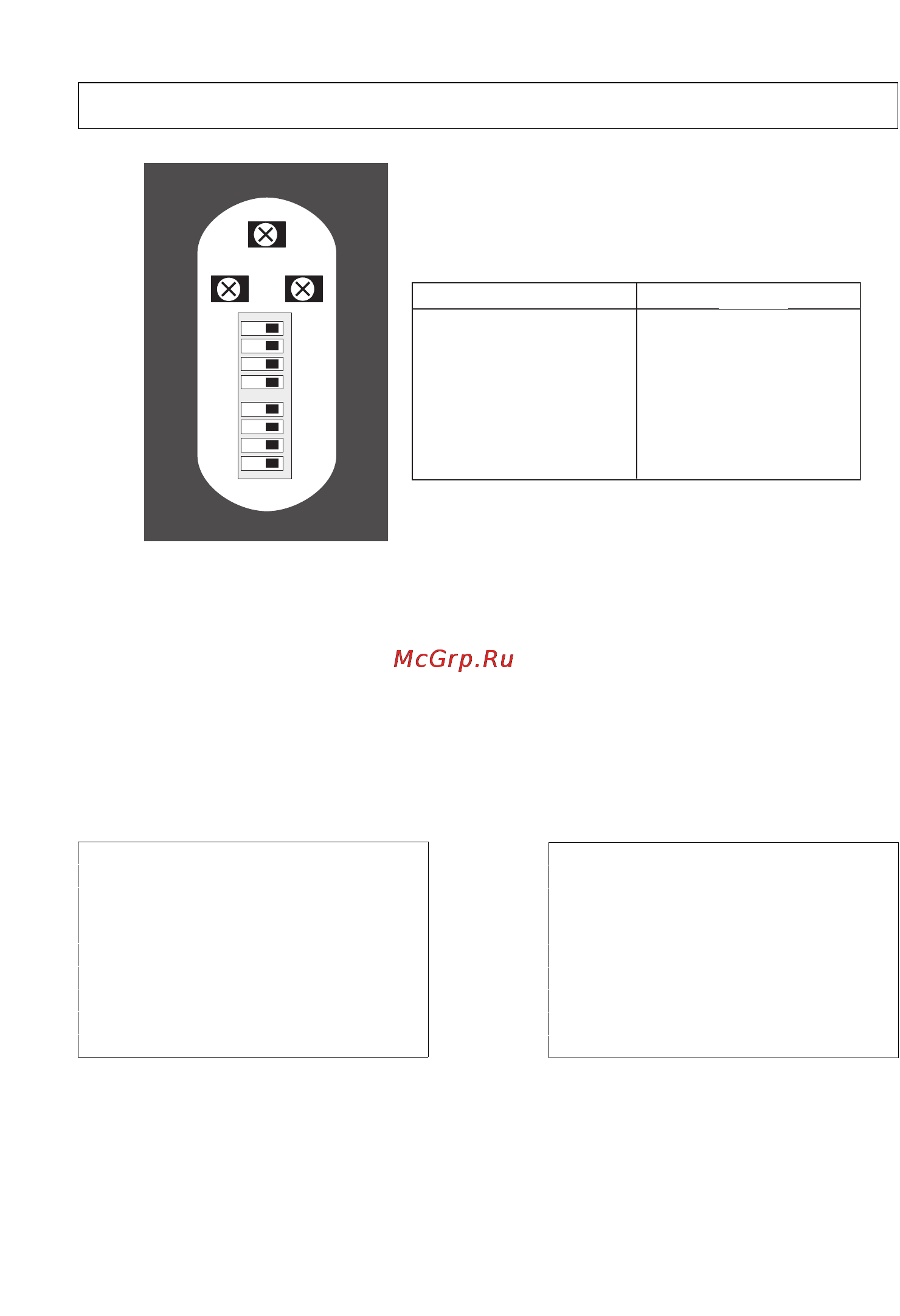

![Chaffoteaux MIRA SYSTEM 30 FF [11/20] Operating continued](/views2/1115106/page11/bgb.png)
11
P1
P2
ON OFF
A1
A2
A3
A4
B1
B2
B3
B4
P3
Factory settings
Burner gas output setting
The values shown in the tables below are given for information purposes for a nominal gas distribution pressure, to allow any
adjustments to the boiler heating output according to the requirements of the appliance.
They cannot be used to calculate the precise regulated output of the water heater.
8. Operating (continued)
Pompe Grande VitessePompe Petite Vitesse
Anticycle 3 min
Fonctionnement Modulant
Tempo Débistat Sanitaire 1,5 sec Tempo Débistat Sanitaire 0 sec
Célectic
OFF
ON
Anticycle 30 s
Fonctionnement TOUT OU RIEN
Consigne chauffage à 40 C
Consigne chauffage variable de 35 à 85 C
Post circulation 30 s Post circulation 3 mn
Fig.13
Adaptive speed pump
High speed pump
ON
OFF
ON/OFF operation
Heating setting to 40 °C
Modulating Operation
Adjustable heating setting 35 to 85 °C
30 s anticycle
3 min anticycle
Post-circulation 30 s Post-circulation 3 min.
24 FF
Gas G20 PROPANE BUTANE
Working P.
(kW)
Pressure
plate
(mm CE)
10 25 74 55
12,7 38 117 89
16 57 182 137
20 86 276 204
24 120 390 282
30 FF
Gas G20 PROPANE BUTANE
Working P.
(kW)
Pressure
plate
(mm CE)
12 27 69 48
16 43 112 85
20 63 167 131
25 98 254 202
30 140 359 287
TIC 3 min. TIC 30 sec.
