- 97 - Appendix

The install menus described in this chapter are for reference only and may differ by driver version.

Step 3:

When a screen as shown in Figure 6 appears, select Intel(R) ICH8R/ICH9R/ICH10R/DO/5 Series/3400 Se-

ries SATA RAID Controller and click Next.

Step 4:

After the driver is loaded, select the RAID/AHCI drive(s) where you want to install the operating system and

then click Next to continue the OS installation (Figure 7).

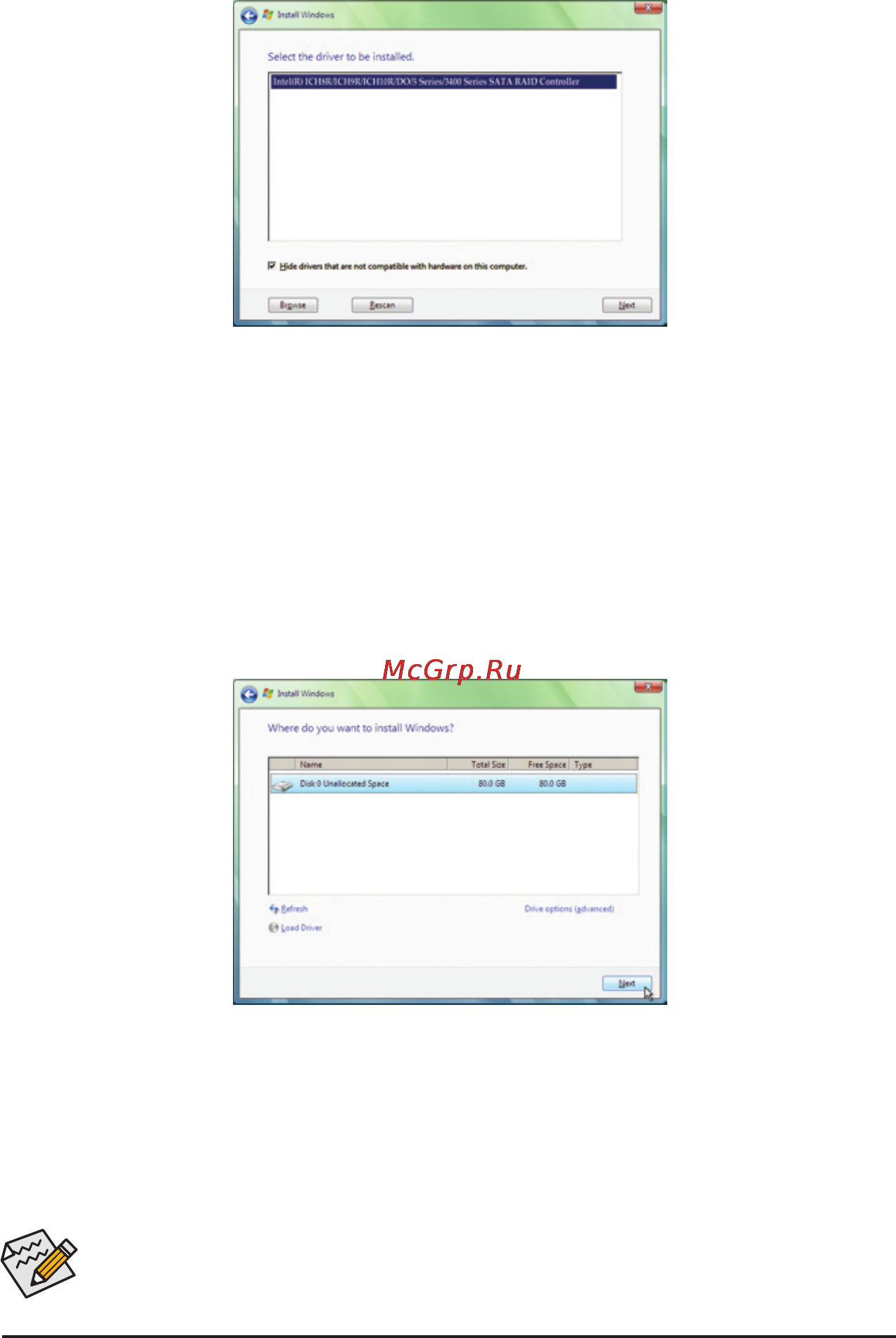

Figure 6

Figure 7
