Gigabyte GA-H55-UD3H (REV. 1.3) [30/96] Phase led

Hardware Installation - 30 -

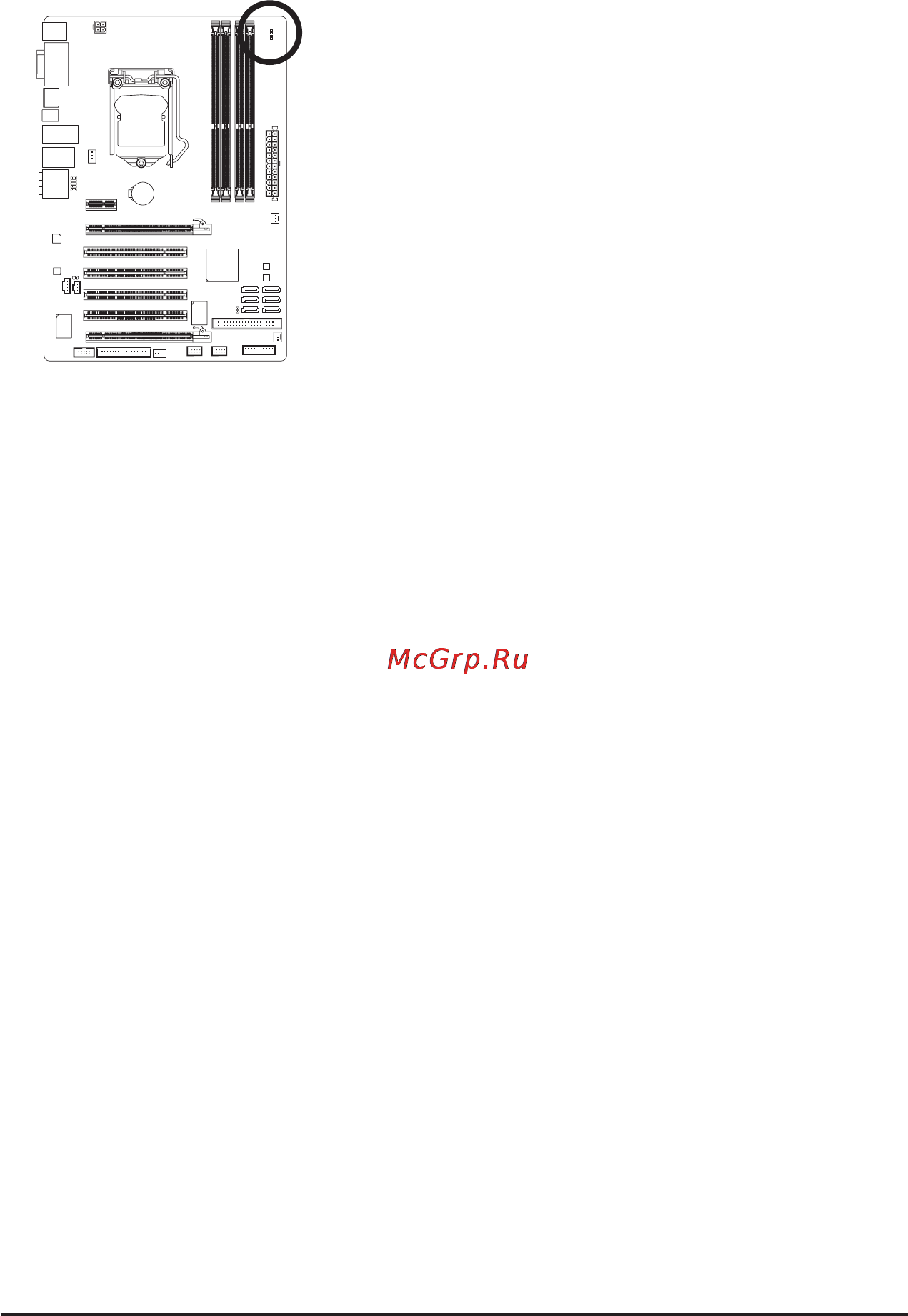

18) PHASE LED

The number of lighted LEDs indicates the CPU loading. The higher the CPU loading, the more the

numberoflightedLEDs.ToenablethePhaseLEDdisplayfunction,pleaserstenableDynamicEnergy

Saver

™

2. Refer to Chapter 4, "Dynamic Energy Saver

™

2," for more details.
