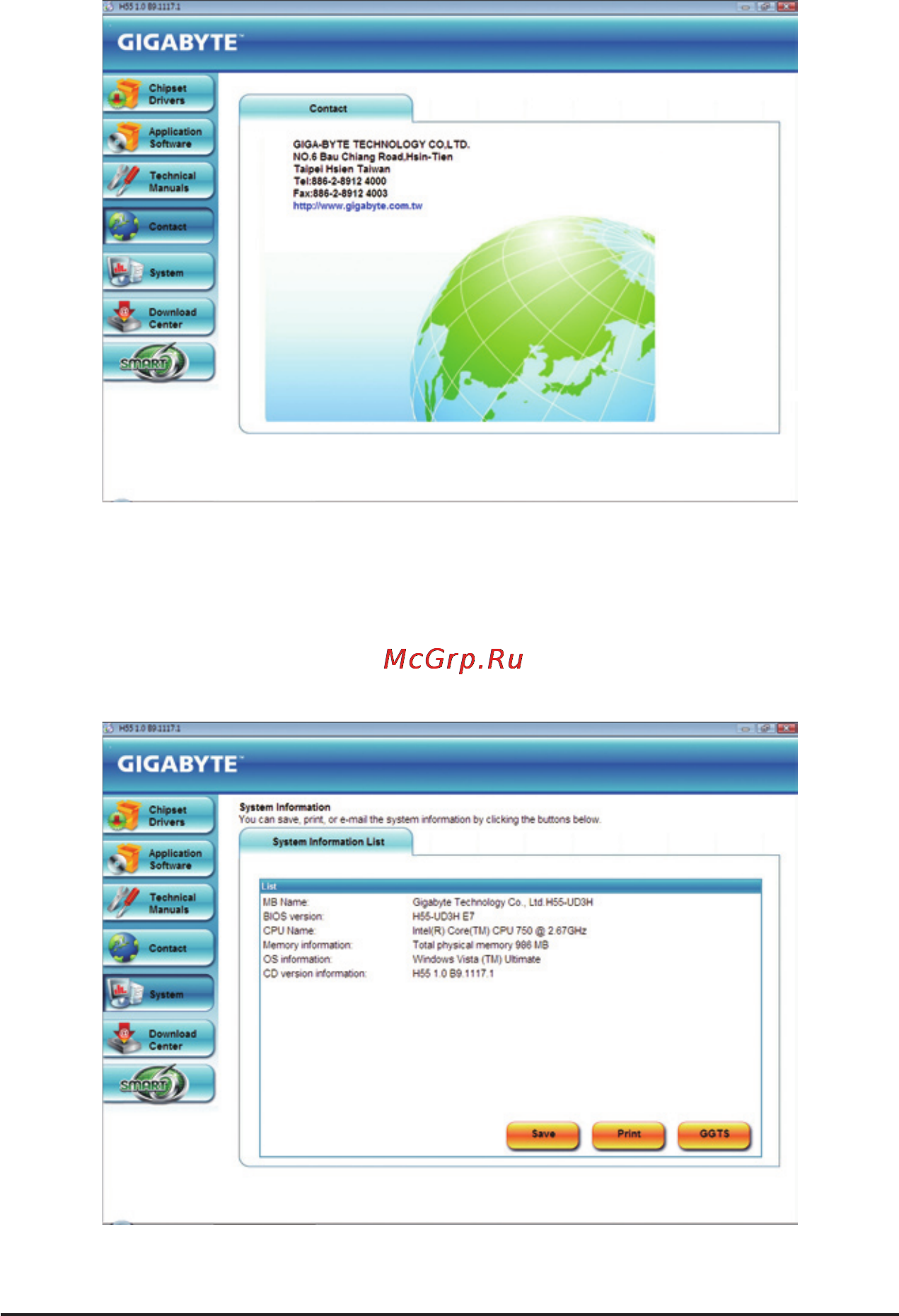

Gigabyte GA-H55-UD3H (REV. 1.0) [61/96] 4 contact

- 61 - Drivers Installation

3-4 Contact

ForthedetailedcontactinformationoftheGIGABYTETaiwanheadquarterorworldwidebranchofces,click

the URL on this page to link to the GIGABYTE website.

3-5 System

This page provides the basic system information.
