5-2-2 Conguring S/PDIF Out

The S/PDIF Out jacks

(Note 1)

can transmit audio signals to an external decoder for decoding to get the best

audio quality.

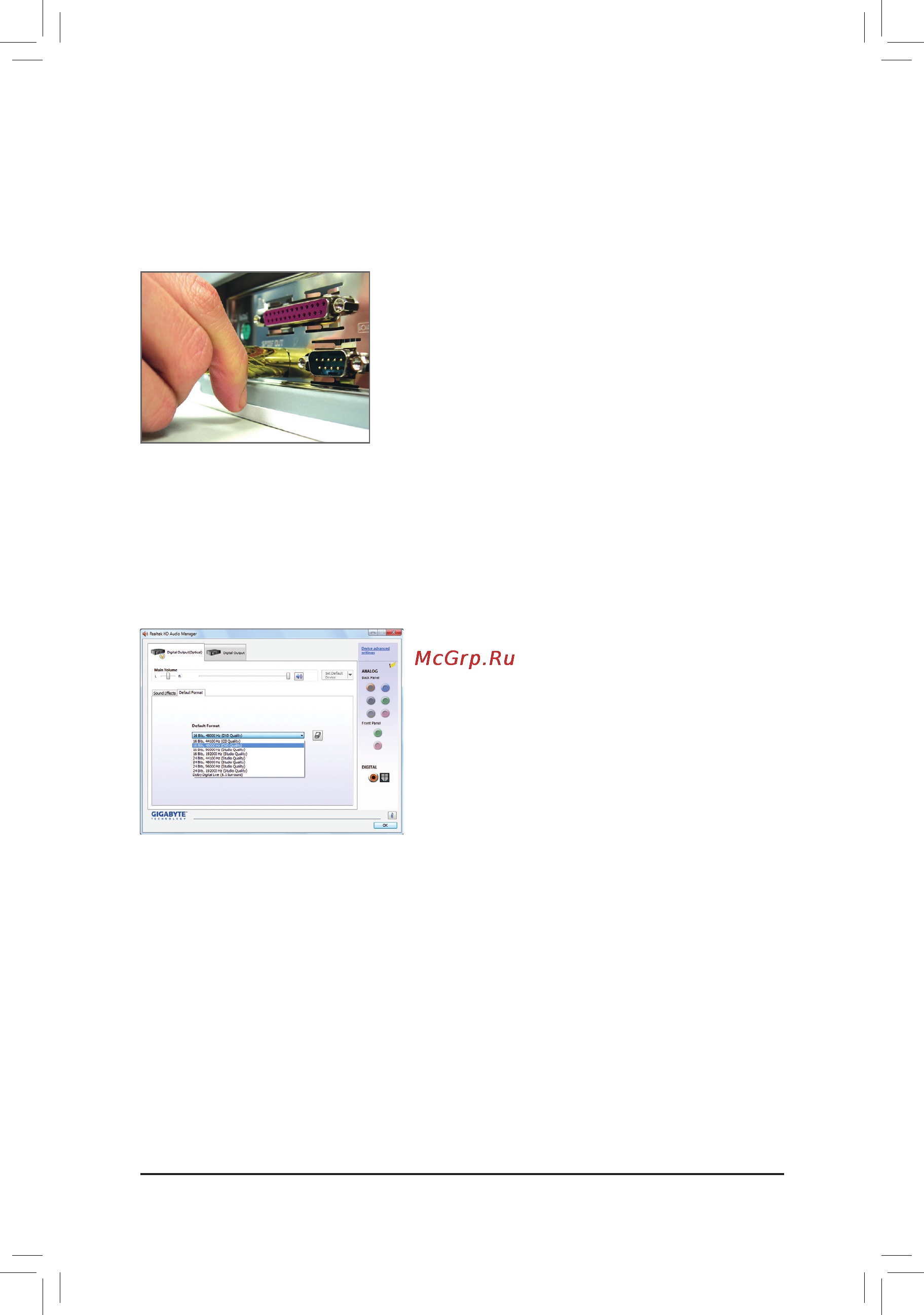

1. Connecting a S/PDIF Out Cable:

Connect a S/PDIF optical cable to an external decoder for transmitting the S/PDIF digital audio signals.

S/PDIF Optical Cable

(Note 1) The actual locations of the S/PDIF Out connectors may differ by model.

(Note 2) Enter the Digital Output(Optical)screen to congurefurther settings ifyou use theS/PDIF Out

connector(s) on the back panel for digital audio output or enter the Digital Output screen if you use

the internal S/PDIF Out connector (SPDIF_O) for digital audio output.

2. Conguring S/PDIF Out:

On the Digital Output(Optical) screen

(Note 2)

, click the Default Format tab and then select the sample rate

and bit depth. Click OK to complete.
