- 21 - Hardware Installation
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1 14
2
9
11
12
3
10

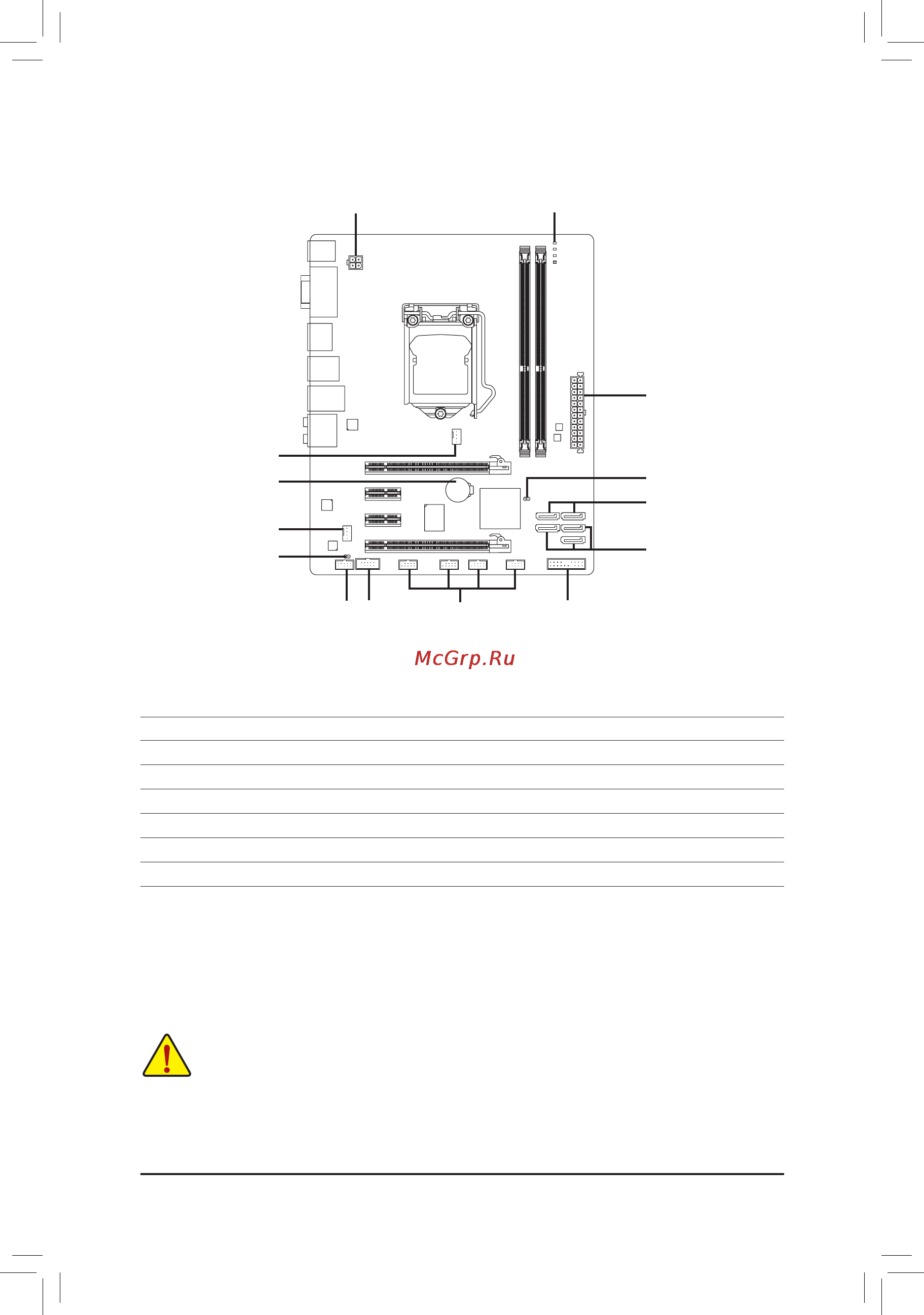

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) SATA3_0/1
6) SATA2_2/3/4
7) BAT
8) F_PANEL
9) F_AUDIO
10) SPDIF_O
11)
F_USB1/F_USB2/F_USB3/F_USB4
12) COM
13) CLR_CMOS
14) PHASE LED
6
13
4
5
7
8
