Hardware Installation - 28 -

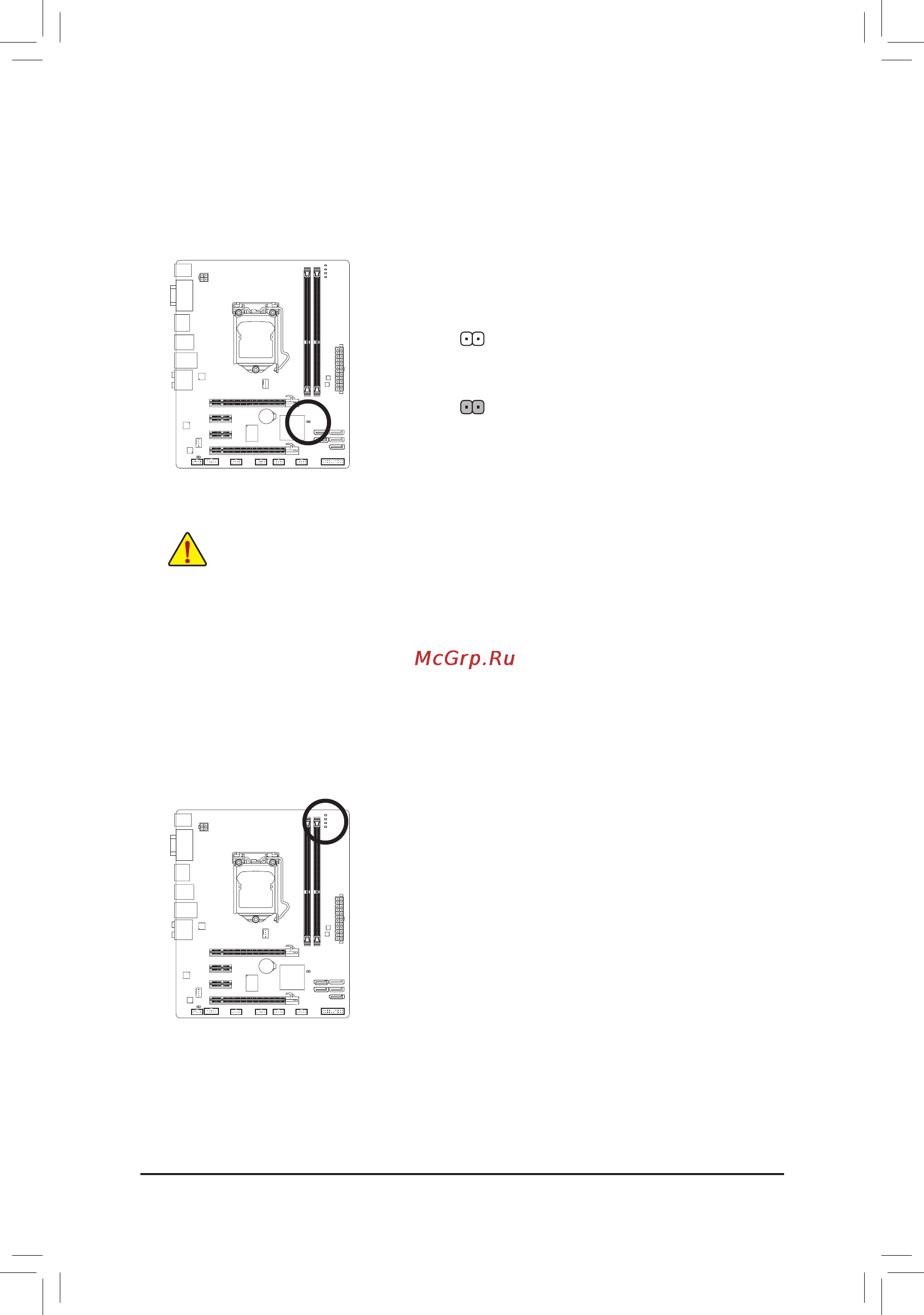

13) CLR_CMOS (Clearing CMOS Jumper)

 UsethisjumpertocleartheCMOSvalues(e.g.dateinformation and BIOS congurations) and reset

the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to

temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few

seconds.

Open: Normal

Short: Clear CMOS Values

• Always turn off your computer and unplug the power cord from the power outlet before clear-

ing the CMOS values.

• After clearing the CMOS values and before turning on your computer, be sure to remove the

jumper cap from the jumper. Failure to do so may cause damage to the motherboard.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized De-

faults)or manuallyconguretheBIOS settings(referto Chapter 2,"BIOSSetup," for BIOS

congurations).

14) PHASE LED

The number of lighted LEDs indicates the CPU loading. The higher the CPU loading, the more the

numberoflightedLEDs.ToenablethePhaseLEDdisplayfunction,pleaserstenableDynamicEnergy

Saver

™

2. Refer to Chapter 4, "Dynamic Energy Saver

™

2," for more details.
