Gigabyte GA-H67M-UD2H (REV. 1.1) [19/104] 6 back panel connectors

- 19 - Hardware Installation

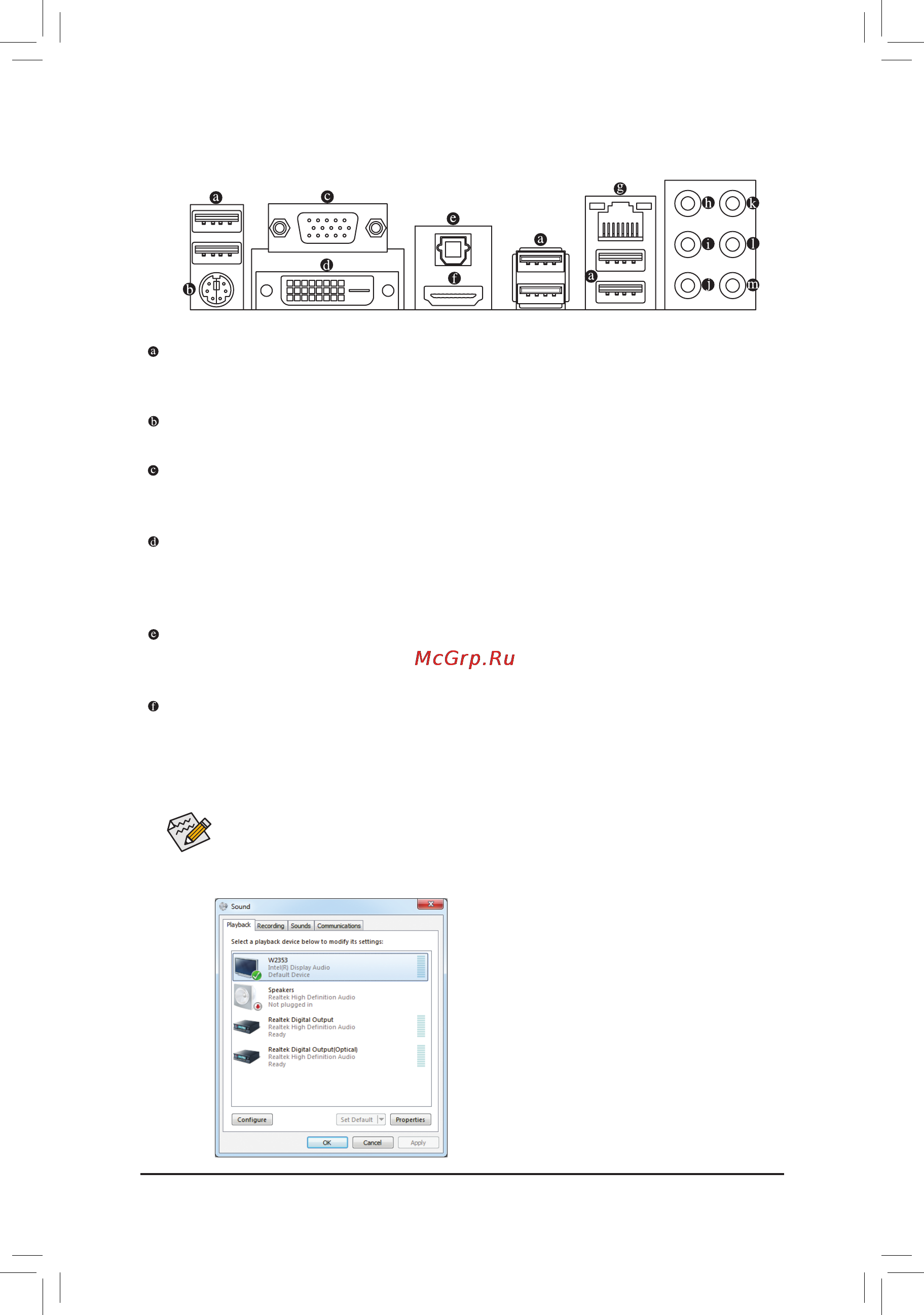

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasaUSBkey-

board/mouse,USBprinter,USBashdriveandetc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

DVI-D Port

(Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio.

Before using this feature, ensure that your audio system provides an optical digital audio in connector.

HDMI Port

TheHDMI(High-DenitionMultimediaInterface)providesanall-digitalaudio/videointerfacetotransmit

the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to

this port. The HDMI Technology can support a maximum resolution of 1920x1200 but the actual resolu-

tions supported depend on the monitor being used.

After installing the HDMI device, make sure the default device for sound playback is the HDMI •

device.(Theitemnamemaydifferfromoperatingsystem.Refertothegurebelowfordetails.)

Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats. •

(AC3 and DTS require the use of an external decoder for decoding.)

In Windows 7, select Start>Control Panel>Hardware

and Sound>Sound>Playback, set Intel(R) Display Audio

to the default playback device.

(Note) The DVI-D port does not support D-Sub con-

nection by adapter.
