Hikvision DS-2CD8433F-E(I) [58/95] Configuring tamper proof alarm

User Manual of Network Camera

You can specify the linkage method when an event occurs. The following

contents are about how to configure the different types of linkage method.

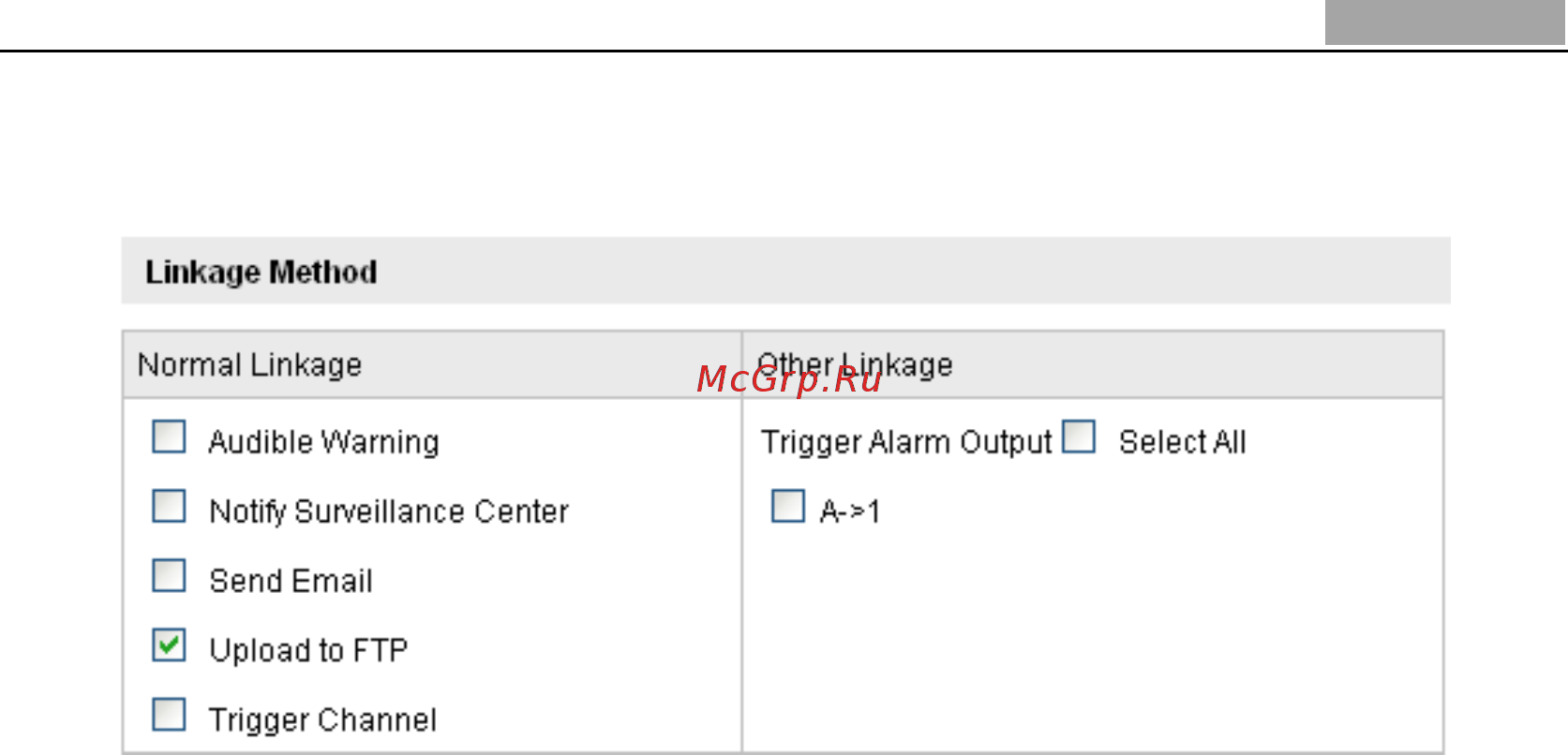

Figure 6-27 Linkage Method

Steps:

(1) Check the checkbox to select the linkage method. Audible warning, notify

surveillance center, send email, upload to FTP, trigger channel and trigger

alarm output are selectable (Optional).

 Audible Warning

Trigger the audible warning locally.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when

an event occurs.

 Send Email

Send an email with alarm information to a user or users when an event

occurs.

Note: To send the Email when an event occurs, you need to refer to Section

6.6.6 to set the related parameters.

 Upload to FTP

Capture the image when an alarm is triggered and upload the picture to a

FTP server.

Note: Set the FTP address and the remote FTP server first. Refer to Section

6.3.8 for detailed information.

 Trigger Channel

The video will be recorded when the motion is detected. You have to set the

recording schedule to realize this function. Please refer to Section 7.2 for

detailed information.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

Note: To trigger an alarm output when an event occurs, please refer to

Section 6.6.4 to set the related parameters.

6.6.2 Configuring Tamper-proof Alarm

Purpose:
