User Manual of Network Camera

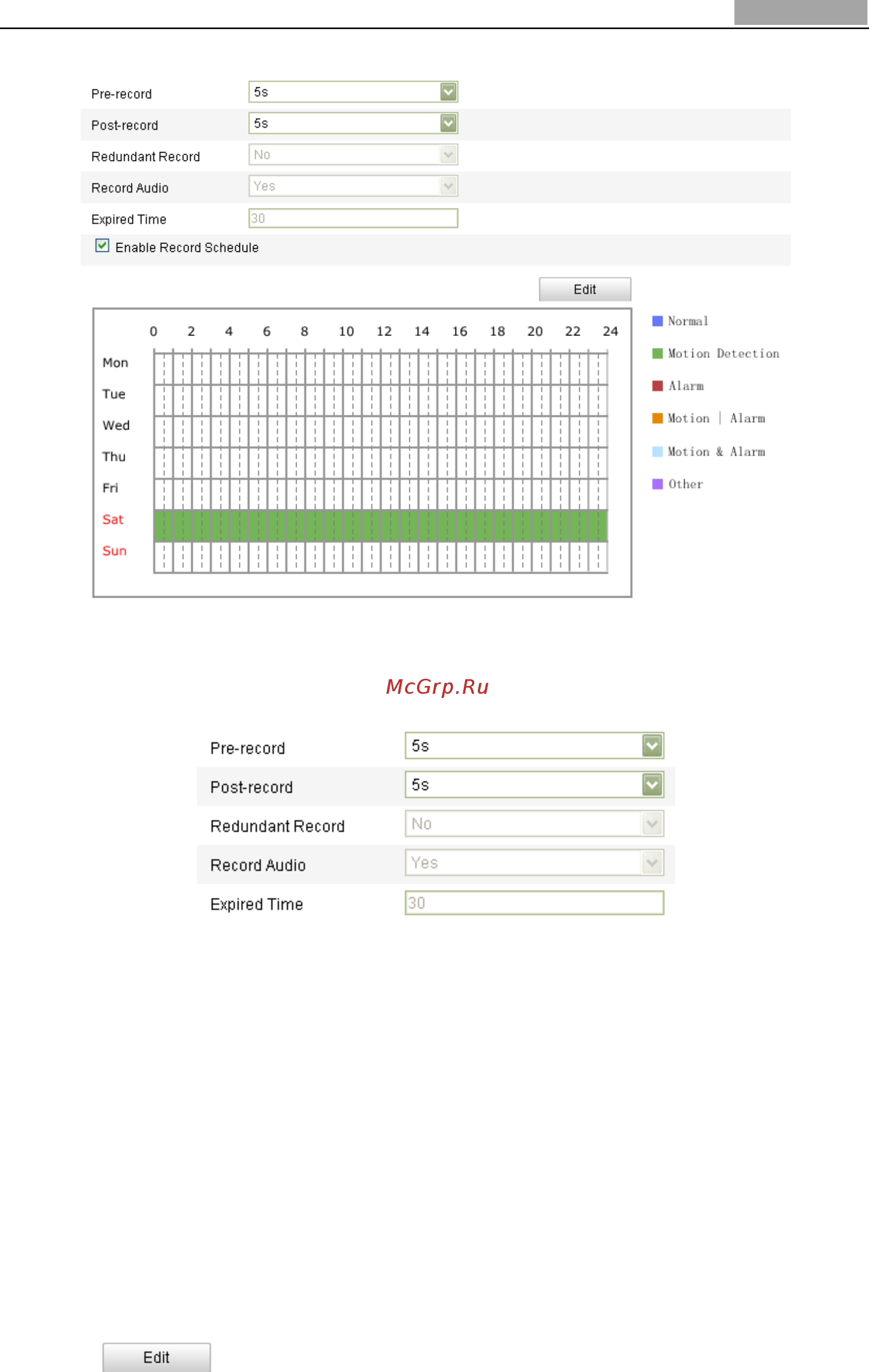

Figure 7-5 Recording Schedule Interface

2. Check the checkbox of Enable Record Schedule to enable scheduled recording.

3. Set the record parameters of the camera.

Figure 7-6 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or

the event. For example, if an alarm triggers recording at 10:00, and the

pre-record time is set as 5 seconds, the camera starts to record at 9:59:55.

The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s,

25 s, 30 s or not limited.

 Post-record: The time you set to stop recording after the scheduled time or

the event. For example, if an alarm triggered recording ends at 11:00, and the

post-record time is set as 5 seconds, the camera records until 11:00:05.

The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min

or 10 min.

Note: The record parameter configurations vary depending on the camera model.

4. Click to edit the record schedule.
