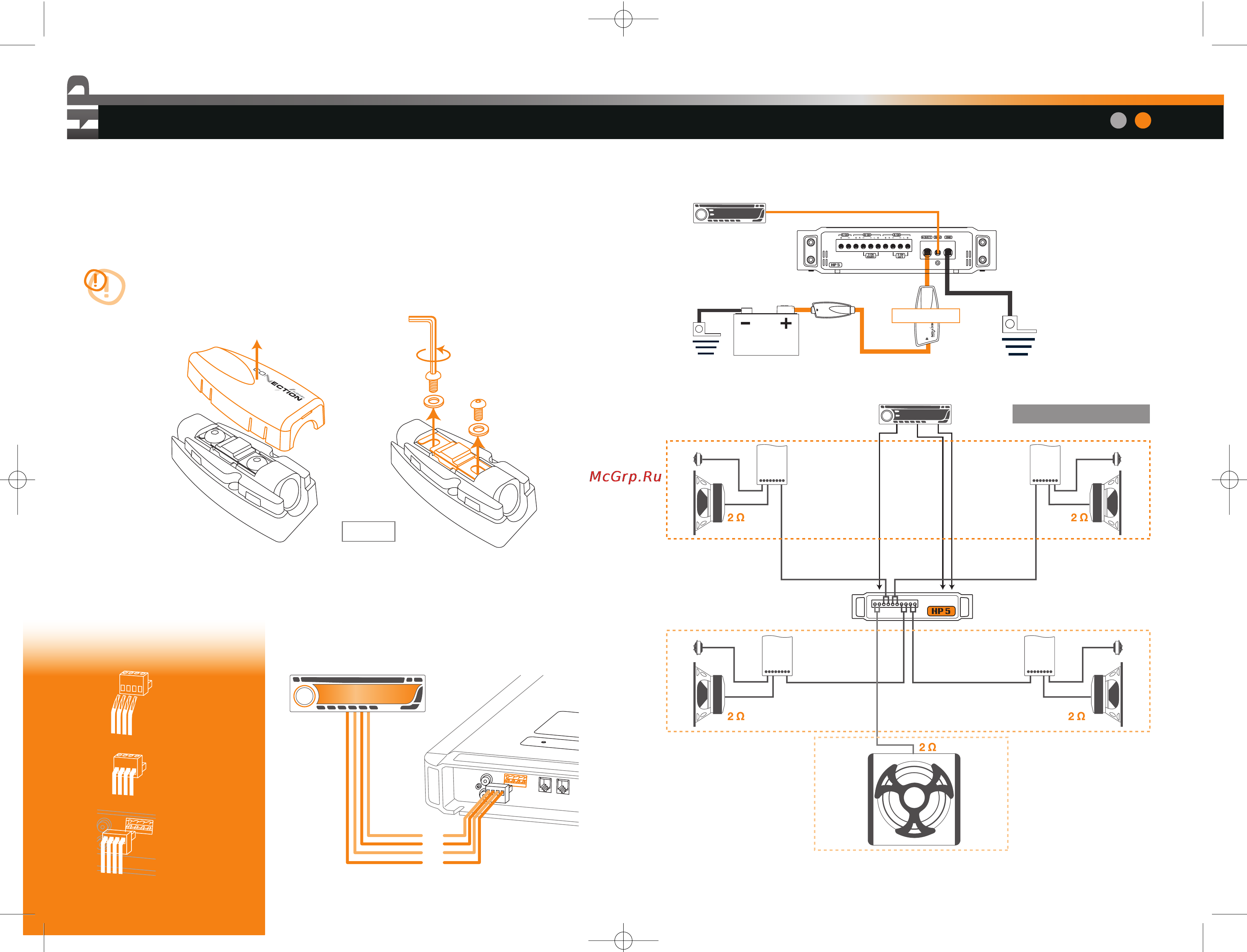

150 A
REM OUT or
ELECTRIC ANTENNA
GND+BATT
Provided
Power Terminal
FRONT
REAR
SUB
PRE / SPK
B IN (rear)
optional
PRE / SPK
C IN (sub)
optional
PRE / SPK
A IN (front)
Configuration diagram
HP 5: Front + Rear + Sub
The schemes report the minimum impedance stood by the amplifier in the configuration shown
BFH 11
How to replace the fuse
• Remove the protective cover.
• Remove the fuse with a 3mm Allen wrench.
• Be sure that the value of the new fuse is identical to the fuse supplied, then insert it into its seat
tightening the screws thoroughly. Be sure to carry out a perfect connection to avoid false
contacts or voltage drops along the power supply line.
• Insert again the protective shell into its seat.
CAUTION: In order to ensure the proper fuse working tighten the screws making sure
the washer bend and perfectly fit the fuse.
High Level Input (SPEAKER IN)
For greater convenience you can connect the cables to the specific connector before inserting it
into the inputs panel. Refer to the following instructions. Carry out this operation with amplifier
and head unit off.
1_Peel the cables
2_Fix the cables
into the connector
3_Insert the
connector
L+
L-
R+
R-
Italiano | English
48 49
Manuale HP5 13-07-2007 17:35 Pagina 49
