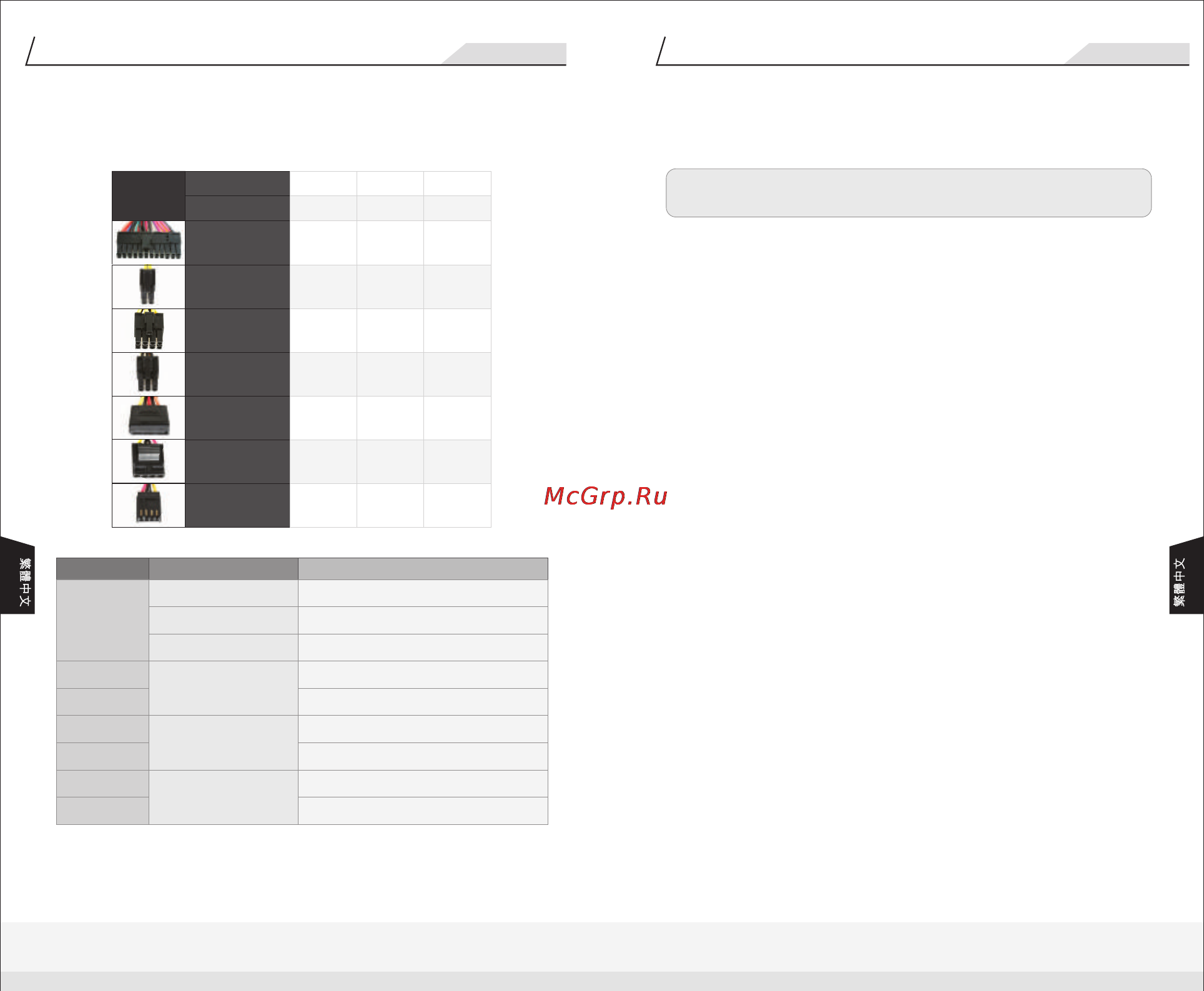

3. 電源接頭介紹
註： 請確定系統已關閉且已斷電。
斷開交流電源線與舊電源供應器的連接。
1. 打開電腦機殼；請參閱機殼使用手冊中的相關指示。
2. 使用隨附的四顆螺絲將 PSU 裝入機殼。
3. 將 24 pin 主電 源 接 頭連接至主機板與週邊裝置。 若主機板 使 用
20-pin 接頭， 則卸下 24-pin 接頭上的 4-pin 附件。 註： 可拆卸式
4-pin 組件不可用於替代 4-pin +12V 接頭。
4. 連接 CPU 的 8-pin 或 4-pin 接頭。
5. 將其他週邊裝置電源接頭連接至硬碟機、 光碟機等裝置。
6. 關閉電腦機殼，並將交流電源線連接至電源供應器交流電源插孔。
03 04
瓦特數
產品編號
W0292 W0293 W0294
350W 450W 500W
20+4pin
主電源接頭
4pin +12V
CPU 接頭
8pin +12V
CPU 接頭
6pin PCI-E 接頭
SATA 接頭
週邊裝置接頭
軟碟機接頭
1 1 1
1 1 1
0 0 1
1 1 2
2 4 4
5 5 5
1 1 1
型號
接頭類型
接頭及纜線長度
350W /
450W /
500W
350W
450W / 500W
350W
450W / 500W
350W
450W / 500W
24pin
ATX 12V 4pin
EPS 12V 8pin
Molex 及 FDD
SATA
PCI-E 6pin
1 x 24pin 主電源接頭：
W0293 / W0294 (400mm)，W0292 (350mm)
1 x ATX 12V 4pin
W0293 / W0294 (400mm) W0292 (350mm)
接頭：
，
1 x EPS 12V 8pin
W0294 (400mm)
接頭：
5 x 週邊裝置接頭，以及 1 x FDD
(350mm+100mm+100mm+100mm+100mm+100mm)
接頭：
5 x 週邊裝置接頭，以及 1 x FDD 接頭：
(400mm+100mm+100mm+100mm+100mm+100mm)
2 x S-ATA
(350mm+100mm)
接頭：
4 x S-ATA
(400mm+120mm+120mm+120mm)
接頭：
1 x 6pin PCI-E
(350mm)
接頭：
2 x 6pin PCI-E
(400mm+100mm)
接頭：
4. 安裝步驟
170 X 140 mm
