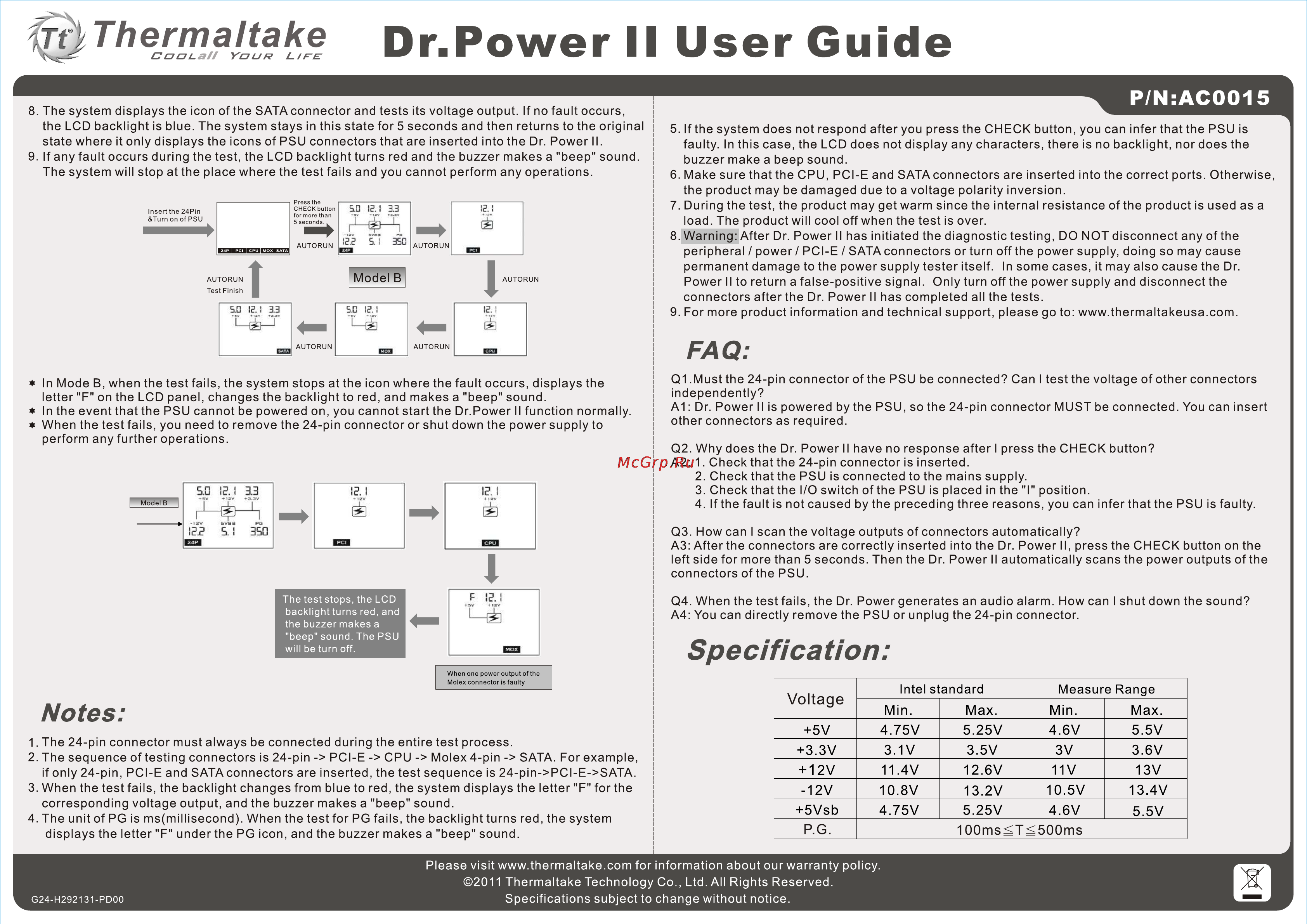

Thermaltake CuuLaH YDUR LIFE Dr Power II User Guide 8 The system displays the icon of the SATA connector and tests its voltage output If no fault occurs the LCD backlight is blue The system stays in this state for 5 seconds and then returns to the original state where it only displays the icons of PSU connectors that are inserted into the Dr Power II 9 If any fault occurs during the test the LCD backlight turns red and the buzzer makes a beep sound The system will stop at the place where the test fails and you cannot perform any operations P N AC0015 5 If the system does not respond after you press the CHECK button you can infer that the PSU is faulty In this case the LCD does not display any characters there is no backlight nor does the buzzer make a beep sound 6 Make sure that theCPU PCI Eand SATA connectors are inserted into the correct ports Otherwise the product may be damaged due to a voltage polarity inversion 7 During the test the product may get warm since the internal resistance of the product is used as a load The product will cool off when the test is over 8 Warning After Dr Power II has initiated the diagnostic testing DO NOT disconnect any of the peripheral I power PCI E SATA connectors or turn off the power supply doing so may cause permanent damage to the power supply tester itself In some cases it may also cause the Dr Power II to return a false positive signal Only turn off the power supply and disconnect the connectors after the Dr Power II has completed all the tests 9 For more product information and technical support please go to www thermaltakeusa com FAQ In Mode B when the test fails the system stops at the icon where the fault occurs displays the letter F on the LCD panel changes the backlight to red and makes a beep sound In the event that the PSU cannot be powered on you cannot start the Dr Power II function normally When the test fails you need to remove the 24 pin connector or shut down the power supply to perform any further operations Models Q1 Must the 24 pin connector of the PSU be connected Can I test the voltage of other connectors independently A1 Dr Power II is powered by the PSU so the 24 pin connector MUST be connected You can insert other connectors as required Q2 Why does the Dr Power II have no response after I press the CHECK button A2 1 Check that the 24 pin connector is inserted 2 Check that the PSU is connected to the mains supply 3 Check that the I O switch of the PSU is placed in the I position 4 If the fault is not caused by the preceding three reasons you can inferthat the PSU is faulty Q3 How can I scan the voltage outputs of connectors automatically A3 After the connectors are correctly inserted into the Dr Power II press the CHECK button on the left side for more than 5 seconds Then the Dr Power II automatically scans the power outputs of the connectors of the PSU The test stops the LCD backlight turns red and the buzzer makes a beep sound The PSU will be turn off Q4 When the test fails the Dr Power generates an audio alarm How can I shut down the sound A4 You can directly remove the PSU or unplug the 24 pin connector Specification When one power output of the Molex connector is faulty Voltage Notes 1 The 24 pin connector must always be connected during the entire test process 2 The sequence of testing connectors is 24 pin PCI E CPU Molex 4 pin SATA For example if only 24 pin PCI E and SATA connectors are inserted the test sequence is 24 pin PCI E SATA 3 When the test fails the backlight changes from blue to red the system displays the letter F for the corresponding voltage output and the buzzer makes a beep sound 4 The unit of PG is ms millisecond When the test for PG fails the backlight turns red the system displays the letter F under the PG icon and the buzzer makes a beep sound G24 H292131 PD00 5V 3 3V 12V 12V 5Vsb P G Please visit www thermaltake com for information about our warranty policy 2011 Thermaltake Technology Co Ltd All Rights Reserved Specifications subject to change without notice Intel standard Min 4 75V 3 1V 11 4V 10 8V 4 75V Measure Range Max Min 5 25V 4 6V 3 5V 3V 12 6V 11V 10 5V 13 2V 5 25V 4 6V 100ms T 500ms Max 5 5V 3 6V 13V 13 4V 5 5V
