English
English

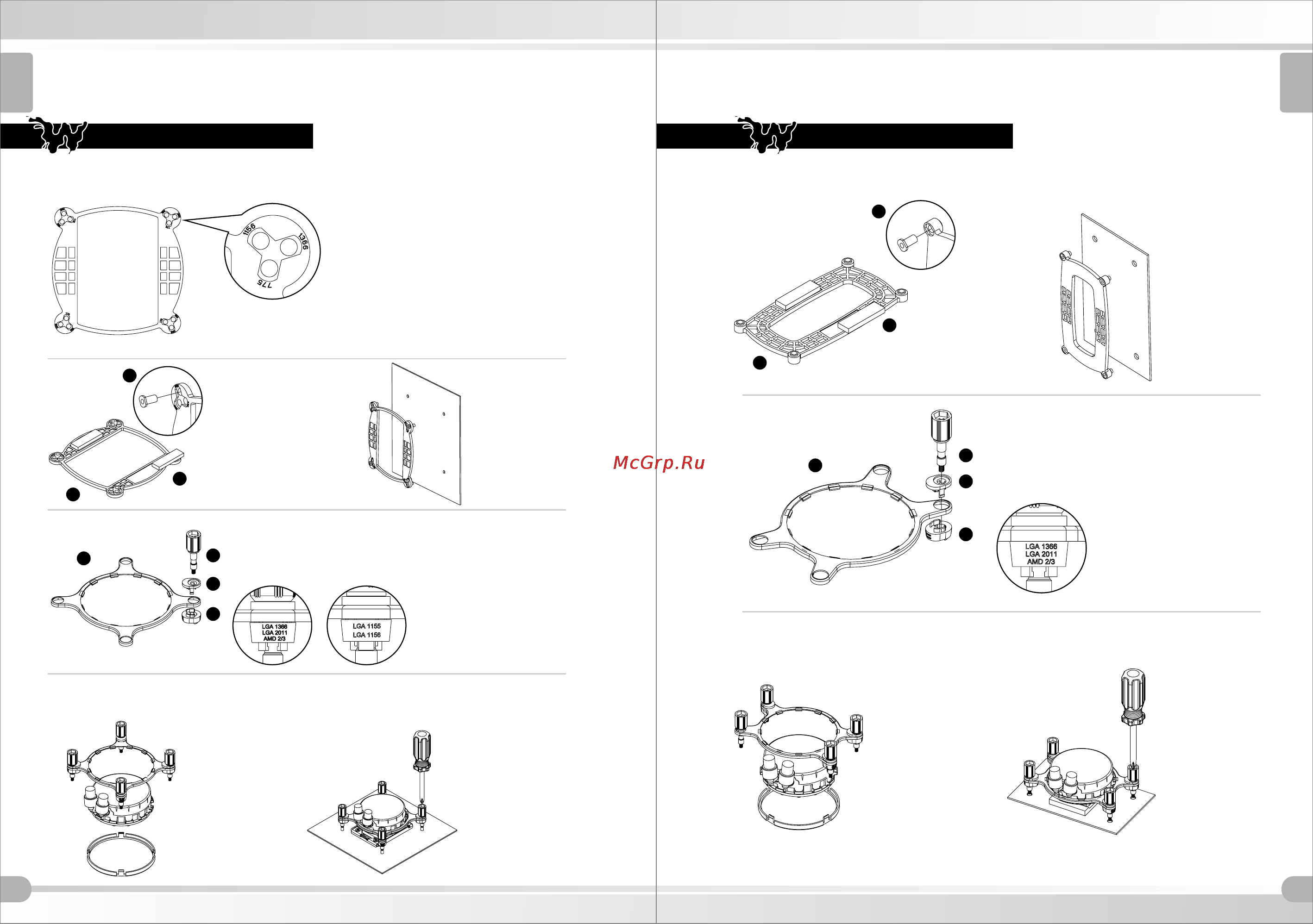

Pump Installation
For AMD FM1/AM3+/AM3/AM2+/AM2
Pump Installation
For Intel LGA 1366/1156/1155/775
Please check the socket
type match CPU and
choose the right opening
to place (A) into it.
Stick Mylar(E) on the
back of the (A)and
place the four grommets
(F) on to the corresponding
openings.
Snap top (H) and bottom (I) plastic component
together on to the 4 side of socket ring (B),
follow by placing the screws (J) into the
openings on the ring.
** Please remove the transparent cap in front of the pump when installing
on to the CPU, and be careful not to touch the thermal paste.
Attach Retention Ring
(B) to Pump，and
snap the retaining clip
(L) to the retention
Ring, locking the ring
to pump.
Placed the
composed pump on
to the CPU and use
hand to screw (J)
until its tight, user
may use screw
driver for tightening.
Stick Mylar(E) on the
back of the (C)and place
the four grommets (F) on
to the corresponding
openings.
Stick the composed
Back Plate (C) on to
the back of the
motherboard.
Snap top (H) and bottom (I) plastic
component together on to the 4 side of socket
ring (D), follow by placing the screws (J) into
the openings on the ring.
** Please remove the transparent cap in front of the pump when installing
on to the CPU, and be careful not to touch the thermal paste.
Attach Retention Ring
(D) to Pump，and snap
the retaining clip (L) to
the retention Ring,
locking the ring to pump.
Placed the composed
pump on to the CPU
and use hand to screw
(J) until its tight, user
may use screw driver
for tightening.
Notice:
The letters of the socket
must be seen when
snapping the bottom (I)
Stick the
composed Back
Plate (A) on to the
back of the
motherboard.
Notice:
The letters AMD2/3
must be seen when
snapping the bottom (I)
F
A
E
J
H
I
B
E
C
F
D
J
H
I
2
3
