62.5

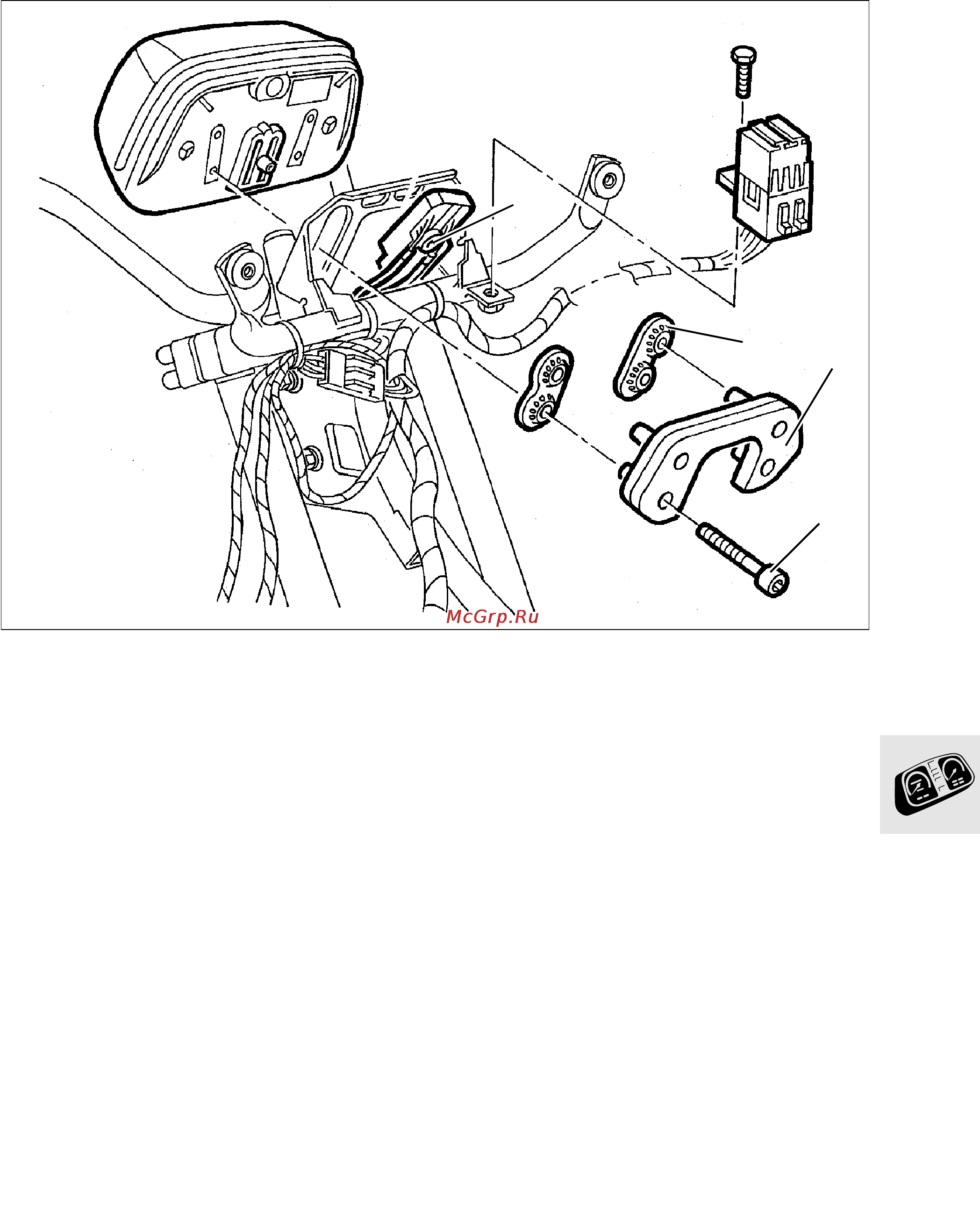

Removing and installing instrument
cluster
[LT]
•
Remove upper section of fairing.
•
Release screw (1) and disconnect central plug
connector.
•
Release screws (2), remove instrument cluster
and counterweight (3).
•
Rubber buffers (4) remain in instrument support
bracket.
•
Install in the reverse order of removal.
LT620010
4
3
2
1
