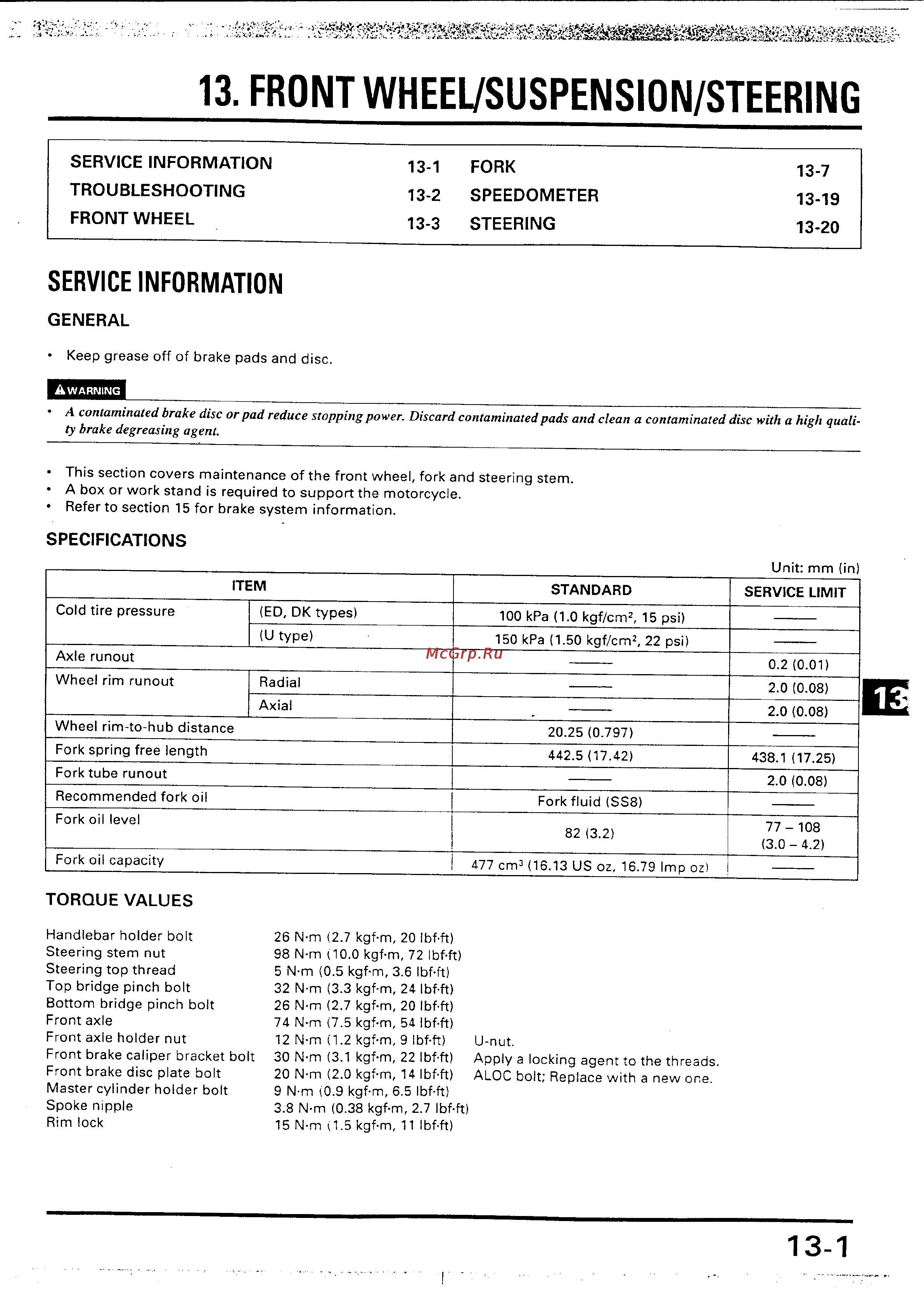

13 FRONT WH EEL S USPENSIO N STEERI NG SERVICE INFORMATION 13 1 FORK 13 7 TROUBLESHOOTING 13 2 SPEEDOMETER 13 19 FRONT WHEEL 13 3 STEERING 13 20 SERVICE INFORMATION GENERAL Keep grease off of brake pads and disc WARNING A contaminated brake disc or pad reduce stopping power Discard contaminated pads and clean a contaminated disc with a high quailty brake degreasing agent This section covers maintenance of the front wheel fork and steering stem A box or work stand is required to support the motorcycle Refer to section 15 for brake system information SPECIFICATIONS ITEM Cold tire pressure STANDARD SERVICE LIMIT ED DK types 100 kPa 1 0 15 psi U type 150 kPa 1 50 kgf cm2 22 psi 0 2 0 01 2 0 0 08 Wheel rim to hub distance 20 25 0 797 2 0 0 08 Fork spring free length 442 5 17 42 Axle runout Wheel rim runout Radial kgf cm2 Axial Fork tube runout Recommended fork oil 82 3 2 477 cm3 16 13 US oz 16 79 Imp oz TORQUE VALUES Handlebar holder bolt Steering stem nut Steering top thread Top bridge pinch bolt Bottom bridge pinch bolt Front axle Front axle holder nut Front brake caliper bracket bolt Front brake disc plate bolt Master cylinder holder bolt Spoke nipple Rim lock 2 0 0 08 Fork fluid SS8 Fork oil level Fork oil capacity 438 1 17 25 26 N m 2 7 kgf m 20 lbf ft 98 N m 10 0 kgf m 72 lbf ft 5 N m 0 5 kgf m 3 6 lbf ft 32 N m 3 3 kgf m 24 lbf ft 26 N m 2 7 kgf m 20 lbf ft 74 N m 7 5 kgf m 54 lbf ft 12 N m 1 2 kgf m 9 lbf ft U nut 30 N m 3 1 kgf m 22 lbf ft Apply a locking agent to the threads 20 N m 2 0 kgf m 14 lbf ft ALOC bolt Replace with a new one 9 N m 0 9 kgf m 6 5 lbf ft 3 8 N m 0 38 kgf m 2 7 lbf ft 15 N m 1 5 kgf m 11 lbf ft 77 108 3 0 4 2
