Yamaha WR250FR (2002) [189/343] Oil pump
![Yamaha WR250FR (2002) [189/343] Oil pump](/views2/1121402/page189/bgbd.png)
4 - 67
ENG

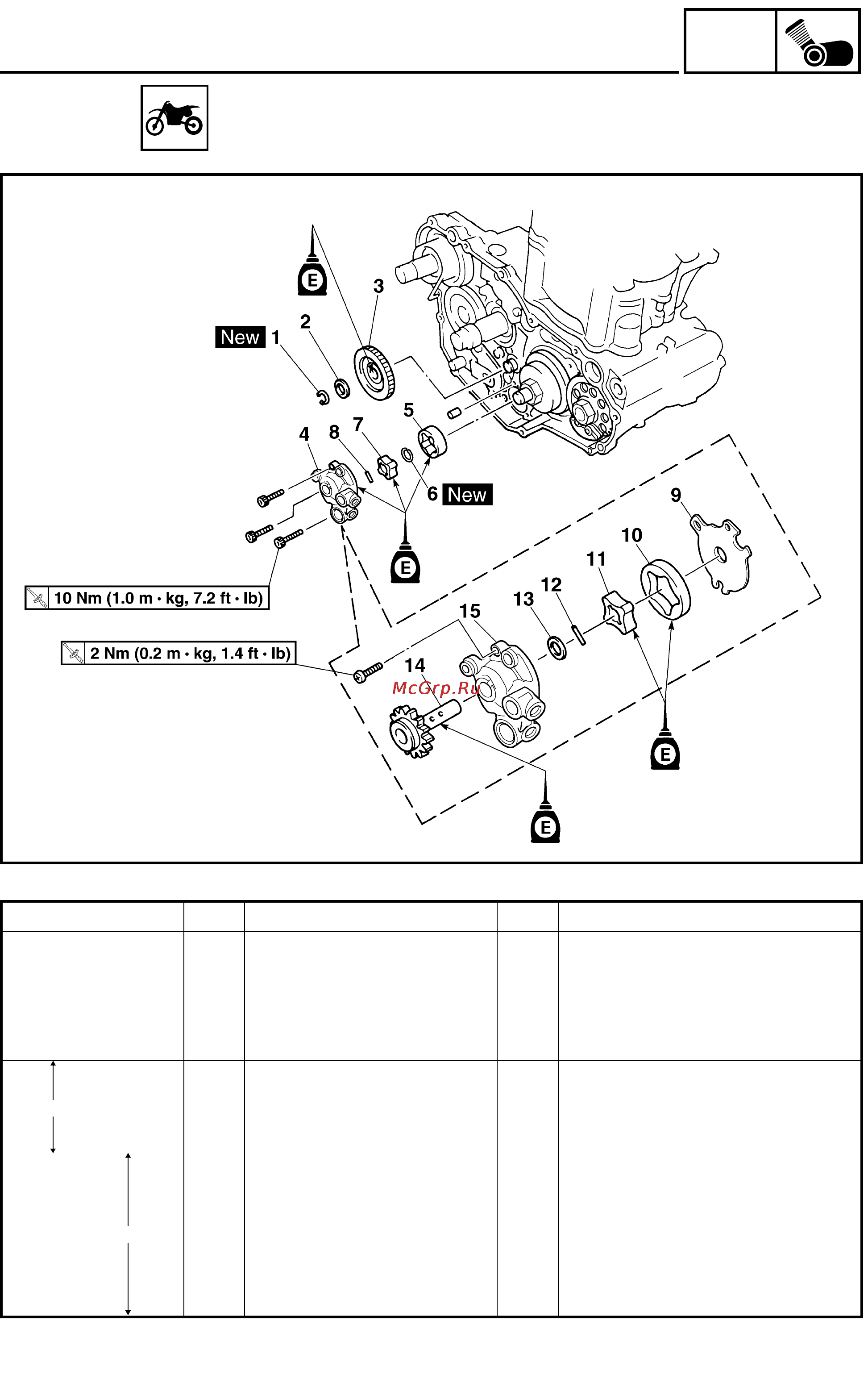

OIL PUMP
OIL PUMP
Extent of removal:
1
Oil pump removal
2
Oil pump disassembly
Extent of removal Order Part name Q’ty Remarks
OIL PUMP REMOVAL AND DIS-
ASSEMBLY
Preparation for removal Primary driven gear Refer to “CLUTCH” section.
Right crankcase cover Refer to “OIL FILTER ELEMENT,
WATER PUMP AND RIGHT CRANK-
CASE COVER” section.
1 Circlip 1
2 Washer 1
3 Oil pump drive gear 1
4 Oil pump assembly 1
5 Outer rotor 2 1
6 Circlip 1
7 Inner rotor 2 1
8 Dowel pin 1
9Oil pump cover 1
10 Outer rotor 1 1
11
Inner rotor 1
1
2
1
