5 - 24
CHAS
FRONT BRAKE AND REAR BRAKE

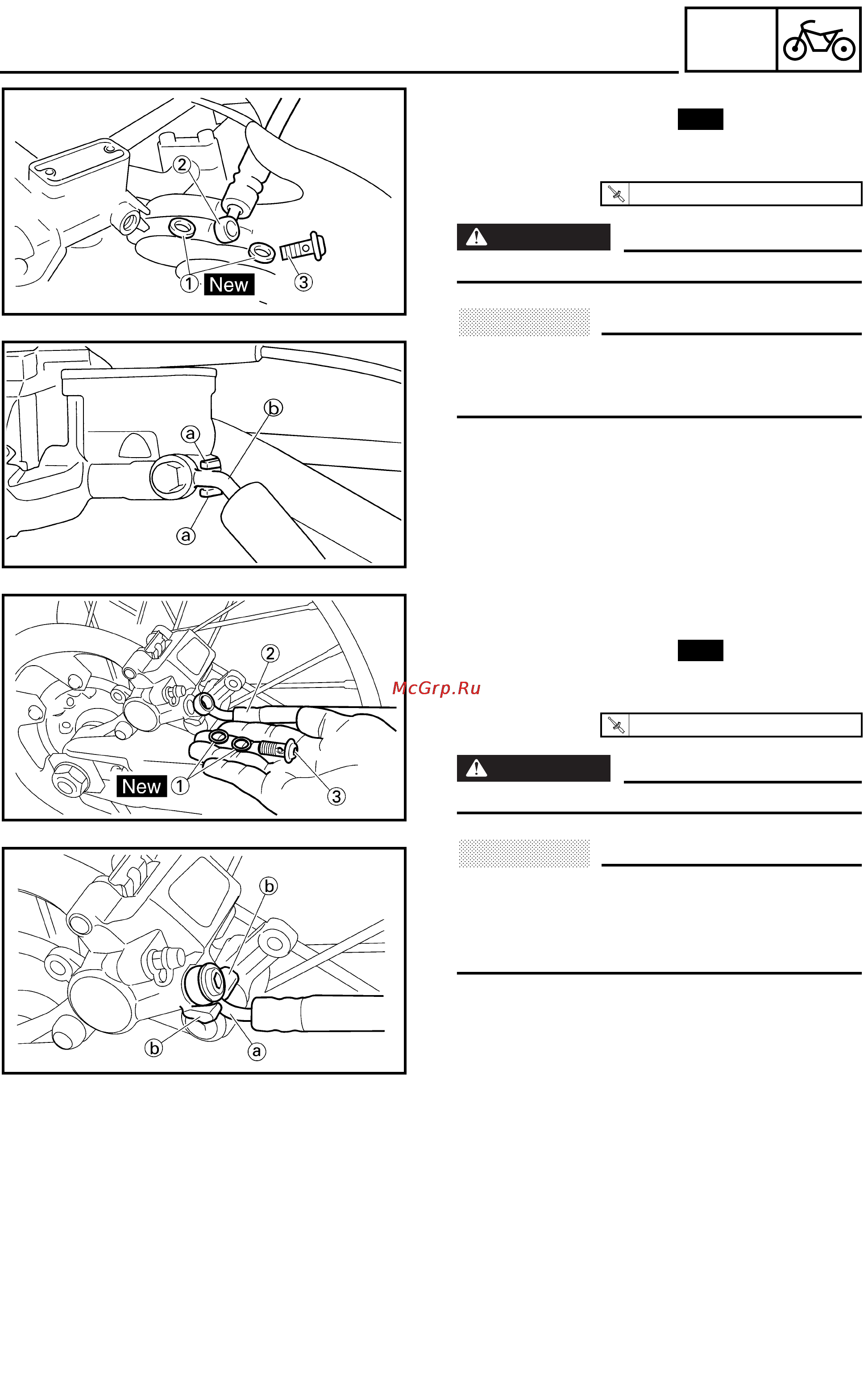

4. Install:
• Copper washer 1
• Brake hose 2
• Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that it contacts the
brake master cylinder projection
a
and
that its bent portion
b
faces downward.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
New
Rear brake hose
1. Install:
• Copper washer 1
• Brake hose 2
• Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion
a
directs as shown and lightly
touches the projection
b
on the brake cali-
per.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
New
